MONCHRUI FC610 Air Conditioner Digital Thermostat
Specifications
- Warranty: 3 years
- Output voltage: relay or analog output
- Sensor: NTC Sensor or build -in sensor
- Installation: Flush mounted
- Power Supply: 24V AC/DC
- Self-Consumption: <600W
- Load Current: <3A
- Protection: IP20
- Brand: MONCHRUI
Introduction
The FC610 Air Conditioner Digital Thermostat is a high-quality and user-friendly device designed to provide precise temperature control and convenience for your air conditioning system. With its digital display and intuitive features, this thermostat offers an efficient and comfortable cooling experience. The FC610 thermostat features a clear and easy-to-read digital display that shows the current temperature, settings, and other relevant information. The display provides a straightforward interface for adjusting temperature settings and navigating through the thermostat’s functions.
This digital thermostat offers precise temperature control, allowing you to set and maintain your desired cooling level with accuracy. You can easily adjust the temperature using the control buttons or touchpad on the thermostat. The responsive interface ensures quick and seamless temperature changes for optimal comfort. The FC610 Air Conditioner Digital Thermostat supports various cooling systems, including central air conditioning units and split air conditioners. It is compatible with both single-stage and multi-stage cooling systems, making it versatile for different air conditioning setups. One of the key features of the FC610 thermostat is its programmable scheduling capabilities. You can create customized temperature schedules based on your daily routine and preferences. This allows the thermostat to automatically adjust the temperature at different times of the day or week, helping you save energy and maintain a comfortable environment. The FC610 thermostat often includes advanced features such as temperature calibration, filter change reminders, and energy-saving modes. These features enhance the functionality and efficiency of the thermostat, providing convenience and cost savings.
What’s In the Box?
- FC610 Air Conditioner Digital Thermostat
- Mounting Bracket
- Mounting Screws
- Wire Labels
- User Manual

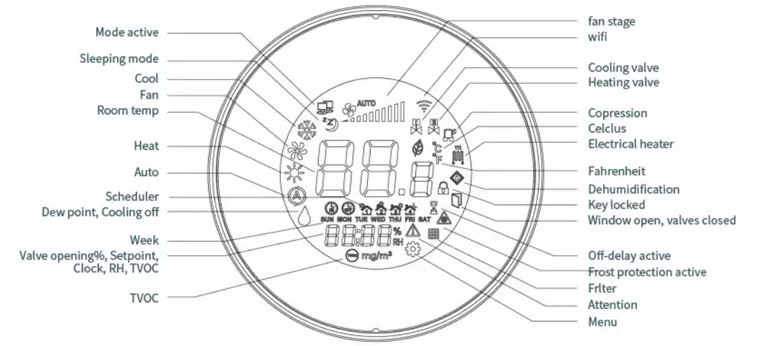

Description

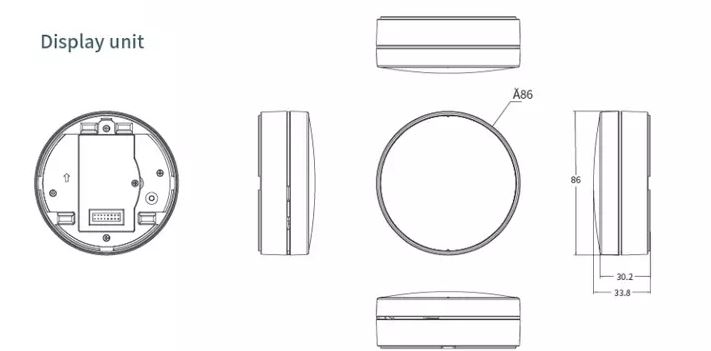

Dimensions

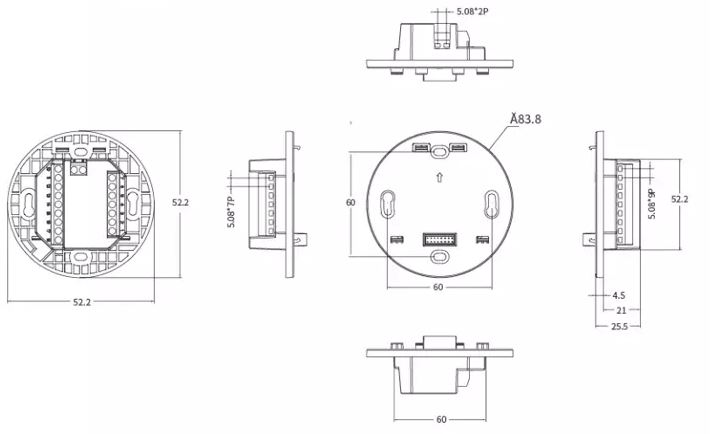

Base Plate
Wiring Drawings
FC610 D03RA002V 2-pipe fan coil change-over wiring diagram:
- NTCIOK: external temperature sensor
- ESI/OCC: window sensor/room card sensor
Note
Clamp 12&13&14 is dry contact.

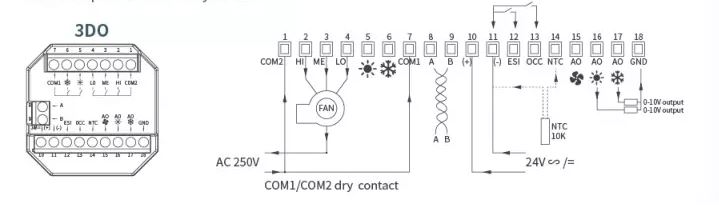

FC610 D03RAO2V 4-pipe fan coil wiring diagram
- NTC1OK: external temperature sensor
- ESI/OCC: window sensor/room card sensor
Note
Clamps 12&13&14 are dry contact.
Features
The FC610 Air Conditioner Digital Thermostat offers a range of features that enhance its functionality and provide optimal control over your air conditioning system. Here are some common features of the FC610 thermostat:
- Digital Display: The thermostat features a clear and easy-to-read digital display that shows the current temperature, settings, and other relevant information. This allows for quick and convenient temperature monitoring and adjustment.
- Precise Temperature Control: The FC610 thermostat provides precise temperature control, allowing you to set and maintain your desired cooling level with accuracy. This ensures a comfortable indoor environment tailored to your preferences.
- Programmable Scheduling: With programmable scheduling capabilities, you can create customized temperature schedules based on your daily routine. This feature allows the thermostat to automatically adjust the temperature at different times of the day or week, optimizing energy efficiency and comfort.
- Compatibility: The FC610 thermostat is compatible with various air conditioning systems, including central air conditioning units and split air conditioners. It can work with both single-stage and multi-stage cooling systems, making it versatile for different setups.
- Energy-Saving Modes: Some models of the FC610 thermostat offer energy-saving modes, such as eco mode or vacation mode. These modes help reduce energy consumption and save on utility bills by adjusting the temperature settings when you are away or during times of lower occupancy.
- Temperature Calibration: The thermostat may feature temperature calibration, allowing you to adjust the temperature readings to align with your comfort preferences. This ensures that the displayed temperature corresponds accurately to the actual room temperature.
- Filter Change Reminders: To maintain the air conditioning system’s efficiency, the FC610 thermostat may have a filter change reminder feature. It will prompt you to replace the air filter at regular intervals to ensure clean air circulation and optimal performance.
- Fan Control: Some models of the FC610 thermostat offer fan control options. You can adjust the fan settings, such as turning it on or setting it to auto mode, depending on your cooling preferences and airflow requirements.
- Backlit Display: The thermostat may have a backlit display, allowing for easy visibility and operation even in low-light conditions. This feature ensures that you can read and adjust the thermostat settings conveniently at any time.
- User-Friendly Interface: The FC610 thermostat typically features a user-friendly interface with intuitive controls. This makes it easy to navigate through the settings, adjust the temperature, and access various features without any confusion.
Frequently Asked Questions
Q: Is the FC610 Air Conditioner Digital Thermostat compatible with my air conditioning system?
A: The FC610 thermostat is designed to be compatible with various air conditioning systems, including central air conditioning units and split air conditioners. It is often compatible with both single-stage and multi-stage cooling systems. However, it is always recommended to check the product specifications or consult with the manufacturer to ensure compatibility with your specific air conditioning system.
Q: Can I program temperature schedules with the FC610 thermostat?
A: Yes, the FC610 Air Conditioner Digital Thermostat usually offers programmable scheduling capabilities. This feature allows you to set customized temperature schedules based on your daily routines. You can create presets for different times of the day or week, enabling the thermostat to automatically adjust the temperature settings accordingly.
Q: Does the FC610 thermostat support WIFI connectivity and remote control?
A: The FC610 thermostat models may or may not have WIFI connectivity and remote control capabilities. Some versions may offer WIFI connectivity, allowing you to control and monitor the thermostat remotely using a companion app on your smartphone or tablet. Check the product specifications or user manual to see if WIFI connectivity is included in the specific model you have or are interested in.
Q: How do I install the FC610 thermostat?
A: The installation process for the FC610 Air Conditioner Digital Thermostat may vary depending on the specific model and your air conditioning system. It is generally recommended to hire a professional HVAC technician or an electrician for proper installation to ensure safety and correct wiring connections. However, if you are familiar with electrical work and HVAC systems, you can refer to the provided user manual for step-by-step installation instructions.
Q: Does the FC610 thermostat have a battery backup?
A: Some models of the FC610 thermostat may include a battery backup feature. This ensures that the thermostat retains its settings and continues to operate during power outages. However, not all versions of the thermostat may have this feature. Check the product specifications or user manual to confirm if a battery backup is included in the specific model you have or are considering.
Q: Can I adjust the temperature calibration on the FC610 thermostat?
A: Yes, certain versions of the FC610 Air Conditioner Digital Thermostat offer temperature calibration functionality. This allows you to adjust the temperature readings to align with your comfort preferences. Consult the user manual or product specifications to determine if this feature is available in the specific model you have or are interested in.
MONCHRUI FC610 Air Conditioner Digital Thermostat User Manual
