Momit Smart Thermostat Data Sheet

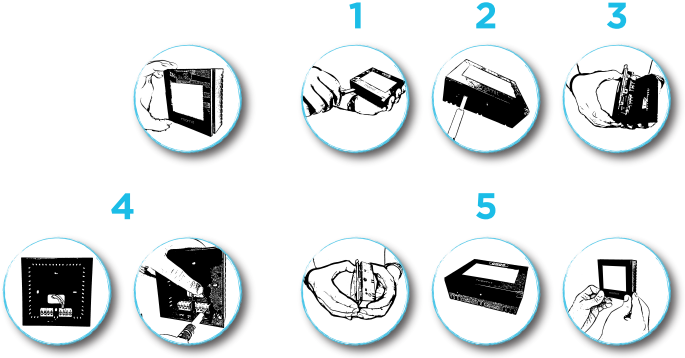

Steps
- Open momit Smart Thermostat by inserting the tip of a flat-head screwdriver in the openings at the bottom.
- Lightly push down to create a lever movement without forcing the electrical pins and remove the back of the case.
- Insert the installation wires through the central opening of the back of the case.
- By using a screwdriver, place the wires in the correct position. (Refer to the connection diagram).
- To close the case take the front of the device and place it on the back. Assemble the rest of the thermostat by applying a light pressure until it clicks together.

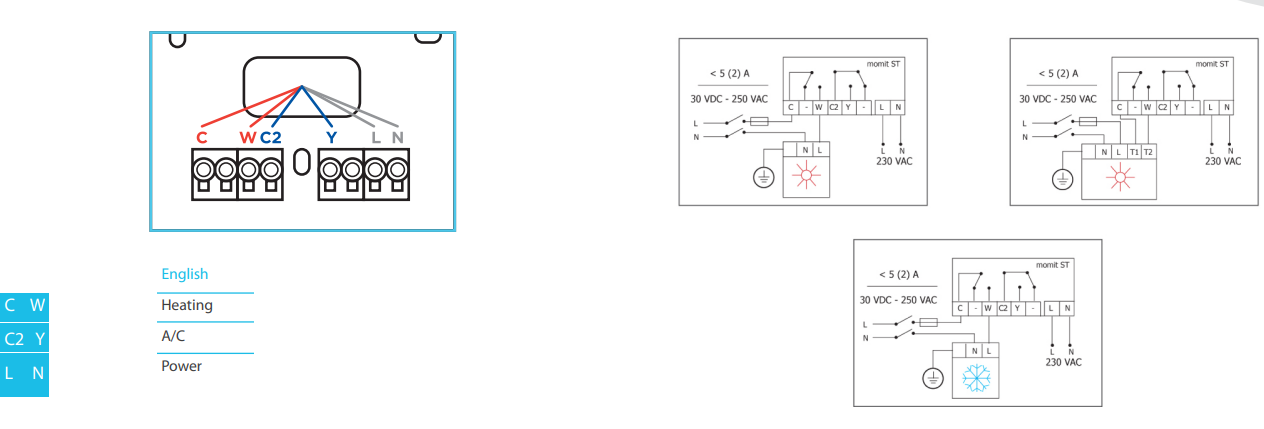

Wiring diagram
REFERENCE
DOWNLOAD MANUALS:
Momit Smart Thermostat Data Sheet
