Features

  •  Programmable/operatable by app
  •  Compatible with Amazon Alexa, Google Assistant and IFTTT
  •  Easy to install
  •  No display
  •  Surface mounting
  •  Weekly program 4 switching times per day (App)
  •  External sensor or room sensor
  •  Open window detection only with room sensor

Technical data

  •  Operating voltage: 230V/AC
  •  Switching capacity: 2000W/8A (resistive load) / 1000W/4A (capacitive load)
  •  Switching contact: NO / NC (potential-free contact)
  •  Backup memory: EEPROM
  •  WLAN frequency: 2.4Ghz, Wi-Fi 802.11 b/g/n
  •  WLAN Security: WPA2 personal (TKIP and AES)
  •  Temperature sensor: internal or external sensor
  •  Open window detection: yes only with room sensor, not with connected external sensor
  •  Temperature setting: 5°C – 35°C (0.5°C steps)
  •  Operating temperature: +5 ~ 65°C
  •  Accuracy: +/- 0.5°C (+/- 1°F)
  •  Dimensions: 86mm x 86mm x 30mm
  •  Colour: White
  •  IP protection class: 21 (sensor IP44).
  •  Certification: CE, ROHS, WEEE

Important information before commissioning:

  •  Please read the complete instructions before starting to install the thermostat.
  •  The thermostat must be installed by a qualified person.
  • – Only use the thermostat as described in this manual.
  •  Always disconnect the power supply during installation work.

Safety notes:

  • When handling products which are supplied with electrical voltage, the applicable VDE regulations must be observed, in particular VDE 0100, VDE 0550/0551, VDE 0700, VDE 0711 and VDE 0860.
  •  Before opening the device, make sure that it is de-energized.
  •  Tools may only be used on the device if it has been ensured that it is disconnected from the supply voltage and that any residual electrical charges stored in components have been discharged beforehand.
  •  Live cables or lines to which the device is connected must always be checked for insulation faults or breakages.
  •  If a fault is detected in the supply line, the device must be taken out of operation immediately until the defective line has been replaced.
  • If these instructions is not clearly state for non-commercial end users in regard to, which electrical characteristic values apply to the device, how external wiring is to be carried out, or which external components or accessories may be connected and what connected loads
  • these external components may have, a specialist must always be requested for information. Before commissioning the device, check whether it is suitable for the planned application!
  • In case of doubt, it is absolutely necessary to consult experts or the manufacturers of the modules used! Please note that operating and connection errors are beyond our control. We assume no liability for any damage resulting therefrom.

Description of Device keys and LEDs

  • Pairing key for pairing with the WLAN via the Tuya app.
  •  On/Off button to switch thermostat completely off or on.
  •  Status LED lights up if the load is switched on.
  •  Status LED lights up if the thermostat is switched on.MI-HEAT- 1027- PROGRAMMABLE -THERMOSTAT- 1

Connecting the thermostat:
The Optima W Basic can be used for various applications, as the thermostat has a voltage-free (potential-free) output! The external sensor is used for temperature measurement e.g. in the floor in combination with an electric underfloor heating systemMI-HEAT- 1027- PROGRAMMABLE -THERMOSTAT- 2

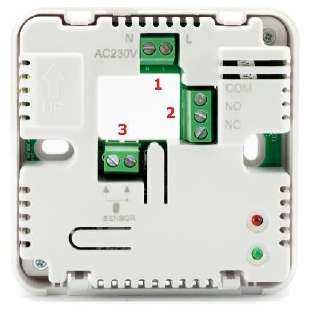

Description Terminals

  •  Input terminal for the 230V/AC supply voltage of the thermostat
  •  Output terminal for connecting the load (potential-free), for connection options, see “Connection of the thermostat”.
  •  Input terminal to connect the external temperature sensorMI-HEAT- 1027- PROGRAMMABLE -THERMOSTAT- 3

App integration and programming:

In order to setup or program the thermostat via Smartphone App, the free TuyaSmart App must first be downloaded and installed from the respective App Store. Minimum Smartphone requirements: iOS9 or newer, Android 4.1 or newerMI-HEAT- 1027- PROGRAMMABLE -THERMOSTAT- 4

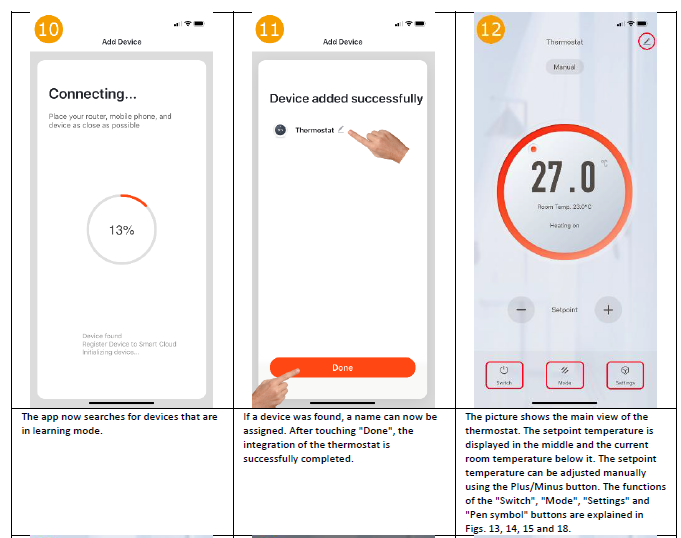

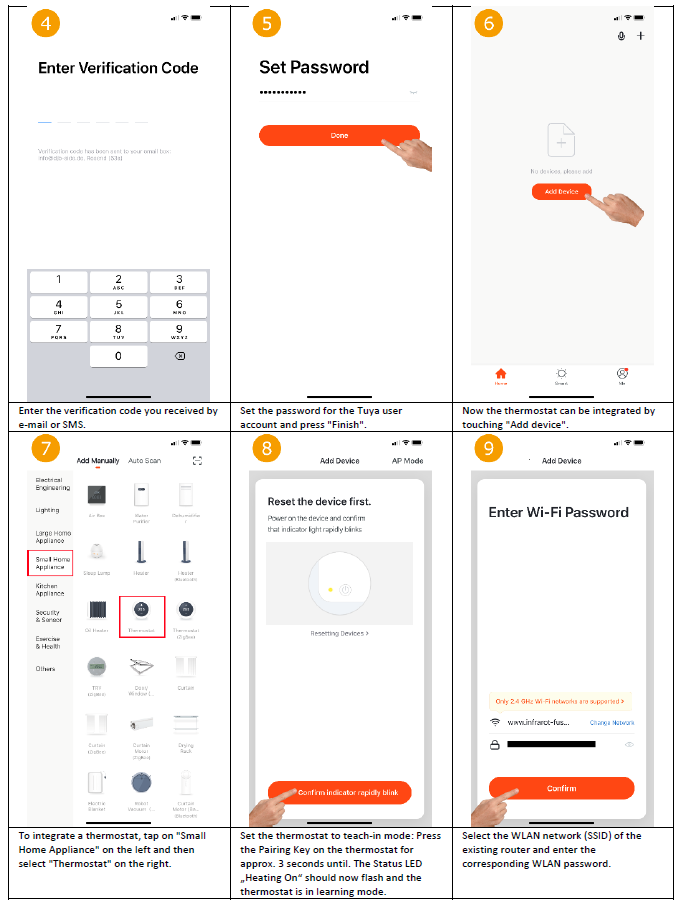

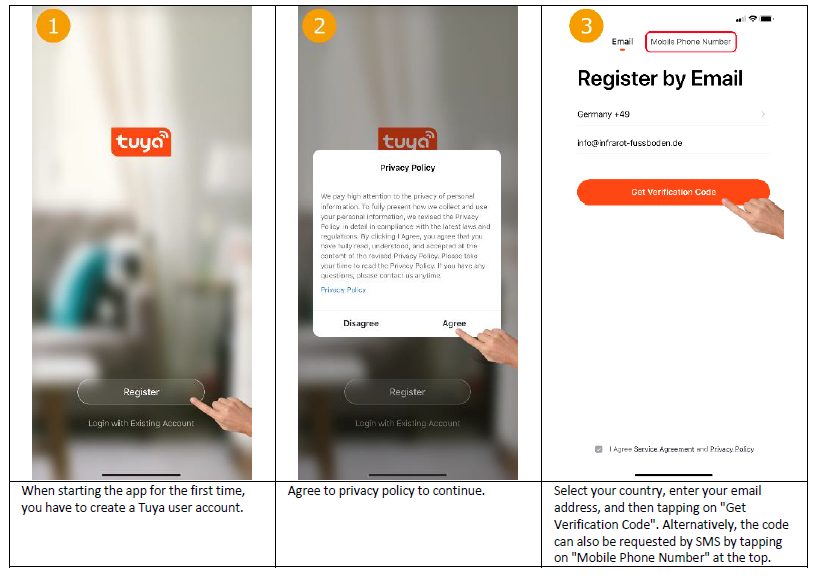

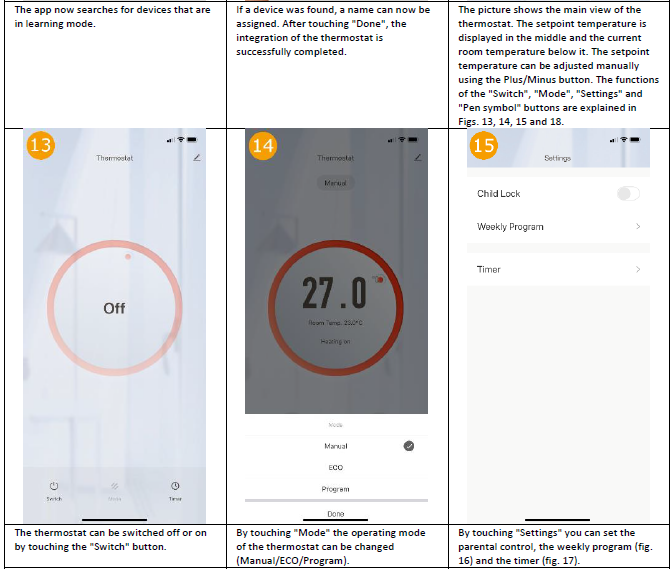

The following steps show the setup of the TuyaSmart App as well as the integration and programming of the thermostat. MI-HEAT- 1027- PROGRAMMABLE -THERMOSTAT- 5 MI-HEAT- 1027- PROGRAMMABLE -THERMOSTAT- 6 MI-HEAT- 1027- PROGRAMMABLE -THERMOSTAT- 7 MI-HEAT- 1027- PROGRAMMABLE -THERMOSTAT- 8

Standard values:
The thermostat operates internally with the following standard values. It is not possible to change these values.

Disposal notes
Do not dispose of this device in household waste! Electronic devices must be disposed of at the local collection points for electronic waste in accordance with the Waste Electrical and Electronic Equipment Directive.

Note on conformity
The CE mark is a free trade mark that is exclusively addressed to the authorities and does not contain any assurance of properties.

Documentation © 2019 Mi-Heat Heizsysteme GmbH
All rights reserved. No part of this manual may be reproduced in any form or by any means without the written permission of the publisher. This manual may contain typographical defects or misprints. We assume no liability for technical or printing errors and their consequences.
V1.0 (09/2019)
