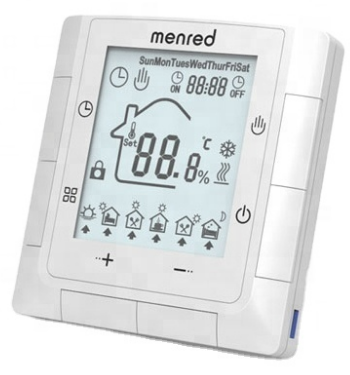

Menred Ls6.716 16A Digital Programmable Thermostat
SPECIFICATION
- Warranty: 3 years
- Material: Anti-flammable PC
- Application: room, Indoor Underfloor Heating
- Place of Origin: Zhejiang, China
- Model Number: LS6.716
- Voltage: AC 230V 50Hz
- Temperature range: 5-90℃
- Ambient temperature: -10-55℃
- Certifications: RoHS CE
- After-sale Service: Online technical support
- Design Style: Modern
- Brand Name: Menred
- Type: Floor Heating Systems, electric heating thermostat
- Consumption: <1W
- Limit temperature range: 16-60℃
- Protection class: IP20
- Function: Energy Efficient Heating
Introduction
The Menred LS6.716 is a programmable LCD digital thermostat designed for controlling heating and cooling systems in commercial and residential buildings. The thermostat is capable of controlling electrical heating systems, underfloor heating systems, and air conditioning systems. The LS6.716 features a large LCD display that makes it easy to read and program. The thermostat is designed to be easy to use, with simple controls that allow users to set and adjust the temperature and program schedules according to their specific needs. The thermostat can be programmed for up to 7 days, with up to 6 different temperature changes per day.
The thermostat also includes a number of advanced features, such as adaptive control, which allows the thermostat to learn the heating and cooling patterns of a building and adjust its programming accordingly. The LS6.716 also includes a range of temperature and time settings, as well as a variety of different operating modes, including comfort, economy, and frost protection. In addition, the LS6.716 is designed to be energy-efficient, with a range of features that help to reduce energy consumption and save money on heating and cooling bills. Overall, the Menred LS6.716 is a versatile and reliable digital thermostat that provides precise temperature control and programmable scheduling options for a wide range of heating and cooling applications.
WHAT IS IN THE BOX?
- Thermostat
- Screws
- 3m External Sensor
- User Manual
- Features
Products Description
As easy as it gets
From its ease of programming and controlling temperature to its clean design and do-it-yourself installation, the 1-Week thermostat offers simple reliable performance to maximize your home’s comfort
Easy operation and precise temperature control

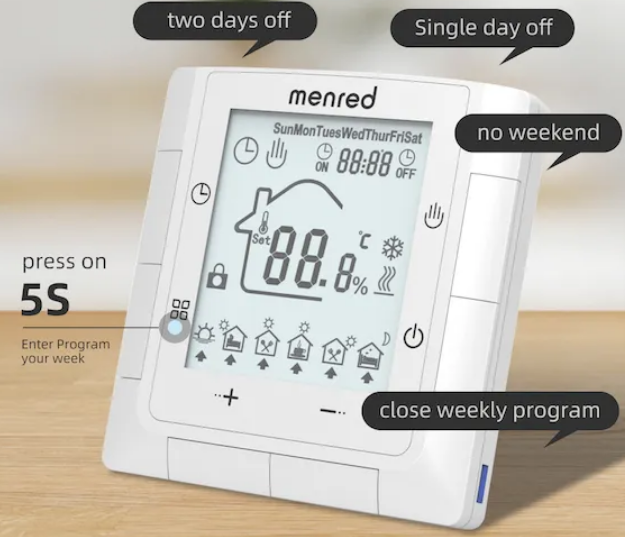

Programmable for one week it lets you customize your schedule with four options
Accurate temperature control
You home should always feel just right That’s why the 1-Week thermostat has a precise temperature control of +/ – 1°F This can ensure you get the performance you expect and the comfort you deserve
As seen on the screen
The display provides a seamless blend of function and style. It is backlit with a cool blue color and provides easy-to-read indoor temperature & humidity, hold settings, and time at a glance

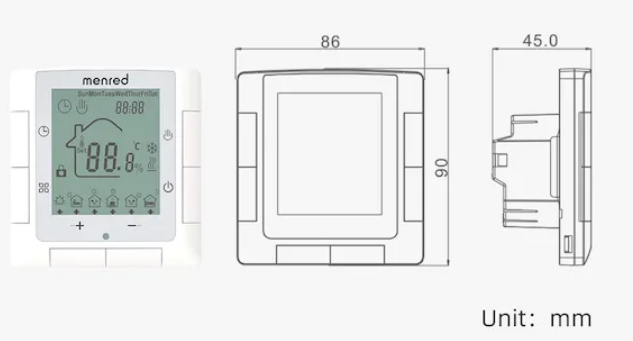

DIMENSION

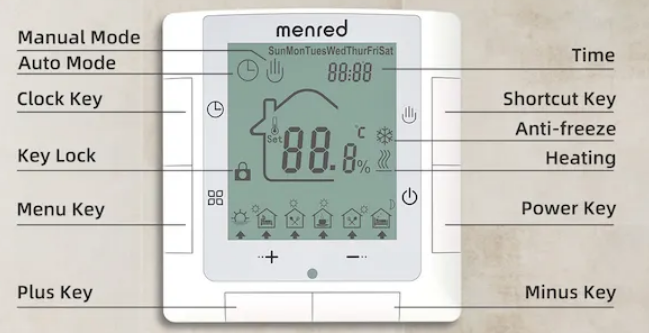

HOW TO USE
- Power on the thermostat by connecting it to a power source.
- Press the “Mode” button to select the desired mode (Heating, Cooling, or Automatic).
- Use the “+” and “-” buttons to set the desired temperature.
- Press the “Confirm” button to save the temperature setting.
- Use the “Timer” button to set the desired time for the thermostat to turn on or off.
- Press the “Confirm” button to save the timer setting.
- Use the “Child Lock” button to lock the buttons on the thermostat to prevent accidental changes.
- Use the “Reset” button to reset the thermostat to its default settings.
- The LCD screen will display the current temperature and the set temperature.
Technical Data
- Voltage: AC230V 50Hz
- Standby power consumption: < 1W
- Terminal Blocks: One terminal can be connected to 2*1.5mm? or 1*2.5mm? wire at most
- Temperature Range: 5~90°C
- Limit Temperature Range: 16~60°C
- Ambient Temperature Range: – 10~55°C
- Protection Class: IP20
HOW TO OPERATE
- Power on the thermostat by plugging it into a power outlet.
- Press the “MODE” button to select the operation mode. There are three modes available: “Manual”, “Program”, and “Holiday”.
- If you select “Manual” mode, you can use the “+” and “-” buttons to set the desired temperature.
- If you select “Program” mode, you can program different temperature settings for different times of the day. To program, press the “SET” button, and use the “+” and “-” buttons to set the temperature and time. Press the “SET” button again to confirm the setting and move on to the next programming step. Repeat this process until you have programmed all desired temperature settings.
- If you select “Holiday” mode, you can set a constant temperature for a period of time when you’re away from home. To program, press the “SET” button, and use the “+” and “-” buttons to set the desired temperature and duration of the holiday period. Press the “SET” button again to confirm the setting.
- To turn off the thermostat, press and hold the “POWER” button for 2 seconds until the display goes off.

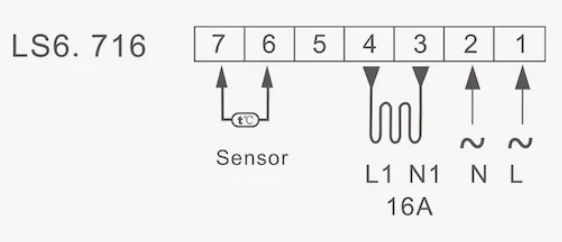

wiring Connection Diagram
Installation Notes
- Power must be off during installation
- Please connect the wires correctly according to the diagram
- Recommended installation height: 1.4m, or the same level as other wall switches
- Do not install the controller in a non-ventilated position. For example the corner, behind the door
- Do not install the controller in a place with strong airflow and near a cold or heat source
- Prevent small elements or water from entering the temperature controller as it would cause damage to the controller.
FAQS
Q: What is the voltage rating of the Menred Ls6.716 thermostat?
A: The thermostat is rated for 230V AC.
Q: What is the maximum current rating of the Menred Ls6.716 thermostat?
A: The thermostat can handle a maximum current of 16A.
Q: What is the temperature range that the Menred Ls6.716 thermostat can control?
A: The thermostat can control temperatures from 5°C to 35°C.
Q: Is the Menred Ls6.716 thermostat compatible with both heating and cooling systems?
A: No, the thermostat is only compatible with heating systems.
Q: Does the Menred Ls6.716 thermostat have a backlight on the LCD display?
A: Yes, the thermostat has a backlight that can be turned on and off.
Q: Can the Menred Ls6.716 thermostat be programmed to follow a specific schedule?
A: Yes, the thermostat has a programming function that allows you to set different temperatures for different times of the day.
Q: Does the Menred Ls6.716 thermostat have a manual override function?
A: Yes, the thermostat has a manual override function that allows you to manually adjust the temperature if needed.
Q: Is the Menred Ls6.716 thermostat easy to install?
A: Yes, the thermostat is designed to be easy to install and comes with a user manual to guide you through the process.
Q: Can the Menred Ls6.716 thermostat be used with underfloor heating systems?
A: Yes, the thermostat can be used with underfloor heating systems.
Q: Does the Menred Ls6.716 thermostat have any safety features?
A: Yes, the thermostat has a built-in temperature sensor that can detect if the temperature exceeds a certain threshold, and will automatically turn off the heating system to prevent overheating.
Q: What is detected by the Menred Ls6.716 thermostat?
A: A thermostat is a device that monitors temperature changes with the aim of keeping an enclosed space’s temperature essentially constant. The thermostat generates signals—typically electrical ones—when the temperature rises or falls above or below the intended level in a system that also includes relays, valves, switches, etc.
Q: What controls the thermostat, Menred Ls6.716?
A: Although some people believe that the thermostat is powered by the C wire, this isn’t exactly accurate. The heating and cooling wires, denoted by the letters Rc and Rh, respectively, are often the “hot” wires, or the cables that supply power to the appliance. They act as the source of the 24V power that enters the actual primary HVAC control board.
