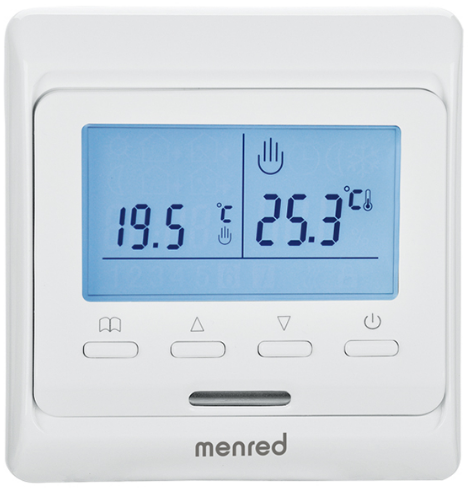

Menred E31 Series Digital Thermostat

Introduction

Heating thermostat with LCD screen has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating devices or on/off valve actuators in hydronic underfloor heating.

Application

For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…

Technical data

• Voltage
  • 220V/230V
• Power consumption
  • 2W
• Setting range
  • 5～35℃(Can adjust to 5-90℃)
• External limitation
  • 5…60℃(Factory setting:35℃)
• Sensor
  • NTC internal/external sensor
• Switch differential
  • 0.5-10℃adjustable(Factory setting:±1℃)
• Ambient temperature
  • -5～50℃
• Protective housing
  • IP20
• Housing material
  • Anti-flammable PC

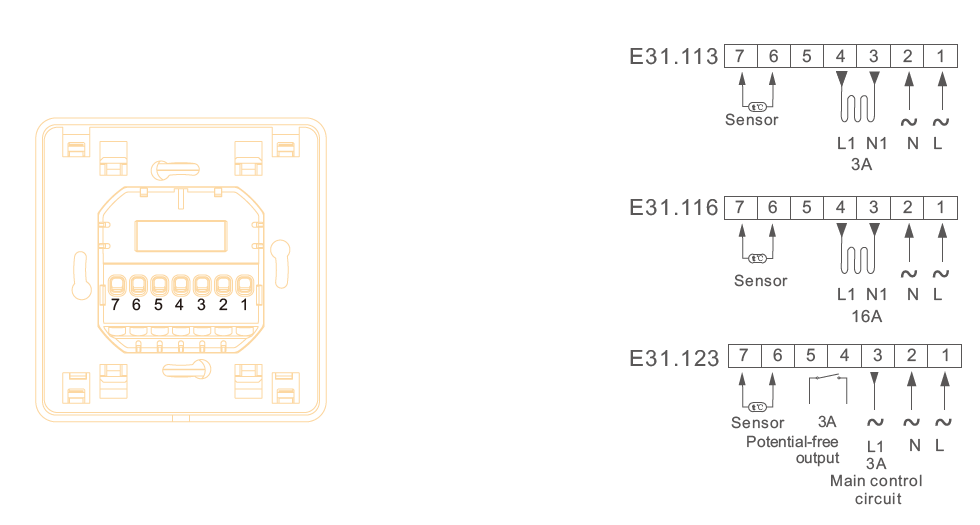

Wiring diagram

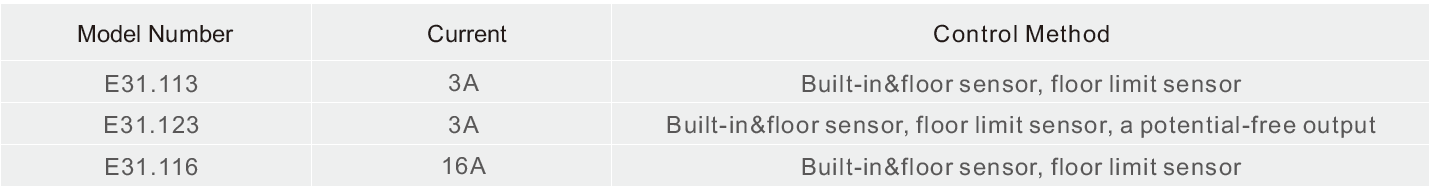

Selection table
