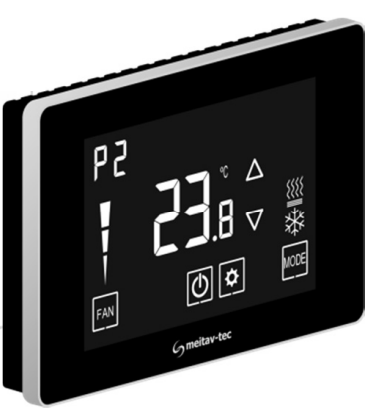

Meitay-tec MTS Touch Screen Thermostat

Description

Touchscreen thermostat with backlit display for various HVAC applications, 6 D/O, 2 A/O and 2 U/I

Optional configurations

• Vertical / Horizontal
• Humidity
• CO2
• Lights control Room panel, Flush mounted
• Black / White
• Programmable
• PIR (Occupancy)

Features & Benefits

• Stylish design, large sensitive touchscreen display
• Clear icons for the operation functions
• Easy configuration with DIP Switches and technician settings procedure
• Temperature readings from the thermostat or from an External sensor
  • I/O list:
    •  6 D/O – Maximum 3A each, 5A total
    • 2 A/O – 0-10V
    • 2 U/I – D/I or 0-10V input
    • 2 RS485 terminals (A/B)
• Touch, backlit display with adjustable dimming time and level
• Flush mount installation with standard GEWISS GW24403 / CARLON B114r boxes or similar
• Optional extention cable for wall mounting
• Optional IR receiver for remote control
• White or Black with optional colored frame
• ºC/ºF scale
• Filter counter and Alarm
• Freeze protection
• Economy mode + Sleep mode + Set point limits mode

Ordering codes

P/N Description

• MTS Horizontal panel, Black, 110-230VAC
• MTS24 Horizontal panel, Black, 24VAC
• MTS Horizontal panel, White, 110-230VAC
• MTS24 Horizontal panel, White, 24VAC
• MTS Horizontal panel, Black, 110-230VAC
• MTS24 Horizontal panel, Black, 24VAC
• MTS Horizontal panel, White, 110-230VAC
• MTS24 Horizontal panel, White, 24VAC

Options

• HU Includes Humisity sensor
• CO2 Includes CO2 sensor
• PROG Includes Weekly Programs option
• PIR Includes PIR occupancy sensor

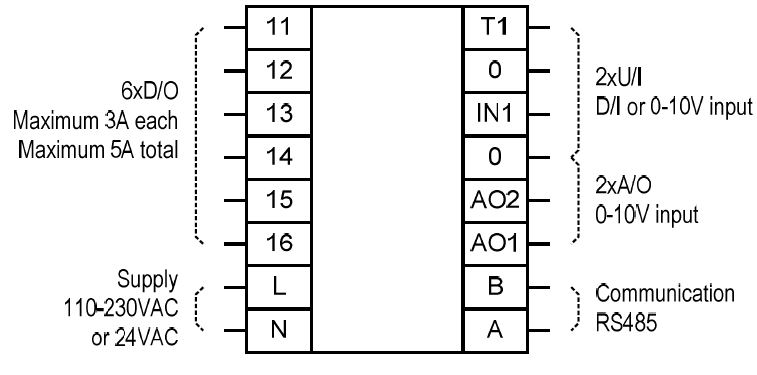

Wiring diagrams

Technical specifications

• Operating voltage 110-230VAC or 24VAC
• Temp. readings scale 10ºC÷30ºC/50ºF÷86ºF
• Temperature sensor type NTC 50K@25ºC/77ºF
• Operating temperature 0ºC÷50ºC / 80%RH
• Operating Humidity 32ºF÷122ºF / 80%RH
• Storage temp./Humidity -10ºC÷60ºC / 80%RH 14ºF÷140ºF / 80%RH
• Plastic type PC/ABS
• Flammability UL94V-0
• PIR occupancy sensor H90º/V20º, 5m/16ft
• CO2 sensor 0-5000ppm
• Humidity sensor 5-95%RH

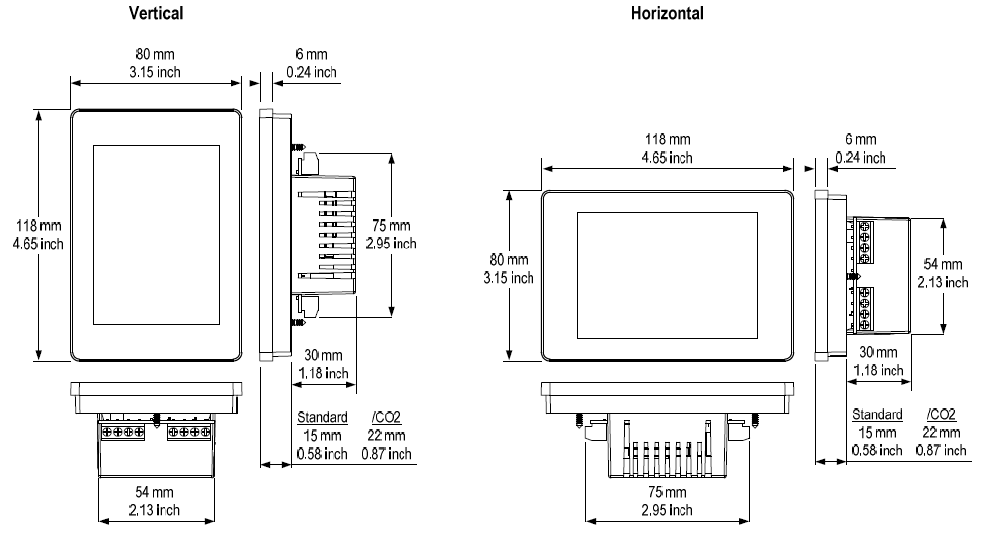

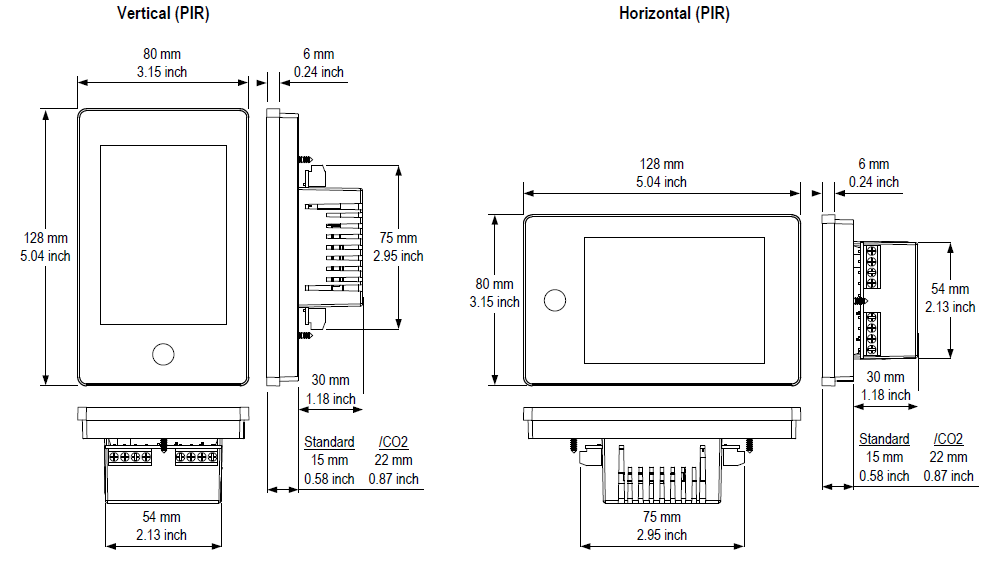

Dimensions

REFERENCE:
