Meitay-tec FMT-24-SUPER Non-Programmable Thermostat
Introduction
24VAC, Flush-mount thermostat, with up to 3 stages for Heat and 2 stages for Cool
The FMT24-SUPER thermostat is a flush- mount, stylish thermostat for commercial or residential applications. It has both Heat/Cool and Heat Pump configurations and multiple cooling and heating stages. It offers useful features for cold locations, such as Low Temperature Alarm and Emergency Heat.
Overall, the FMT24-SUPER is a sleek, attractive thermostat and a convenient solution for many HVAC systems.
Features
- Main input- 24VAC
- User Selectable applications:
- Heat/Cool or Heat Pump
- Electric Heat or Oil/Gas
- Heat Pump in Heat or Heat Pump in Cool
- C or F temp. scale display
- Offset – for temp. reading adjustment ±6°C/F
- Temp. limits for Cool & Heat – 10..30°C (50..88°F)
- Economy mode
- Emergency Heat – compressor stops working; only Heat Element will be used for Heating
- Low temp. alarm indication –when less than 6°C (45°F)
- With/without compressor delay
- IR remote control- option

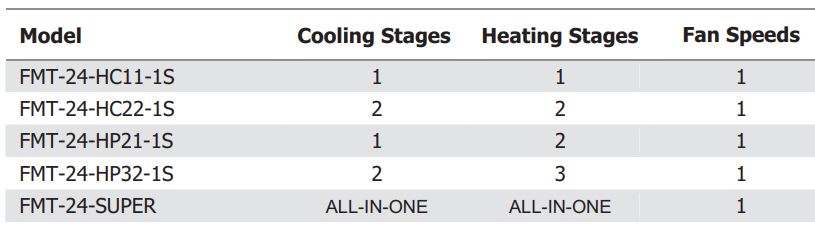

Models

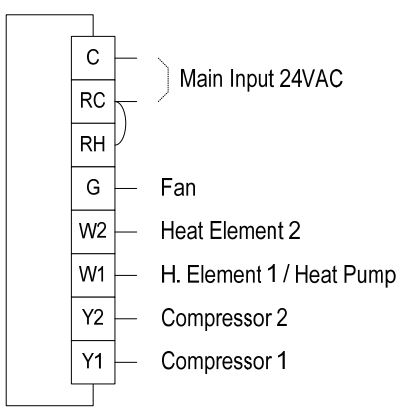

Wiring diagram
