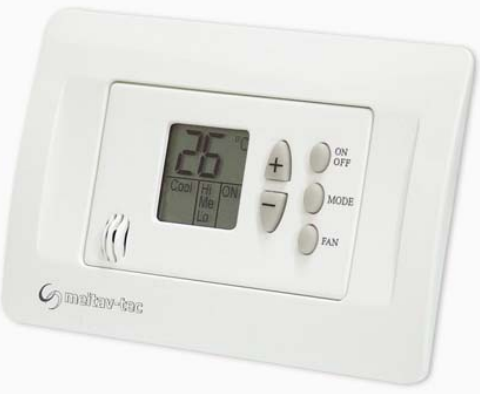

Meitay-tec FMH-24-C2-3S-IR Non-Programmable Thermostat

Meitay-tec- FMH-24-C2-3S-IR- Non-Programmable -Thermostat - PRO

INTRODUCTION

Flush Mount Thermostat, 24VAC, Cool only – two outputs for Cool, 3 fan speeds and IR option The FMH-24-C2-3S-IR is a fully featured, flush mount thermostat suitable for commercial or residential applications to control a large variety of HVAC systems. It is targeted for Cool and Fan Only applications and has 2 outputs for Cool and 3 fan speeds. The FMH-24-C2-3S-IR is a smart-looking thermostat with a large, easy-to-read LCD display and a simple user interface.

Features

  • Flush mount, 24VAC thermostat
  • Cool Only Thermostat, with 2 Cooling stages
  • Fan modes: Fan on / Auto fan / Auto speed
    • 2 outputs for Cool
    • 3 Fan Speeds
  • Auto fan – selectable
  • Auto speed – selectable
  • Remote Control – optional
  • Energy saving – operates up to 2 compressors, if needed by smart logic algorithms
  • 3-minute compressor delay (to protect the compressor)
  • Automatic temperature offset
  • Daily, digital Timer from Remote control – optimal when you are asleep or away

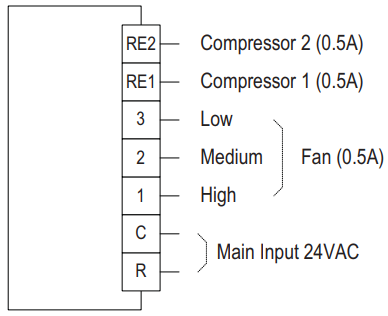

Wiring diagram

Meitay-tec- FMH-24-C2-3S-IR- Non-Programmable -Thermostat -1
