Meitay-tec ETN-24-SUPER-S Non-Programmable Thermostat
ETN-24-SUPER-SI
Wall-mount, 24VAC thermostat, Cool & Heat or Heat Pump- selectable, multiple heating & cooling stages, Auto-Fan selectable, IR option
The ETN-24-SUPER-SI thermostat is a fully featured, stylish thermostat, suitable for light commercial, residential or apartment applications.
It can control a large variety of HVAC systems with different configurations; both Cool & Heat or Heat Pump systems and has a selectable number of heating and cooling stages.
The ETN-24-SUPER-SI is an attractive, wall mount thermostat with a large, easy to read display.
Features
- 24VAC thermostat
- Selectable Configuration: Cool/Heat or Heat Pump
- Input – Normally open – Voltage free. To be used with door switch, window contact, etc. 2 options selectable:
Option A – thermostat will turn ‘OFF’
Option B – thermostat will change set point (Economy Mode) - Energy saving – cost efficient, environmental friendly thermostat
- Selectable display – ambient temperature or set temperature only
- Offset – for temperature reading adjustment
- Set point limits password protected
- External Temperature Sensor – Option
- Lock buttons – password protected
- Emergency heat selectable in heat pump mode
- IR option – for hand held remote control

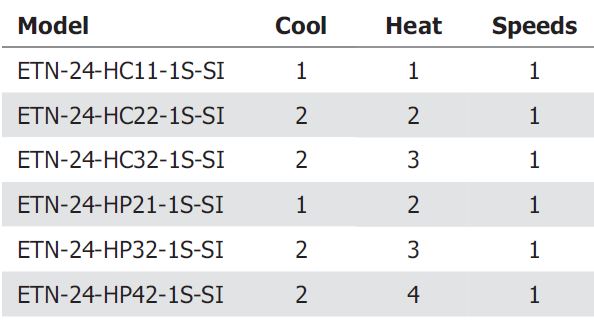

Models

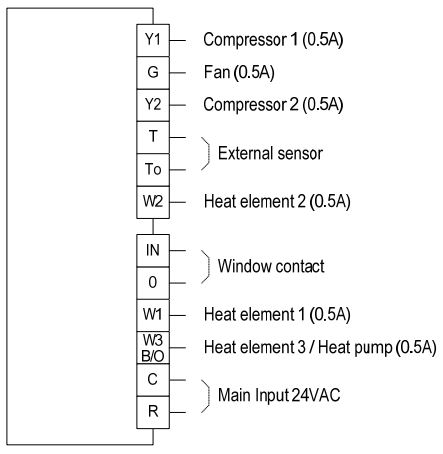

Wiring diagram
www.meitavtec.com
[email protected]
REFERENCE:
DOWNLOAD MANUALS:
Meitay-tec ETN-24-SUPER-S Non-Programmable Thermostat Product Specification Guide
OTHER MANUALS:
Meitay-tec ETN-24-SUPER-S Non-Programmable Thermostat Operating Instructions
Meitay-tec ETN-24-SUPER-S Non-Programmable Thermostat Product Specification Guide
