Meitay-tec ETN-24-SUPER-PROG Programmable Thermostat Product Specification Guide

Meitay-tec ETN-24-SUPER-PROG Programmable Thermostat

INTRODUCTION

24VAC, wall-mount thermostat with 5-1-1, USA-type weekly program built-in and multiple Cooling and Heating stages The ETN-24-Super-Prog-US is a stylish thermostat well suitable for commercial and residential applications. It can control a large variety of HVAC systems with either Heat/Cool or Heat Pump configurations and offers a selectable number of heating and cooling stages. Its 5-1-1 program, with 4 periods (Set Cool / Set Heat) per day, is easy to use and can provide 24- hour comfort as well as energy savings. Overall, the ETN-24-Super-US is an attractive, wall mount thermostat with a large, easy-to-read display.

Features

• Wall-mount, 24VAC thermostat
• DIP switch selectable configurations:
  • Heat/Cool or Heat Pump system
  • Electric or Oil/Gas heat system
  • Heat Pump in Cool or Heat
• 5-1-1 programmable – 4 periods per day, each with Set Heat and Set Cool
• Offset for temperature reading adjustment – +/-6°C
• Double Set points (Cool & Heat)
• Energy saving – cost-efficient, environmentally friendly thermostat
• Set point limits- 5…30°C – adjustable
• External sensor- option
•  Lock – Unlock thermostat buttons
• IR remote control- option
• °C temperature scale
• Internal or external sensor – DIP switch selectable
• 3 minutes compressor delay – DIP switch selectable
• Timer – AM/PM

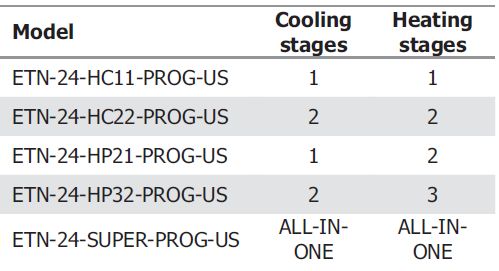

Models

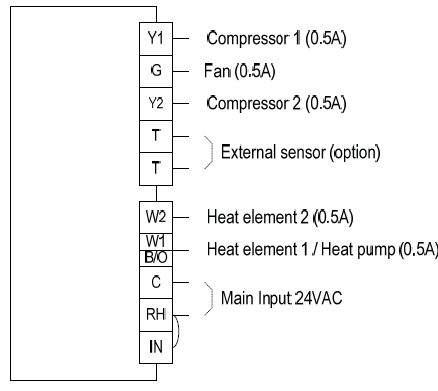

Wiring diagram
