Meitay-tec ERT209 Non-Programmable Thermostat Product Specification Guide

Meitay-tec ERT209 Non-Programmable Thermostat

General

The ERT209 is a fully featured thermostat suitable for Central Mini-Duct or Split-Unit AC systems. It has outputs for 2 compressors and 2 Heat Elements, H/C configuration, 1 fan speed, 12-hour timer and a remote control option. The ERT209 is an easy to use thermostat, with an abundance of features at a great value

Features

• Wall-mount, 230VAC thermostat
• 2 compressors for cooling, 2 heat elements for heating
• 1 fan speed
• 12-hour Timer – automatically turns on/off within 12-hours
• Remote Control – optional
• 3 minute compressor delay for protection
• Heat Off Fan delay
• Ambient temperature display – selectable
• Large & easy to read LCD display
• Auto Fan – selectable

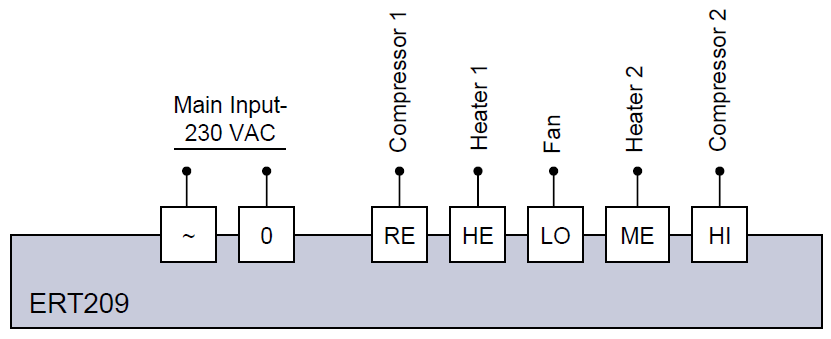

Electrical Diagram

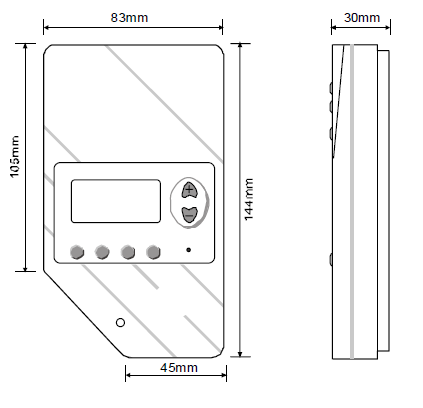

Dimensions

Specifications

• Temperature Range  10-30°C
• Weight 0.25 Kg
• Scale °C
• Color White
• Accuracy ±1°C
• Plastic PC/ABS
• Flammability UL94V-0
• Temperature Input Thermistor 50K@25°C

Accessories

• Part Number: Description
• RT03: IR Remote Control

Meitay-tec

• www.meitavtec.com
• Email: [email protected]
• Tel: +972 (3) 962 6462
