Meitay-tec ERT209 Non-Programmable Thermostat Operating Instructions

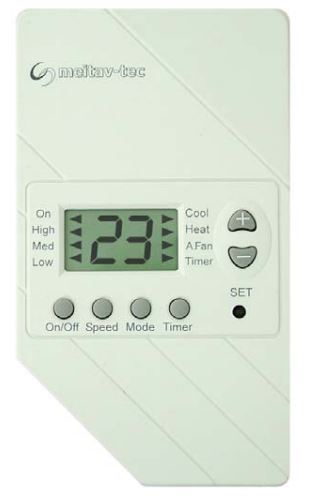

Meitay-tec ERT209 Non-Programmable Thermostat

ON\OFF

Press the On/Off button to activate/deactivate the thermostat.

Fan ON / Auto Fan

Press the Fan button to switch between:

• Fan ON – the fan will work continuously – an arrow will apear next to the words “Fan ON”.
• Auto Fan – The fan will stop when there is no demand for cooling or heating – an arrow will apear next to the words “A.Fan”.

Modes

Press the Mode button to switch between modes:

• Cool – an arrow will apear next to the word “Cool”.
• Heat – an arrow will apear next to the word “Heat”.
• Auto change-over – The thermostat will automatically switch between cooling and heating –according to the current temperature and the requested temperature – an arrow will apear next to the word “Auto”.
• Fan only – The arrows will disappear.

 Adjust Temperature
Use the SET buttons (“+” or “-“) to change the requested temperature.

Timer

Use the timer to turn the thermostat On or Off (opposite to current status) after a set number of hours (0-12 Hours).

• Press the Timer button – an arrow will apear next to the word “Timer”.
• Use the SET buttons (“+” or “-“) to adjust the number of hours.
• Press the Timer button again to return to normal display mode.
  The timer function will be cancelled in case of power failiure.

Temperature Limits

• Press and hold the Mode button until the set-point temperature limit for cooling will appear on display. An arrow will appear next to the word “Cool”.
• Use the SET buttons (“+” or “-“) to adjust the set-point temperature for cooling.
• Press the Mode button again – an arrow will appear next to the word “Heat”.
• Use the SET buttons (“+” or “-“) to adjust the set-point temperature for heating.
• Press the Mode button again to return to normal display.

Meitav-tec Ltd. (Contel group), 6 Sapir street, New Industrial Zone P.O.B 5221 Rishon-Lezion, 75150,
Israel Tel: +972-3-9626462,
Fax: +972-3-9626620,
Web: www.meitavtec.com
E-mail: [email protected]
File: ert209-operatingmanual.doc
June 11, 2007 | Rev. 2
