Meitay-tec BDIR-24-SUPER Programmable Thermostat Product Specification Guide

Meitay-tec BDIR-24-SUPER Programmable Thermostat

INTRODUCTION

Wall-mount, 24VAC thermostat, with 5-1-1 USA-type Weekly Program built-in, operable via Remote Control only. The BDIR-24-Super is a stylish thermostat, ideally suitable for commercial applications, as it is operable via IR remote control only. It can control a large variety of HVAC systems with either Heat/cooling or Heat Pump configurations and offers a selectable number of heating and cooling stages. Its 5-1-1 program, with 4 periods (Set Cool/Set Heat) per day, is easy to use and can provide 24-hour comfort as well as energy savings. Overall, the BDIR-24-SUPER-PROG is an attractive, wall-mount thermostat with a large, easy-to-read display.

Features

• Wall-mount, 24VAC thermostat
• DIP switch selectable configurations:
  • Heat/Cool or Heat Pump system
  • Electric or Oil/Gas heat system
  • Heat Pump in Cool or Heat
  • °F or °C temperature scales
• Energy saving – cost-efficient, environmentally friendly thermostat
• 5-1-1 programmable; 4 periods per day, each with Set Heat and Set Cool
• Operable via IR Remote Control only
• 2 set points (Cool & Heat)- for auto-change-over
• External Temperature Sensor- option

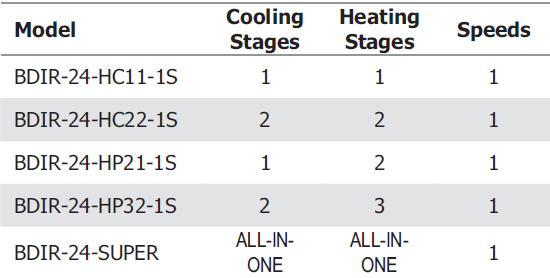

Models

Models Wiring diagram
