Mco-home IR2900 Z-WAVE Thermostat User Guide

Mco-home-LOGO

Mco-home IR2900 Z-WAVE Thermostat

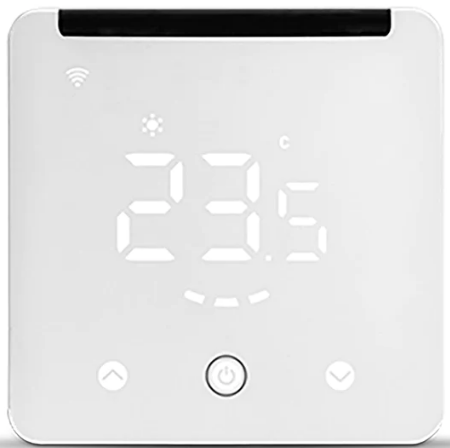

Mco-home-IR2900-Z-WAVE-Thermostat-PRODUCT

PRODUCT DEATAILS

IR2900 is a Z-Wave 800 series thermostat which is compliant to Z-Wave-to-IR bridge to control split air conditioner by receiving Z-Wave command and converting to Infrared command. IR2900 can control various brands and models of split air conditioner globally combination with the all-around built-in and cloud-stores IR database. With distinct display, you can intuitively read the room temperature with setting buttons to have a peace-in-mind smart home control experience.

Specification

  • Power Supply: rechargeable battery/ 5V USB Type-C
  • Z-Wave 800 series
  • Support S2 encryption
  • Temperature Range: 0~99.9℃(32-211.82℉)
  • Humidity Range: 0%~99%RH
  • Working Environment:-20~+60℃ <99%RH  (Non-condensation)
  • Dimension: 105*105*15.6 mm
  • Z-Wave Frequency: Operating frequency range, defined by the regulatory bodies (for Z-wave in Europe: 868.4 MHz, or other regions 908.4/916.0 MHz , 921.4 MHz)
  • Housing: PC+ABS
  • Hole pitch: 60.3mm
  • Installation: wall-mounted or tabletop placing

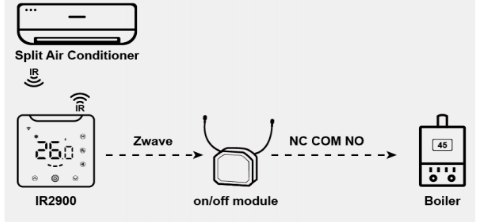

Scene Application Of IR2900

Mco-home-IR2900-Z-WAVE-Thermostat-FIG-1

APPLICATIONS

There are four scene applications for IR2900.

  • Scene application 1:
    Heating and cooling with IR control, under this application, IR2900 is able to directly associate with a Z-Wave on/off module to control a heating equipment like wall-mounted boiler as well as controlling an IR split air conditioner for cooling.
    (Note: it is able to associate with at most 5 pieces of Z-Wave on/off modules, the heating equipment can be replaced by a cooling equipment or a fan or other on/off equipment)
  • Scene application 2:
    Heating and cooling with association group control, under this application, IR command is not used for cooling and heating neither. IR2900 will work as a general wireless Z-Wave thermostat.
  • Scene application 3:
    Heating with IR control, cooling with association group control, under this application, IR command is used for heating only.
  • Scene application 4:
    Cooling with IR control, heating with association group control, under this application, IR command is used for cooling only.

Please download annex to get more information.

Reference

Download Manual:

Mco-home IR2900 Z-WAVE Thermostat User Guide
