MClimate RG2I Wireless Thermostat Product Specification Guide

MClimate LOGO

MClimate RG2I Wireless Thermostat

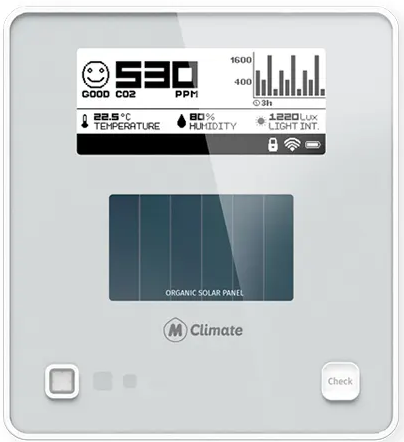

MClimate- RG2I -Wireless- Thermostat- PRO

Description

MClimate Wireless Thermostat is a stand-alone thermostat powered entirely by solar energy using an organic solar panel. The device features a 2.9″ e-ink screen, sensor for movement (PIR), temperature and humidity sensor, LUX sensor, and 3 buttons. The user can change the target temperature and see current indoor conditions. The device sends an uplink after any event as well as periodically. The data from the Wireless Thermostat can be used in any LoRaWAN-compatible system, incl. Building Management Systems to control different appliances in the building

Product Features

  • Solar-powered & battery-free
  • PIR sensor
  • LUX sensor
  • E-ink display
  • RGB LED
  • Temperature & humitity sensor
  • 3 buttons
  • Anti-theft bracket
  • FUOTA
  • Child lock
  • Sensing only mode (no target temp displayed)

Applications

  • Smart Buildings
  • Smart home
  • Residential buildings
  • Commercial buildings
  • Hotels

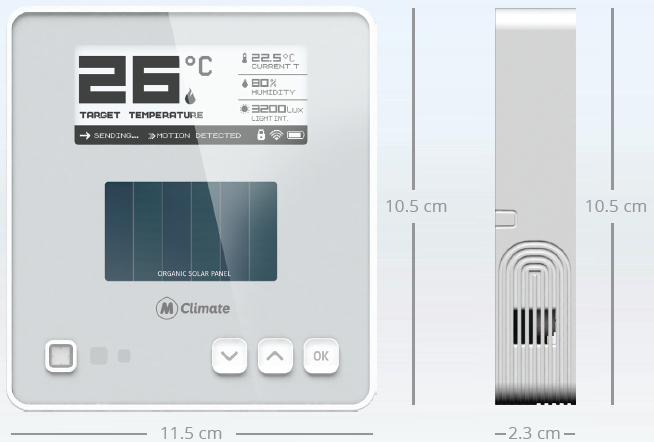

Dimension

MClimate- RG2I- Wireless- Thermostat- 1

Device specifications

Mechanical specifications

  • WEIGHT EXCL. BATTERIES 1 7 0 g r
  • DIMENSIONS 105mm X 115mm X 23mm
  • ENCLOSURE ABS, Stainless steel, tempered glass
  • MOUNTING OPTIONS Screws and dowels or double-sided tape; Anti-theft bracket with secure screw

Operating conditions

  • TEMPERATURE 0°- +50°C
  • HUMIDITY 0-80% RH (non-condensing)

Power supply

  • POWER SUPPLY Solar-powered Lithium-ion capacitor (LIC) AND/OR 4xAA 1.5VDC batteries AND/OR USB-C
  • OPERATING VOLTAGE 2.5-3.8VDC powered by Solar Panel, 2-3.6VDC powered by batteries, 5VDC powered from USB-C
  • EXPECTED BATTERY LIFE Indefinite powered by solar, 10+ years powered by AA batteries (depending on configuration and environment)
  • EXPECTED BATTERY LIFE IN THE DARK 2 1 d a y s

Radio/Wireless

  • WIRELESS TECHNOLOGY L o R a WAN® 1.0.3
  • WIRELESS SECURITY LoRaWAN® End-to-End encryption (AES-CTR)
  • LORAWAN DEVICE TYPE Class A End-device
  • SUPPORTED LORAWAN FEATURES O T A A , A D R , A daptive Channels setup
  • SUPPORTED LORАWAN REGIONS E U 8 6 3 – 8 7 0 ; Other LoRaWAN regional settings available upon request
  • LINK BUDGET 130dB
    RF TRANSMIT POWER 1 4dB

Sensors

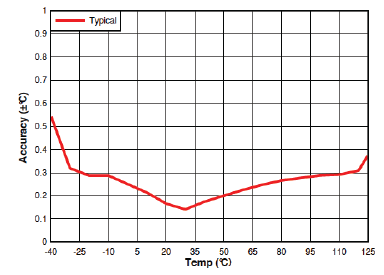

  • Temperature
  • RESOLUTION 0 ,1°C
  • ACCURACY ±0,2 – ±0,7°CMClimate- RG2I- Wireless- Thermostat- 2

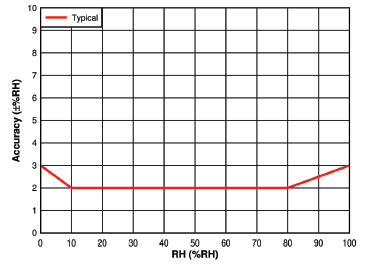

Humidity

  • RESOLUTION ±2
  • ACCURACY ±3% r.H.MClimate- RG2I- Wireless- Thermostat- 3

PIR
VIEW OF ANGLE X = 100° ; Y = 90°MClimate- RG2I- Wireless- Thermostat- 4

LUX

  • RESOLUTION 1 LUX
  • ACCURACY ±10%
  • RANGE 0 – 1 0 ,0 00 LUX

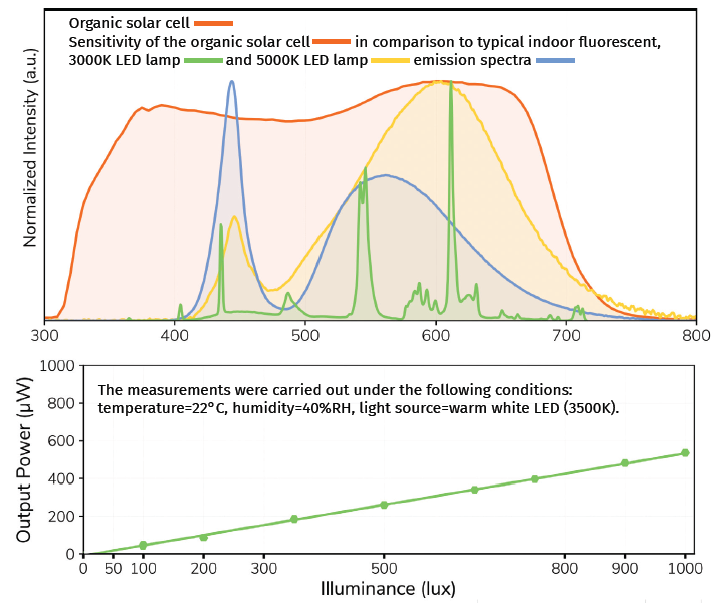

Organic Solar CellMClimate- RG2I- Wireless- Thermostat- 5

REFERENCE:

DOWNLOAD MANUALS:

MClimate RG2I Wireless Thermostat Product Specification Guide

OTHER MANUALS:

MClimate RG2I Wireless Thermostat User manual
