LUXPRO PSPLV512 Programmable Heating Thermostat
Product Highlights
- Requires 2-AA batteries
- Pre-programmed settings
- 5-year warranty
Product Features
- Easy installation
- Programmable 5/2-day
- Easy-view backlight
- Optional wall plate model# WP510
- Positive on/off switch
- Requires (2AA) Alkaline Batteries (included)
- UL approved
- Display option: Fahrenheit or celsius temperature
- Vacation hold
- Temporary temperature override
Installation
- 1-stage heat only; single or double pole 120/240 VAC systems
- Line voltage (120/240V)
- Hydronic (hot water) systems with motors up to 1/4 HP
- 120V (1,800W resistive)/240V (3,600W resistive) line voltage systems (without transformer)
- Max 15 amps
Not Compatible With
- Conventional 24 V heating and cooling systems
SPECIFICATIONS

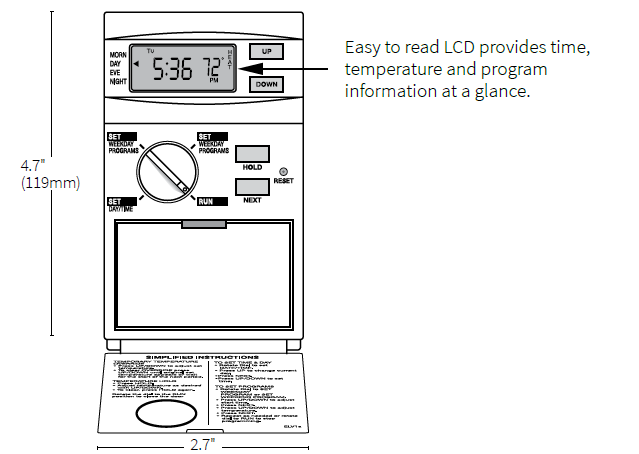

| Dimensions | 2.7″ (69mm) wide x 4.7″ (119mm) tall x 2.4″ (61mm) deep |
| Compatibile With | ■ 1 stage heat only; single or double pole 120/240 VAC systems
■ Line voltage (120/240V) ■ Hydronic (hot water) systems with motors up to 1/4 HP ■ 120V (1,800W resistive)/240V (3,600W resistive) line voltage systems (without transformer) ■ Max 15 amps |
| Not Compatible With | ■ Conventional 24 V heating and cooling systems |
| Packaging | ■ Master Carton: Master Carton: 5 units
■ UPC: 0 21079 06512 7 |
IMPORTANT: If not installed properly, this unit could cause a fire. For applications such as baseboard electric heat (resistive), the max load is 15 Amps, from a 20 Amp circuit breaker. For heat applications such as a hot water circulating pump (inductive), the maximum load is 1/4 HP @ 120Volts (this thermostat is not compatible with heating appliances that contain both an electric heating element (resistive) and a blower fan (inductive load) within the same device. This product should be installed by a licensed electrician.4747 South Broad Street I Building 101 – Suite 330 I Philadelphia, PA 19112 I P: 856.234.7905 I F: 856.234.7825
