LUXPRO PSP300 ELECTRONIC Thermostat
Product Highlights
- Programmable outlet thermostat allows control of window air conditioning units and portable space heaters.
- Temperature control adjustable.
- Plugs into normal 120-volt, 15-amp electrical outlet.
- ETL listed.
Product Features
- Designed for Window Air Conditioners and Portable Space Heaters – 120 Volt 15A Units
- Easy-to-Use Lux Speed Dial®
- 5/2 Programming – Weekdays and Weekends Can Be Programmed Differently
- Armchair Programmable
- Easy to Reprogram
- Separate Programs for Heating and Cooling
- Clean, Attractive Design
- Energy Star® Compliant
- ETL Approved
- Vertical Orientation
- Setting Range 45°F to 90°F (7°C to 32°C)
- F/C Selectable
- Temporary Temperature Override
- Manual Hold
- 12-Hour Clock Only
- User Temperature Calibration
- Adjustable Temperature Differential/Cycle Rate
- Mode Slide Switch
- Positive On/Off Switch
- 120VAC Outlet Powered
- 2 G13A Size 1.5V Alkaline Batteries Included (for the clock only)
- battery Free Memory Storage
- 5 Minute Compressor Delay
- Time and Temperature Alternate in Display
- On-Screen Low Battery Indicator
- Soft Touch Buttons
Installation
Compatible With
- All mechanically controlled: 120Volt, 15 Amp, 60 Hz, window air conditioning units, and portable space heaters.
- It is also compatible with electronically controlled: 120Volt, 15 Amp, 60 Hz, window air conditioning units that have an automatic restart of cooling after power resumption**.
Not Compatible With
- It cannot be used with electronically controlled space heaters, or window air conditioning units that do not have an automatic restart of cooling after power resumption**.
- In addition, it cannot be used with conventional 24 Volt heating/cooling systems, hydronic systems, or heat pumps.
SPECIFICATIONS

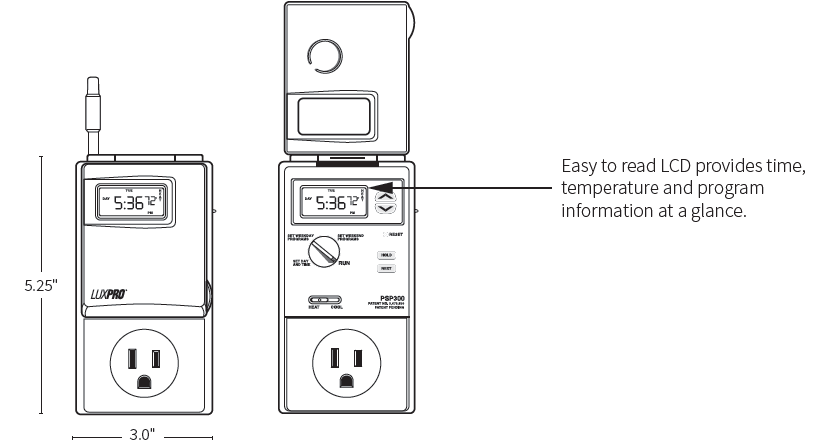

| Dimensions | 3.0″ (76mm) wide x 5.25″ (133mm) tall x 2.75″ (70mm) deep Unit Total / 1.80″ (48mm) depth – when plugged in. |
| Electrical Ratings | The unit is directly powered by the 120V outlet. (2) 1.5V G13 alkaline button cell batteries (included) are for maintaining the clock only. |
| Temperature Control Range | Temp control 45° F to 90° F (7° to 32° C) accuracy +- 1° over a range of 45° F to 90° F. |
| Environmental Limits | Moisture and Dust: meets IP20 Operating Humidity: 20% to 90% (non-condensing) Operating temperature: 14°F to 122°F (-10°C to 50°C) Storage temperature: -4°F to 140°F (-20°C to 60°C) Electrical Immunity: meets relevant EMI/EMC specifications |
| Compatible With | All mechanically controlled: 120Volt, 15 Amp, 60 Hz, window air conditioning units and portable space heaters. It is also compatible with electronically controlled: 120Volt, 15 Amp, 60 Hz, window air conditioning units that have an automatic restart of cooling after power resumption**. |
| Not Compatible With | It cannot be used with electronically controlled space heaters, or window air conditioning units that do not have automatic restart of cooling after power resumption**. In addition, it cannot be used with conventional 24 Volt heating/cooling systems, hydronic systems, or heat pumps. |
| Packaging | Master Carton: UPC: |
NOTE: Electronically controlled units can usually be identified by their digital readout. To learn whether a particular model offers automatic restart of cooling or heating after power resumption, refer to their manual or manufacturer.4747 South Broad Street I Building 101 Suite 330 I Philadelphia, PA 19112 I P: 856.234.7905 I F: 856.234.7825
REFERENCE
Download Manual
LUXPRO PSP300 ELECTRONIC Thermostat Product Specifications
