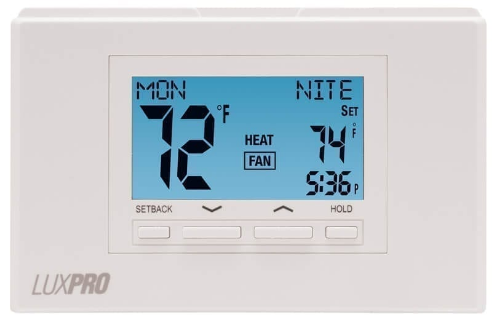

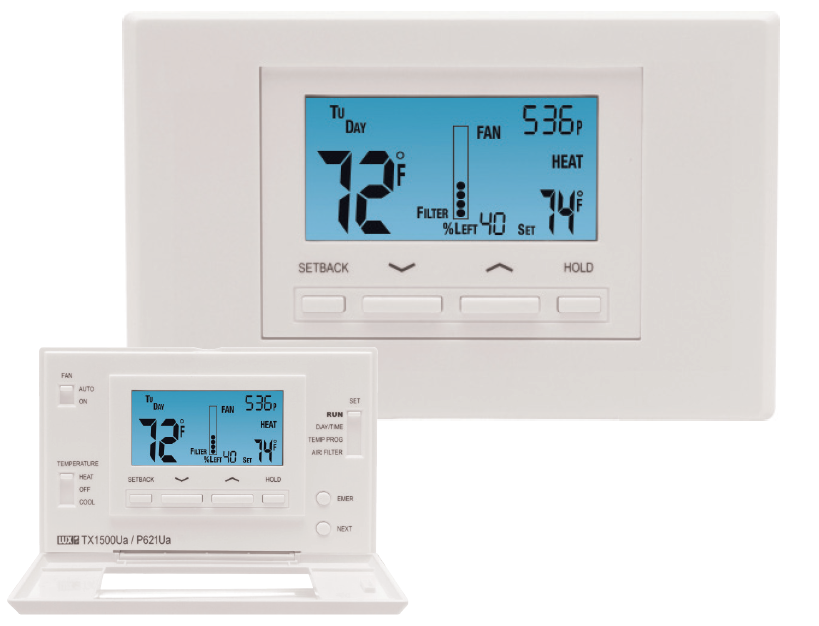

LUXPRO P621U Programmable / Non-Programmable Thermostat
Product Highlights
- All-In-One Programmable /Non-Programmable
- Universal heat pump & conventional heat / cool
- Dual power
- 5-year warranty
- Adjustable 2nd stage heat offset
Product Features
- Easy installation
- Program 5/1/1-day or nonprogrammable
- Easy-view backlight
- Optional wall plate model #WP567
- User option: 2 or 4 periods per day
- Keypad lock for unauthorized use
- Temporary override and manual hold
- Dual-powered (2AA) Alkaline Batteries (included)
- Temporary compressor protection bypass
- 5/2 minute selectable time delay for equipment protection
- User temperature calibration
- Display option: Fahrenheit or celsius temperature
- Adjustable heating and cooling limits
- Speed Slide® for easy programming
- Graphical air filter monitor
- Selectable smart recovery
- AM/PM clock or military time option
- Adjustable temperature differential/swing
Installation
Compatible With
- Universal compatibility for conventional heat & A/C
- Universal compatibility for heat pumps with up to 2- stage heat/1 stage cool (including AUX/EMERG heat)
- 2and 3-wire hydronic systems (hot water baseboard & radiator)
Gas Millivolt heaters (wall heaters/furnaces & gas fireplaces)
Not Compatible With
- Line voltage systems (120/240 VAC)
SPECIFICATIONS

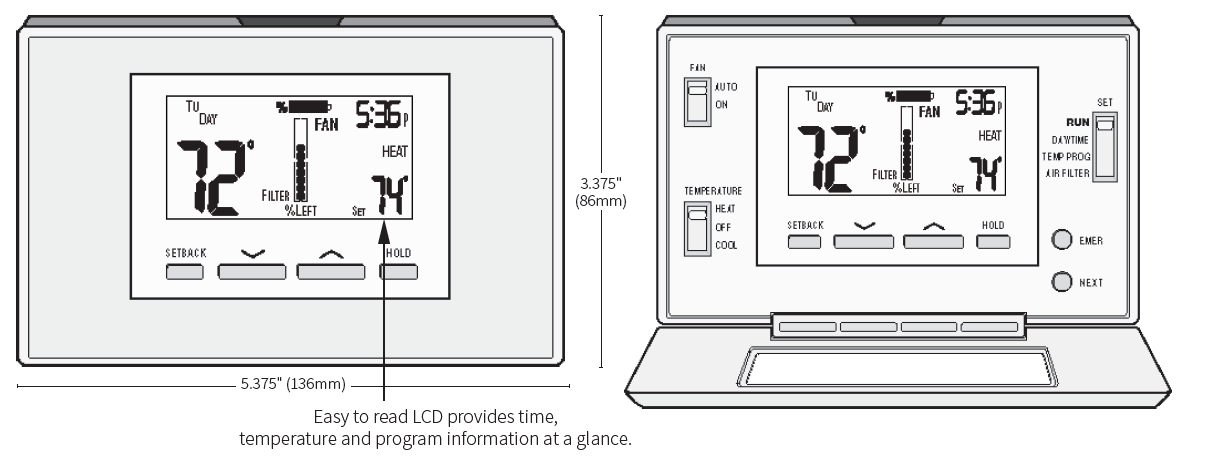

| Dimensions | 5.375″ (136mm) wide x 3.375″ (86mm) tall x 1.125″ (28mm) deep |
| Heat/Cool Terminals | O, B, G, Y, RC, RH, W1, A, W2, C (solid pins for 24v and Millivolt systems) |
| Electrical Ratings | 1.5 Amps per terminal at 24 volts |
| Temperature Control Range | ■ Temp control 45°F to 90°F (7°C to 32°C)
■ Display range: 23°F to 99°F (-5°C to 37°C) ■ Temperature Differential: adjustable from ±0.25°F to ±2.25°F Accuracy ±1°F over a range of 45°F to 90°F. |
| Environmental Limits | ■ Moisture and Dust: meets IP20
■ Operating Humidity: 20% to 90% (non-condensating) ■ Operating temperature: 14°F to 122°F (-10°C to 50°C) ■ Storage temperature: -4°F to 140°F (-20°C to 60°C) ■ Electrical Immunity: meets relevant EMI/EMC specifications |
| Compatible With | ■ Universal compatibility for conventional heat & A/C
■ Universal compatibility for heat pumps with up to 2-stage heat/ 1 stage cool (including AUX/EMERG heat) ■ 2 and 3-wire hydronic systems (hot water baseboard & radiator) ■ Gas Millivolt heaters (wall heaters/furnaces & gas fireplaces) |
| Not Compatible With | ■ Line voltage systems (120/240 VAC) |
| Packaging | ■ Master Carton: 10 units
■ UPC: 0 21079 12621 7 |
4747 South Broad Street I Building 101 – Suite 330 I Philadelphia, PA 19112 I P: 856.234.7905 I F: 856.234.782
