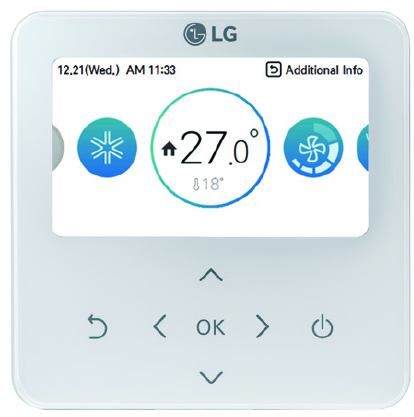

LG PREMTB100 Remote Controllers Programmable Thermostat

LG-PREMTB100-Remote-Controllers-Programmable-Thermostat-product

Electrical

  • Power Supply Powered from the indoor unit

Surrounding Conditions

  • Operating Temperature 32‐104 °F
  • Storage Temperature ‐4‐140 °F
  • Humidity 0‐90% (non‐condensing)

Unit Data

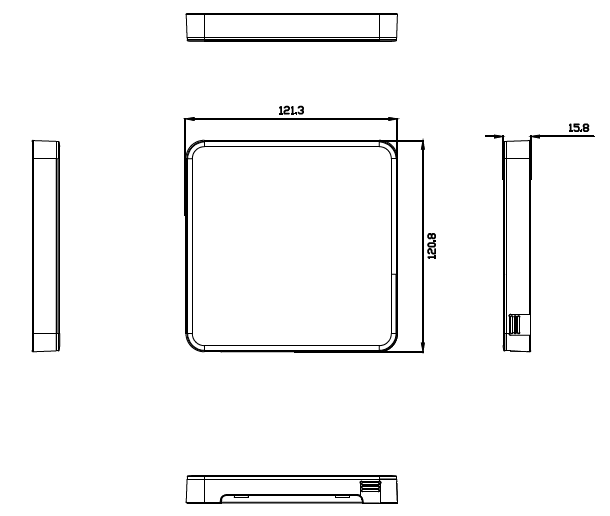

  • Dimensions 4‐3/4″ W x 4‐3/4″ H x 5/8″ D
  • Maximum Number of Indoor Units (per controller) 16
  • Maximum Number of Controllers (per group) 2

Standard Features

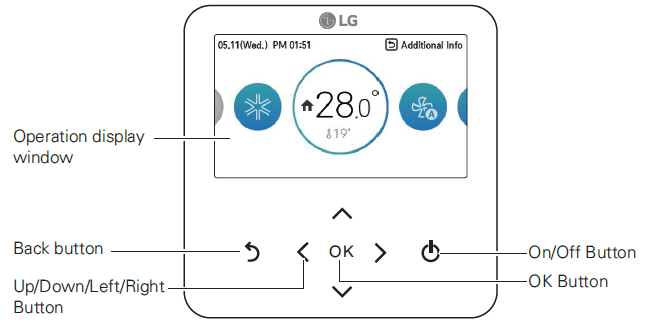

  • 4.3″ Color Display
  • Touch Button
  • Time Display
  • Operation on/off status LED

Basic Functions

  • Room temperature & Humidity sensing and display
  •  Operaon ‐ On/Off
  •  Mode ‐ Auto/Cool/Dry/Heat/Fan Only
  •  Venlaon mode (for venlator unit)
  •  Occupied cooling and heating temperature setpoint
  •  Unoccupied cooling and heating setback temperature setpoint
  •  Fan speed ‐ Auto/Low/Med/High
  •  Discharge vanes ‐ Auto/Swing/Fixed
  •  Controller lock function
  •  Static pressure installer setting
  •  Error code display during unit or system malfunction
  •  Auto restart on power failure

Advanced Functions

  • Time of day schedule, 5 events per day with control of occ/unlock, on/off, mode, setpoints, and fan speed
  • Two setpoint autochangeover (For heat recovery system)
  • Mini    mum difference between setpoints (0‐10°) adjustable deadband
  • Home leave function for temporary unoccupied status
  • Sub-function setting
  • Comfort level display
  • External equipment control via 1 Digital Output
  • Filter sign check and initialization
  • Time Limit Control (30min ~ 540min, 30 min unit)
  • Check Energy Target & Usage display
  • AP mode setting for LG Wi-Fi Modem installation

Optional Accessories (sold separately)

  • PZCWRC1 ‐ 33‐foot Extension Cable Assembly
  • PZCWRCG3 ‐ Group Control Cable Kit
  • PQWRHQOFDB ‐ Wireless Remote Controller

Connectivity
LG Communications 3-Wire (Red: 12V, Yellow: Signal, Black: GND)

Communications Cabling Specifications (V‐Net)

LG-PREMTB100-Remote-Controllers-Programmable-Thermostat-fig-1LG-PREMTB100-Remote-Controllers-Programmable-Thermostat-fig-1

  • Type Included
  • Size AWG 24‐3
  • Length 33 ft

AWG ‐ American Wire Gage

Notes
Available Functions/features may differ depending on the connected system. Communication cable can be extended to a maximum of 164 feet, between the controller and indoor unit, by using the Wired Remote Group Control Cable Assembly (PZCWRCG3) or Wired Remote Extension Cable (PZWRC1), a maximum of 4. Must follow installation instructions in the applicable LG installaon manual. Centralized controller (AC Smart/ACP series) and PDI (premium/standard) are required for the energy target display function continual product development, LG reserves the right to change specifications without notice. LG Electronics Canada, Inc., North York, ON. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp. /www.lgvrf.ca SB‐PREMTB100_LGStandardIIIWIredController‐10‐14 Page 1 of 1
