Legom M1 Non-Programmable Thermostat
Introduction
An innovative heating and cooling control system, the Legom M1 Non-Programmable Thermostat is made to provide accurate and effective temperature control in both home and commercial settings. The user-friendly interface and straightforward functioning of this thermostat make it simple for users to change the indoor climate to their preferred level of comfort. People that prefer manual control over their HVAC systems can use the Legom M1 Non-Programmable Thermostat. Because there are no programmable features, users must manually change the temperature settings as necessary. This makes it perfect for people who follow a certain daily schedule or who like to have complete control over their heating and cooling systems.
Key characteristics
- User-friendly design: The thermostat’s clear, easy-to-read display makes adjusting the temperature settings a breeze.
- Accurate temperature management: The Legom M1 provides accurate temperature detection and control to maintain a suitable indoor climate. It is compatible with the majority of furnaces, air conditioners, and heat pumps as well as other heating and cooling systems.
- Energy-efficient: The thermostat helps to optimize energy use and lower utility expenses by offering accurate temperature control.
- Users can manually change the temperature settings on the thermostat to suit their tastes because it lacks programmable functions.
- For those who value simplicity and manual management over their HVAC systems, the Legom M1 Non-Programmable Thermostat is a dependable and uncomplicated solution.
- It provides a practical option for preserving a comfortable indoor atmosphere with its user-friendly interface and accurate temperature adjustment.

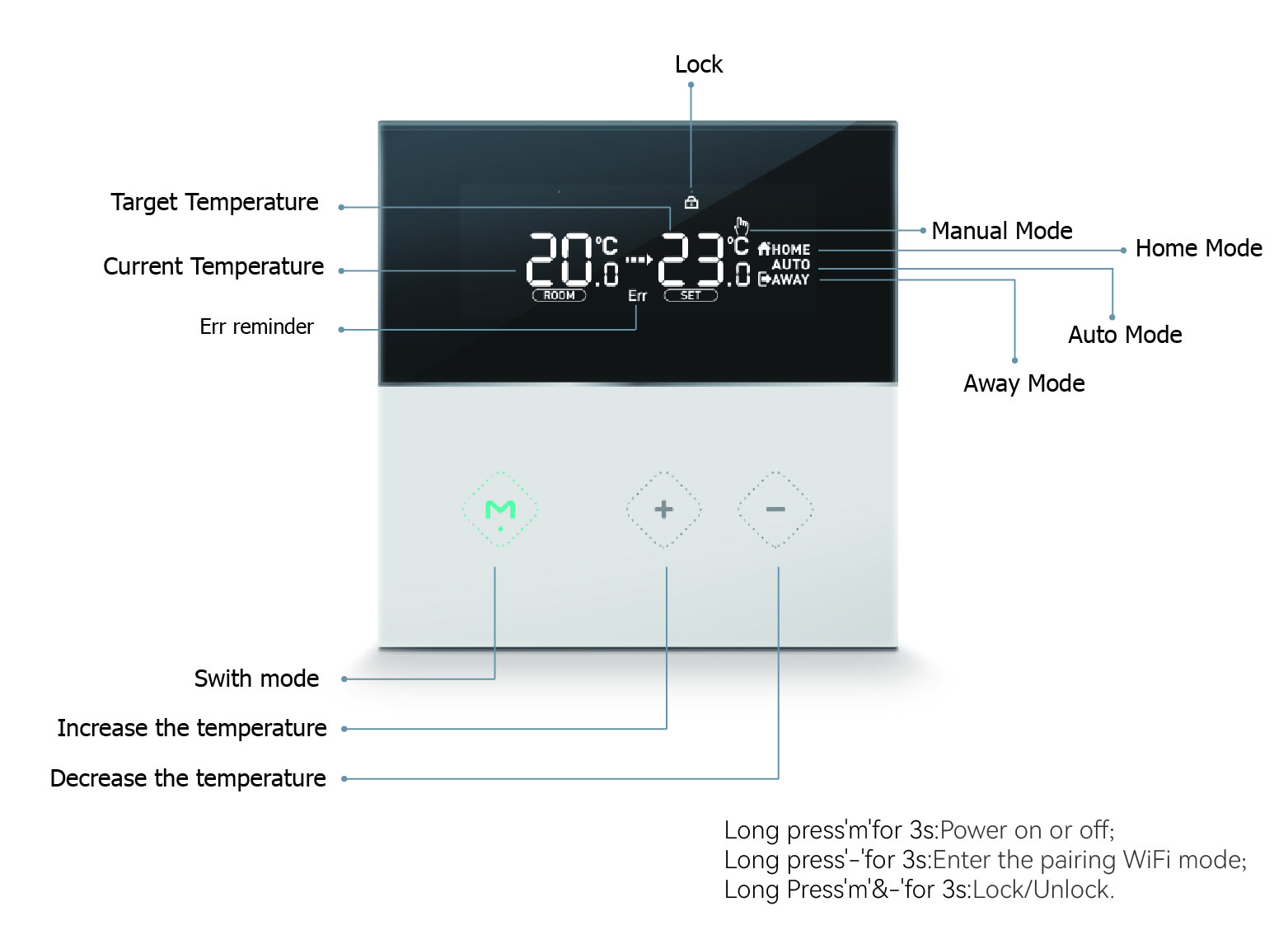

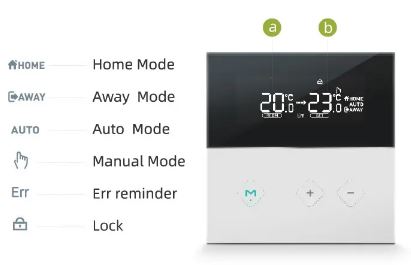

Display

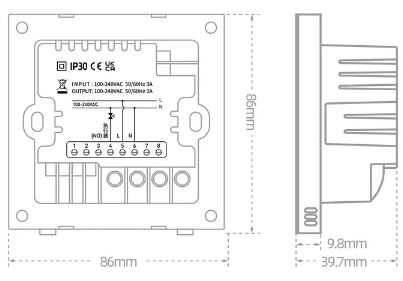

Dimension
Specification Parameters
|
Item
|
Data
|
|
Color
|
White/Black&White
|
|
Temp Range
|
5~35℃
|
|
Screen
|
LCD
|
|
Accuracy
|
±1℃
|
|
Language
|
English
|
|
Size
|
86*86*11mm
|
|
Input
|
220VAC+10%50/60HZ
|
|
Output
|
5A*220VAC
|
|
Sensor
|
NTC10KB25/50:3950
|

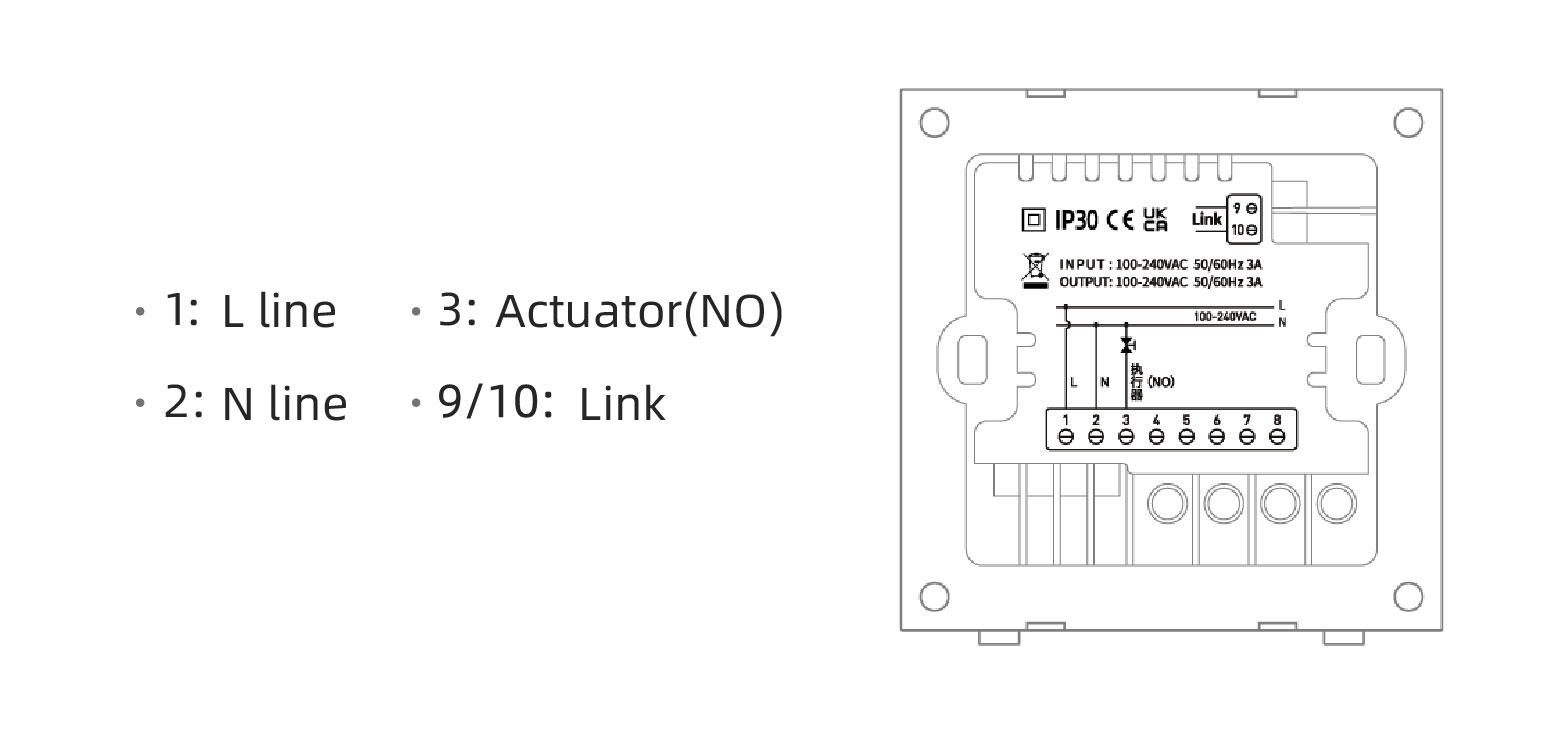

Wiring Diagram

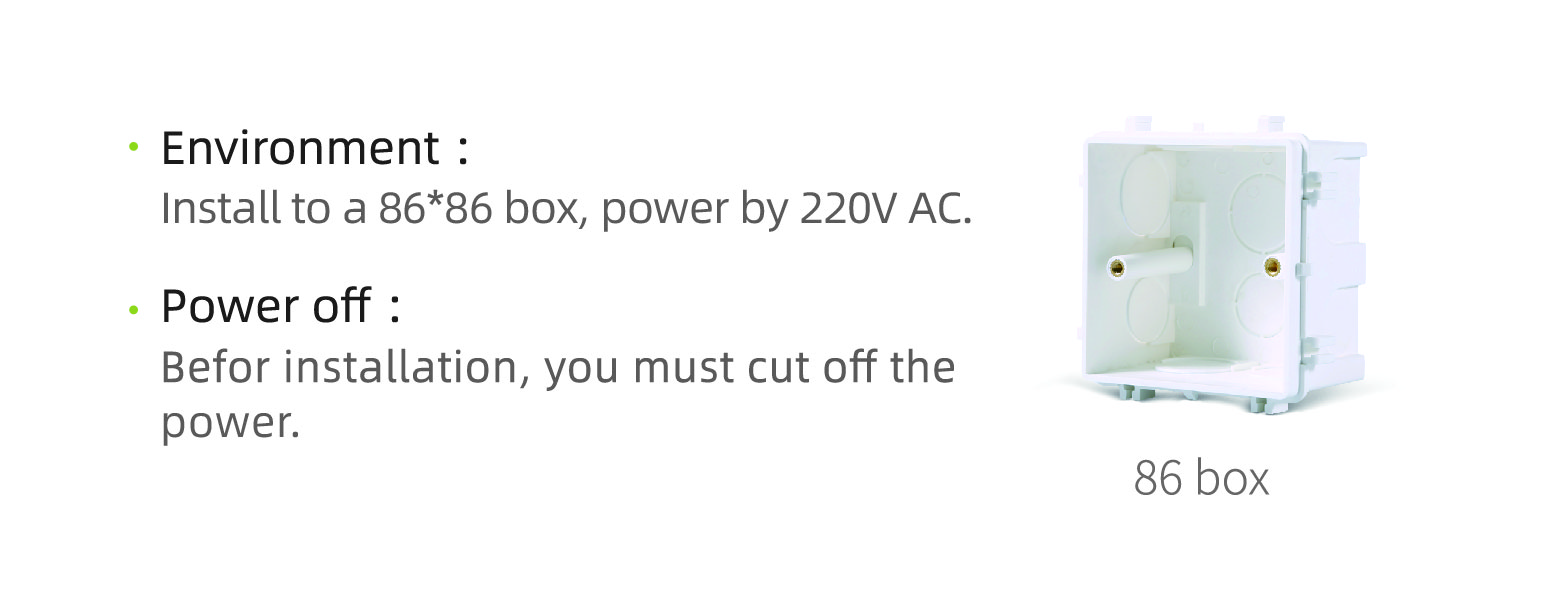

Installation Instruction

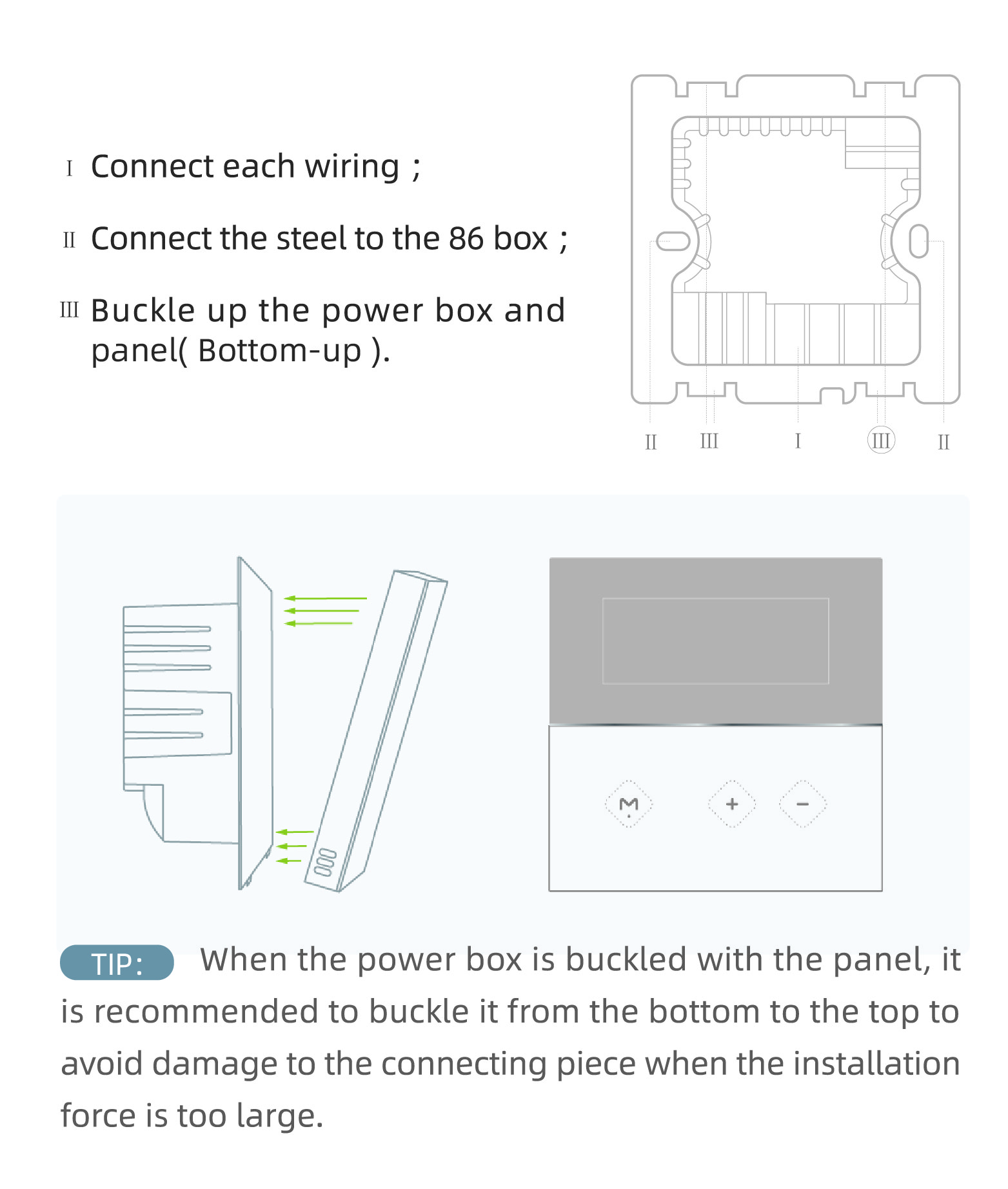

Install Steps
HOW TO OPERATE
- Some non-programmable thermostats have a specific button for turning them on or off, whereas others might turn on when they are plugged into a power source. Verify that the thermostat has power.
- Set the thermostat’s temperature by adjusting the up and down arrows or buttons to the preferred setting. The majority of thermostats let you select temperatures for both heating and cooling.
- Some non-programmable thermostats contain a switch or button that can be used to switch between the heating and cooling modes. Depending on your demands, choose the appropriate option.
- Some thermostats offer the ability to regulate the fan in one of three ways: “On,” “Auto,” or “Circulate.” The options “On” and “Auto” will keep the fan running continuously, “Circulate” will only operate the fan occasionally to circulate the air, and “On” will keep the fan going whenever heating or cooling is taking place.
- Non-programmable thermostats often don’t have a scheduling feature. Override and hold. However, some models allow you to temporarily change the temperature until the next predetermined interval by using an “override” or “hold” function.
- Additional features: Depending on the model of the particular thermostat, there might be more features like a lock function, temperature calibration, or a backlight. To find out more about your thermostat’s special features, consult the user manual or other documentation.
- I suggest consulting the material for precise and comprehensive information on the operation of the Legom M1 thermostat if you have access to the user manual or particular instructions for it.
FAQS
What is the non-programmable Legom M1 thermostat?
Without any programmable capabilities, the Legom M1 Non-Programmable Thermostat is a tool used to manage the heating and cooling systems in your house.
The Legom M1 Non-Programmable Thermostat’s operation is described.
The thermostat allows you to manually change the temperature settings and is connected to your heating and cooling systems. Advanced scheduling or programmable features are not available.
Can you program the Legom M1 Non-Programmable Thermostat?
No, there are no programmable features on the Legom M1 Non-Programmable Thermostat. It only takes manual adjustments to function.
What are the major characteristics of the non-programmable Legom M1 thermostat?
The Legom M1 Non-Programmable Thermostat’s primary features include simple on/off controls for your HVAC system, temperature adjusting buttons, and an LCD display for temperature readings.
Is there a digital display on the Legom M1 Non-Programmable Thermostat?
The current temperature is normally displayed on a digital display on the Legom M1 Non-Programmable Thermostat.
Can all HVAC systems use the Legom M1 Non-Programmable Thermostat?
The specific model determines whether the Legom M1 Non-Programmable Thermostat is compatible. Although it is made to work with the majority of common heating and cooling systems, it is always advisable to check compatibility before buying.
Can I manually change the thermostat setting on the Legom M1 Non-Programmable Thermostat?
Yes, using the temperature adjustment buttons on the Legom M1 Non-Programmable Thermostat, you can manually change the temperature settings.
What energy-saving features does the Legom M1 Non-Programmable Thermostat have?
No, the Legom M1 Non-Programmable Thermostat lacks any energy-saving features that are commonly found in smart or programmable thermostats.
Is it simple to install the Legom M1 Non-Programmable Thermostat?
Depending on your HVAC system, the Legom M1 Non-Programmable Thermostat installation procedure may change. Nevertheless, it is often simple to use and may be installed by adhering to the specified instructions. Are batteries necessary for the Legom M1 Non-Programmable Thermostat? Yes, the display and basic operation of the Legom M1 Non-Programmable Thermostat are often powered by batteries. Is it possible to combine several heating or cooling zones with the Legom M1 Non-Programmable Thermostat?
The Legom M1 Non-Programmable Thermostat is commonly made for single-zone applications, which means that it regulates the temperature of a single space or room.
Can I lock the Legom M1 Non-Programmable Thermostat’s temperature settings? No, the temperature settings of the Legom M1 Non-Programmable Thermostat cannot be locked. Anyone with access to the device is free to alter it.
Does the LCD backlight on the Legom M1 Non-Programmable Thermostat work?
The availability of a backlight on the Legom M1 Non-Programmable Thermostat may vary depending on the specific model. Some models may have a backlight feature, while others may not.
Can a remote control be used to operate the Legom M1 Non-Programmable Thermostat?
No, remote control cannot be used to operate the Legom M1 Non-Programmable Thermostat. It can only be manually altered.
What smart home technologies are compatible with the Legom M1 Non-Programmable Thermostat?
No, the Legom M1 Non-Programmable Thermostat is not designed to be compatible with smart home systems or connect to other smart devices. This thermostat is simple and non-programmable.
