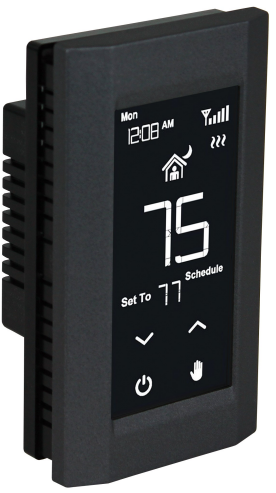

King Electric K901-B/ K901-W Wifi Programmable Thermostat

King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-PRO -

Specifications

  • Thermostat is suitable for electric heating systems.
  • Power Supply: K901-B / K901-W: 120/208/240 VAC
  • K902-B / K902-W: 120/208/240 VAC
  • Maximum Power: 1920W @ 12DVAC (16A)
  • 3328W@ 208VAC (16A)
  • 3840W @ 240VAC (16A)
  • Power Consumption: 7VA
  • Temperature Display Range: 14°F-122°F
  • Temperature Display Resolution: 1 °F
  • Temperature Control Range: 40°F-95°F
  • Temperature Adjustment Scale: 1 °F
  • Selectable Switching Differential: 1 °F~4 °F (Default 1 °F)
  • Anti-Freeze Protection: 40°F
  • Temperature Sensor: NTC 1 OK Ohm @ 77°F
  • Listing: C ETL us

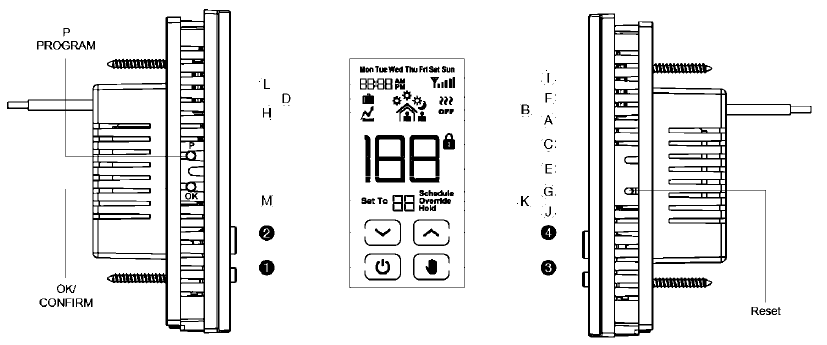

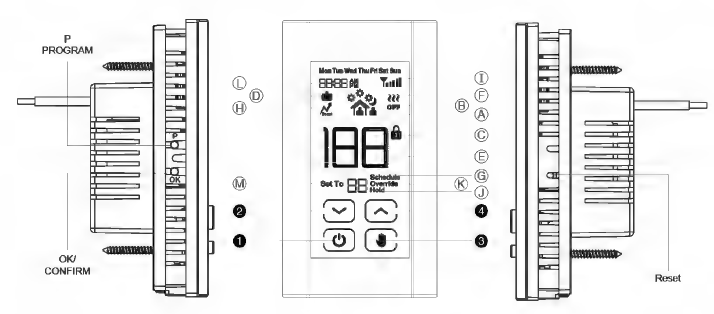

DESCRIPTION

  • A. Period Indicator
  • B. Standby Indicator
  • C. Key Lock Indicator
  • D. Vacation Indicator
  • E. Temperature Indicator
  • F. Heating ON Indicator
  • G. Programming & Time Indicator
  • H. Boost Indicator
  • I. WIFI signal Strength Indicator
  • J. Hold Indicator
  • K. Override
  • L. Time Display
  • M. Set Temperature

King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-1

Hoot WIFI Agg

  1.  Standby Button
  2. Down Button
  3. Hold Button
  4.  Up ButtonKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-2

WIRING INSTRUCTIONS

The installation of the thermostat must comply with the applicable local and/or national electrical code and utility requirements. This installation should be performed by a qualified electrician where required by law. Ensure that all wiring connections to the thermostat are correct and tight to prevent electrical shorts. Use the appropriate wire to meet local and national electrical codes for rated power consumption

INSTALLATION AND WIRING INSTRUCTIONS

Warning: Turn OFF the power at the circuit breaker before Installing. Installation should be performed by a qualified electrician. Refer to thermostat and heater load specifications before installation of the thermostat to see if it can handle the amp load. The maximum this thermostat can run is 3840 Watts at 240 Volts, 3328 Watts at 208 Volts, or 1920 Watts at 120Volts.

WIRING INSTRUCTIONS

Wiring requires a Phillips screwdriver

  •  Disconnect power supply to prevent electrical shock or damage to the product.
  •  Run line voltage wiring to the location of thermostat.
  • Connect output terminals to heating system in accordance with instructions from the heating system.
  • Make sure your HOOT thermostat is COMPLETELY RECEDED into the metal junction box in the wall and NO WIRES SHOULD BE EXPOSED outside the metal or plastic junction box.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-3

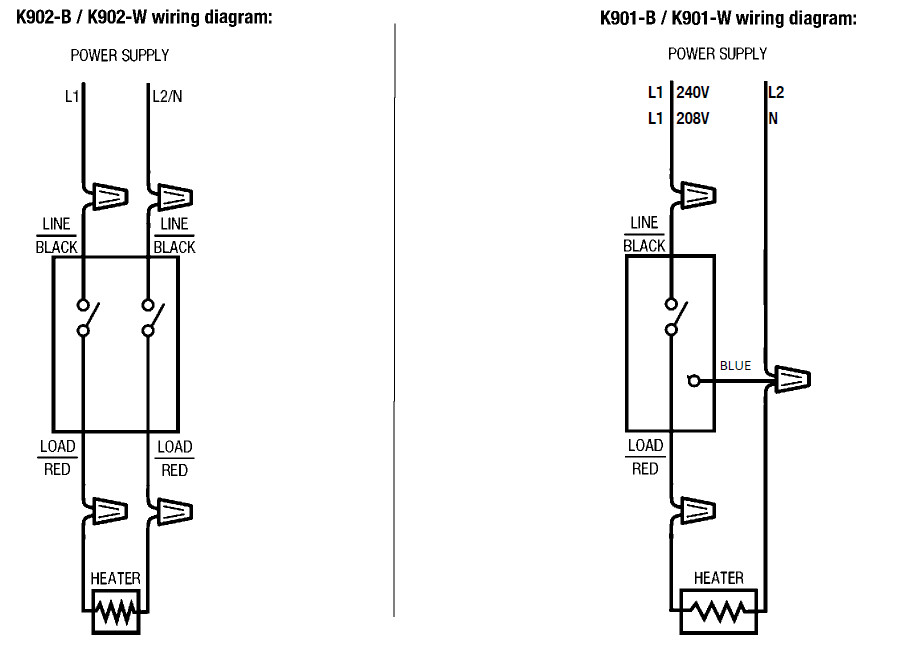

Wiring Diagram

King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-4

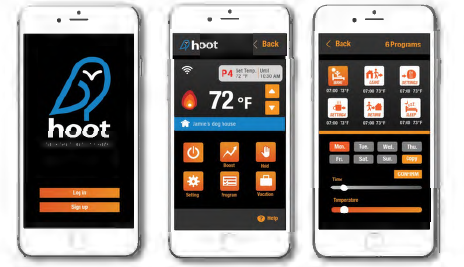

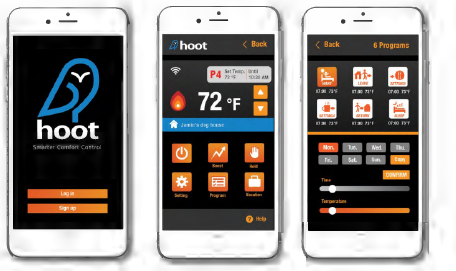

DOWNLOAD APP

Smartphone App Installation

Downloading Hoot WIFI App for iPhone and iPad
In order for Hoot WIFI to work with your iOS device, download and install the APP from the App Store: Search for 11 Hoot WIW by King.

Downloading Hoot WIFI App for Android Devices
In order for Hoot WIFI to work with an Android device, download and install the APP from the Google Play Store: Search for 11 Hoot WIW by King.

NEED HELP?
We are here for you. Visit www.king-electric.com/hoot-wifi-support for tech support and user informationKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-5

REGISTRATION & INITIAL SETUP

Launch WiFi Application

  • Find the Hoot WIFI on your iOS/Android device.
  • Launch the appKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-6

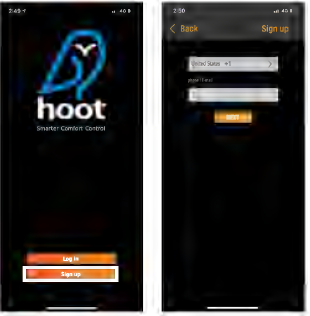

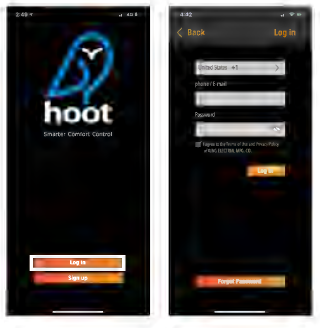

Registration Process

  •  If you have already registered, click “Log in” and enter the username and passwordKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-7
  • If accessing the first time, click “Sign up” to start the process. Enter either a valid email address or cell phone number to create the accountKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-8

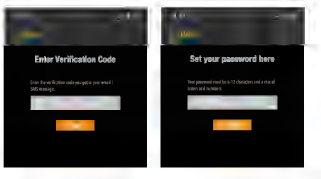

  •  You will receive either a Email or SMS Message with a verification code. Enter that code in the app and set your passwordKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-9

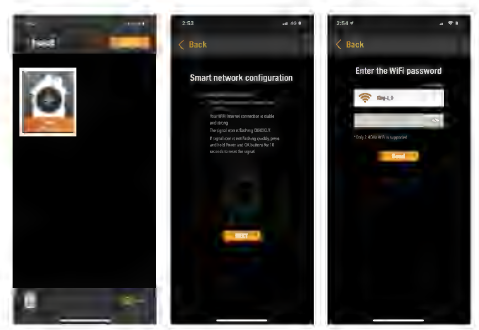

  •  Click Add Device
    •  Make sure the device has been already installed and powered up.
    •  Enter Pairing Mode: Signal icon must be flashing QUICKLY to pair device. Press and hold POWER and OK buttons for 10 seconds to start pairing process.
    •  Select a 2.4GHz WIFI network (5GHz WIFI is not supported)King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-10
    • Enter the WIFI password to finalize pairingKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-11
  • The Hoot device will be appeared after pairingKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-12
  • If there is an Error during the pairing process, refer to the below Troubleshooting guide to resolve or visit https://king-electric.com/hoot-wifi-support King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-13
    • Check WiFi Signal is strong and stable and other devices in your home are communicating to the internet via the WiFi network.
    • Check WiFi Password is correct and try again
    • This thermostat may be bound to another user’s account. If this is a shared device, to gain access contact the master user and request the device be shared with your user account.

APP PROGRAMMING HEATING SCHEDULE

Launch Application

  •  Open the Hoot WIFI Mobile app on your iOS or Android deviceKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-6
  • Select the thermostat you would like to programKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-14

Programming the Thermostat

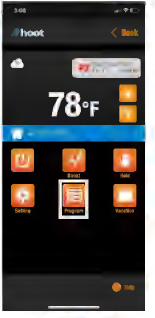

  • Select the Program icon to begin the program configurationKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-15

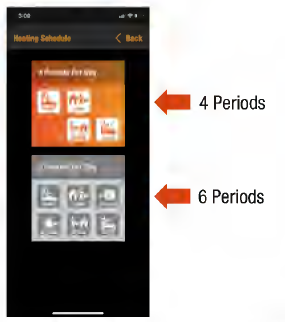

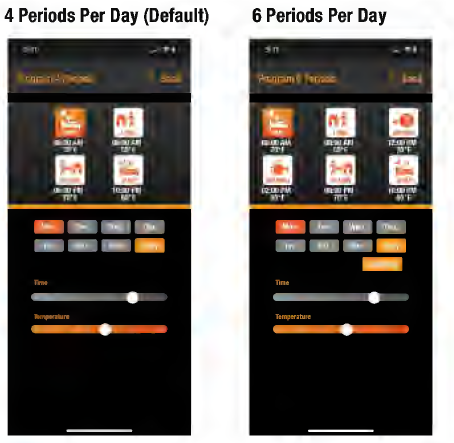

  • You can choose to program either 4 or 6 periods per day.
  • Select whichever option works better with your daily schedule .King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-16

King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-17

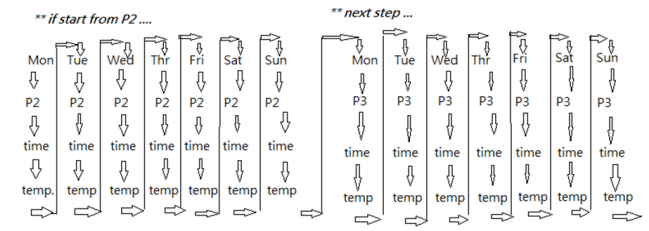

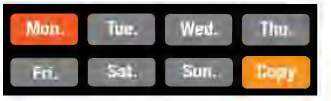

Copying Program Feature

  • King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-27 is a feature of the Hoot WIFI app to allow users to easily copy and paste settings between the days. The Copy command in the lower right-hand corner.

Select the period to configure

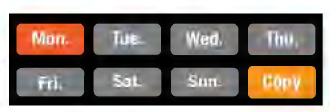

  • Step 1: Select the day of the week that you wish to copy the setting fromKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-18
  • Step 2: Press the King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-27icon
  • Step 3: Select the days of the week you wish to copy the settings toKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-20
  • Step 4: SelectKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-27 to save changes to a thermostat or pressKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-22 to exit.

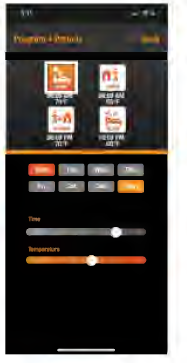

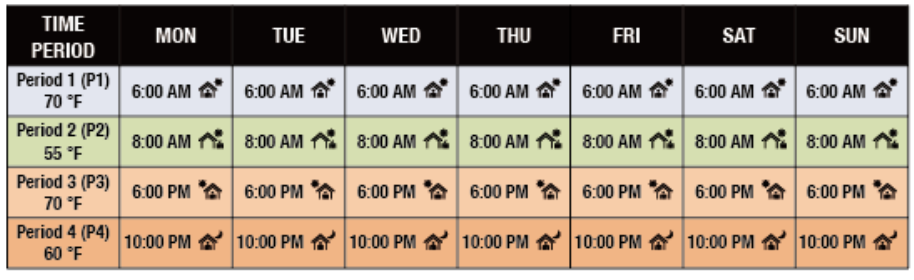

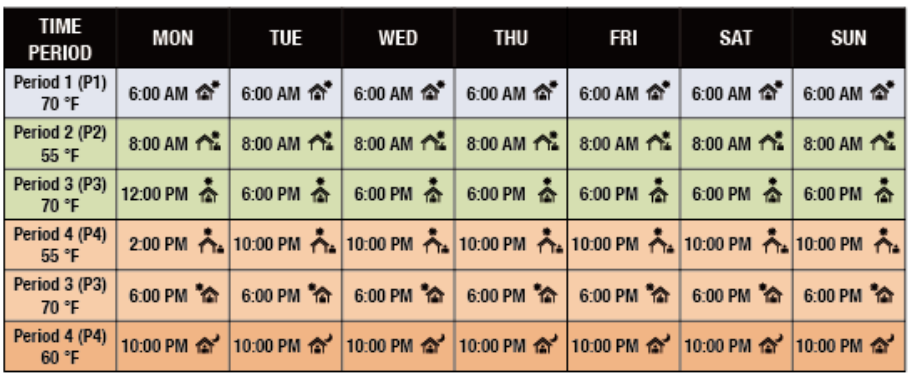

Programming your weekly schedule

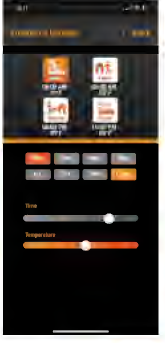

Option 1
4 Periods Per Day Configuration

  •  Wake
  •  Leave
  •  Return
  • Sleep

Select the period to configureKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-29

  • Step 1: Select the day of the weekKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-30
  • Step 2: Select the start time for the period by moving the sliderKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-25
  • Step 3: Select the temperature of the period by moving the sliderKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-26
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-27to save the changes to the thermostat, or press cancel to abort.
  • Press to exit King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-22

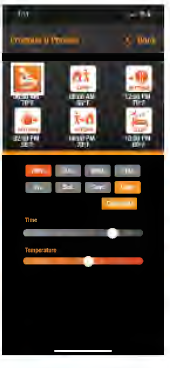

Option 2

6 Periods Pear Day Configuration

  • Wake
  •  Leave
  •  Lunch
  • afternoon Tea
  •  Return
  •  Sleep

Select the period to configureKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-23

  • Step 1: Select the day of the weekKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-24
  • Step 2: Select the start time of the period by moving the sliderKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-25
  • Step 3: Select the temperature of the period by moving the sliderKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-26
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-27to save the changes to the thermostat, or press cancel to abort
  • Press to exit King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-22

APP SETUP AND SETTINGS

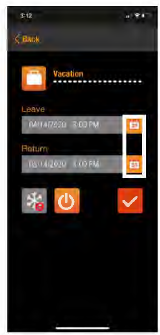

Vacation Mode
This thermostat offers a vacation setting where you can schedule in advance, days you are out of the house. Hoot can be set to turn off during this period or run in anti-freeze mode.

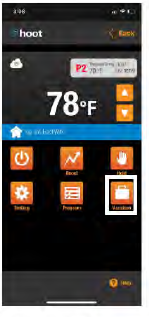

  • Step 1: Select the Vacation Mode iconKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-31

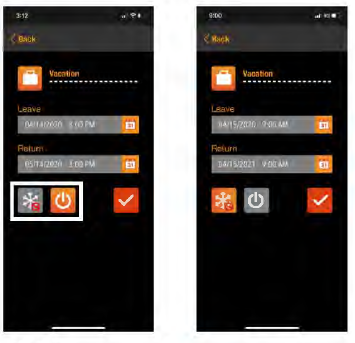

  • Step 2: Select if you wish to run anti-freezeKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-33 or Power OFFKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-34King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-32Step 3: Select the calendar icon to set vacation start/end time & date.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-35
  • Step 4: Select King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-53to save changes to a thermostat or pressKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-22 to exit.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-36

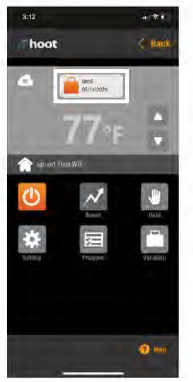

  • Step 5: Pressing the top Vacation icon will cancel the Vacation function and return to programmed schedules.

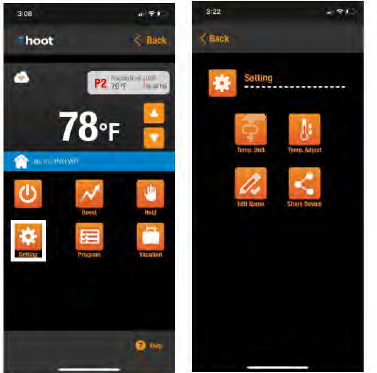

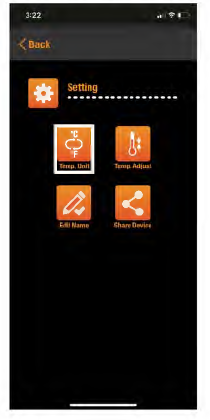

Settings Mode

King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-37

Settings Mode allows you to change the following:

  • Change the name of the thermostat
  • Adjusting Temperature Compensation
  • Temperature scale change
  • Share Device

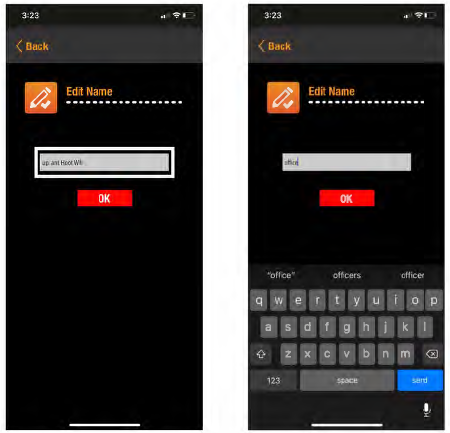

Name Your Thermostat

  •  Select (Edit Name) iconKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-38
  • Rename the thermostat with the name you prefer.
  •  Enter the new name for the thermostat in the text box.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-39

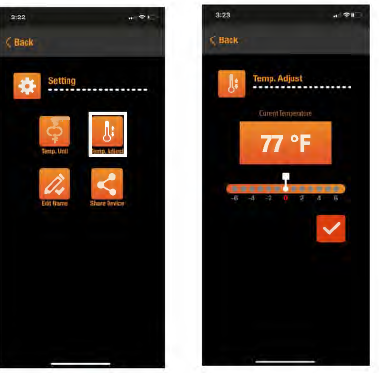

Temperature Compensation of the Thermostat
If the temperature reading is higher or lower than you prefer, you can adjust the ambient temperature reading of your Thermostat. The Offset value that you set will be added or subtracted from the Hoot’s ambient temperature reading

  • Select (Temp. Adjust) icon below.
  • Select how many degrees you wish to compensate against by sliding the white slider in the following screen.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-39
  • SelectKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-53  to save changes to thermostat or pressKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-22 to exit.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-41

Temperature Scale {°F 1°c) of the Thermostat

  • Select (Temp. Unit) iconKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-42
  • Tap °F to change to Fahrenheit o rtap °C to change to CelsiusKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-43
  • Select King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-53  to save changes to thermostat or press to exit.

APP PRODUCT SETUP AND SETTINGS

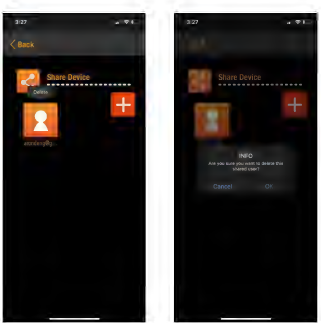

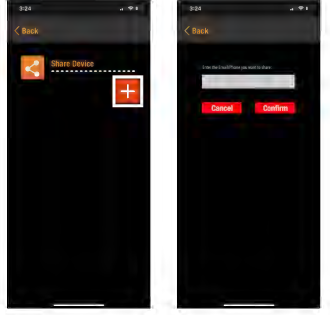

Share Thermostat

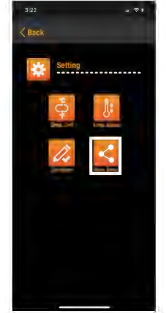

  •  Select the Share Device icon below to grant access to othersKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-44
  •  Click the [+ icon] to add other accountKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-45
  •  To create share thermostat, enter the Hoot account holder’s email address you would like to share with.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-46

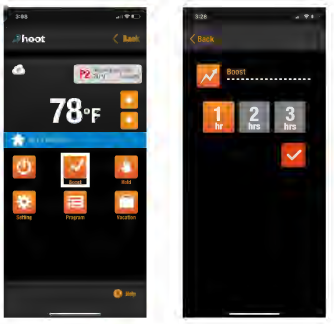

Boost Mode
Boost mode allows user to maintain the current setting and bypass the scheduled program for us to 3 hours. The thermostat will return to its regular schedule programming after the boost time has expired.

  •  Select the Boost icon below
  •  Select how many hours you wish to boostKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-47
  • Select  King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-53to save changes to thermostat or pressKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-22 to exit.
  • Verify Boost Mode is now active, showing the following icon.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-48

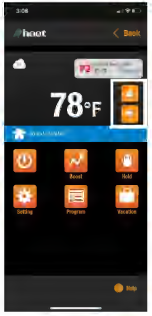

Temporary Override
Override mode allows you to temporarily adjust the set point to a desired temperature, until the next scheduled time period begins.

  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-49key to set the desired temperatureKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-48
  • Override Mode is active when showing the following icon.
  • Press on the top Override icon, to cancel the Override function and return to programmed schedule.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-48

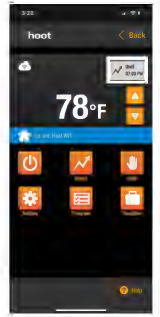

Permanent Hold Mode

  • Holds thermostat a desired set point permanently until canceled.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-50
  • Selecting the Hold icon will show the following screen.
  • Tapping the King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-49button adjusts temperature set point.
  •  Select King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-53to save changes or pressKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-22 to exit.
  •  Hold Mode is active when the following icon is displayed.
  • Press on the top Hold icon, to cancel the Hold function and return to programmed schedule.

Rebooting Hoot WIFI

  • In case Hoot WIFI is not functioning correctly, you can reboot the unit to see if this improves the problem.
  •  Locate the Reset button on the right side of the unit
  •  Lightly press the button with a paper clip or similar blunt object until the unit powers off and powers back on the reset

Factory Resetting Hoot WIFI
To Reset Hoot back to factory default settings & erase all user data and remove from an account,

  •  Press & Hold the King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-558 button for 5 seconds until rSt (RST) flashes on the upper left corner of the display.
  • Unit has been unbound from an account and reset to default.

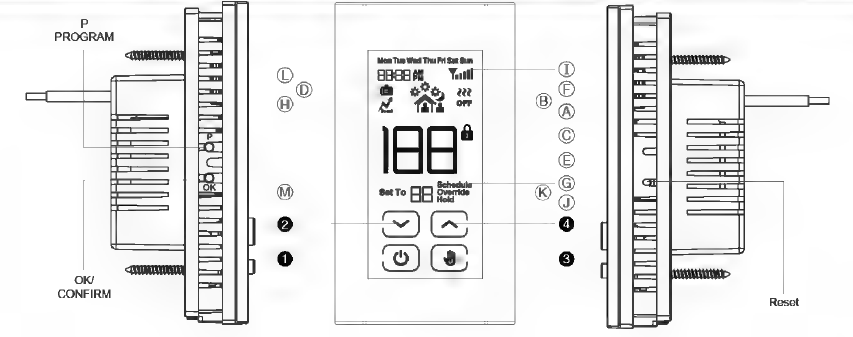

SETTINGS ON THERMOSTAT

  • A. Period Indicator
  • B. Standby Indicator
  • C. Key Lock Indicator
  • D. Vacation Indicator
  • E. Temperature Indicator
  • F. Heating ON Indicator
  • G. Programming & Time Indicator
  • H. Boost Indicator
  • I. WIFI signal Strength Indicator
  • J. Hold Indicator
  • K. Override
  • L. Time Display
  • M. Set TemperatureKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-56

HOLD MODE

  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-57button to enter Hold mode
  • PressKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 to select temperature (40-95°F) as desired Hold temperature.
  • Press OK to complete the setting
  • To turn off the Hold mold, please press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-57button.

KEY LOCK MODE
Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-55  buttons simultaneously for 5 seconds to Enter or Exit Key Lock Mode.

STANDBY FUNCTION

  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-59button to Enter or Exit Standby Mode.
  • Pressing the Standby button the hoot thermostat disables the relay output but activates Anti-Freeze Mode
  • Standby indicator shows up on the screen.
  • Anti-Freeze Mode offers below 40°F freeze protection . This means the system is still on and when the room temperature drops below 40°F, the heater will turn on to provide freeze protection heating.

MAX TEMPERATURE LIMIT SETTING

  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-59to enter Off mode
  • Press and hold simultaneously the P + OK buttons for 5 seconds to enter max temperature setting mode
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 to adjust the max temperature (40-95 °F)
  • Press OK to complete the setting

MANUAL TEMPORARY OVERRIDE
Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 to select 40°F-95°F temperature as the desired temporary override temperature

INITIAL SETUP

  • A. Period Indicator
  • B. Standby Indicator
  • C. Key Lock Indicator
  • D. Vacation Indicator
  • E. Temperature Indicator
  • F. Heating ON Indicator
  • G. Programming & Time Indicator
  • H. Boost Indicator
  • I. WIFI signal Strength Indicator
  • J. Hold Indicator
  • K. Override
  • L. Time Display
  • M. Set TemperatureKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-60

INITIAL SETUP:

  • Press and holdKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 buttons simultaneously for 5 seconds to enter SETTINGS MODE:
  • Setting #1: Set °C or 0 f
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 and to select °C or °F (Default °F )
  • Press OK to save setting and move to next step.

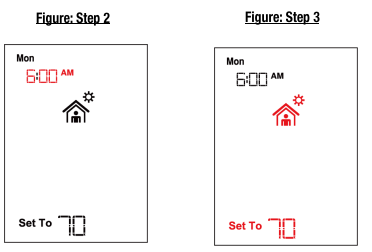

  • Setting #2: Set Clock
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 and OK key to adjust Day Hour Minute.
  • Press OK to save setting and move to next step.
  • Setting #3: Set Temperature Differential:
  • The Offset value that you set will be added or subtracted from the Hoot’s ambient temperature reading.
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 to adjust the temperature differential.
  • Press OK to save setting and move to next step.
  • Setting #4 Period selection: P4 or P6
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 to select P4 (4 Periods Per Day) or P6 (6 Periods Per Day)
  • Press OK to save and move to next step.
  • Setting #5 Brightness
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 to select the contrast is from 1 (dim) to 7 (bright).
  • Press OK to save setting and move to next step
  • Setting #6 Beep on/ off
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 to choose Beep on or Beep off.
  • Press OK to save setting.

MANUALLY PROGRAMMING THE HEATING SCHEDULE

Wilen programming 11te heating schedule through the buttons on th8 th8nnostat, you will have the option of sclleduting 4 time periods per day or 6 time periods per day. The below charts show the default limes and temperatures for eacl1  11te 4 016 dally time periods. These can be customized as desired, as shown on 11te following page.

DEFAULT SCHEDULE FOR 4 PERIODS PER DAY (P4King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-61

DEFAULT SCHEDULE FOR 6 PEIDDS PER DAY (P6}

King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-62

Program Heating Schedule-4 Periods Per Day/6 Periods Per Day
When programming the heat schedule through the buttons on the thermostat, you have 4 time or 6 time periods per day that need to be programmed.

  • Wake
  • Return
  • Leave
  • SleepKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-63

Press P button to enter/exit Program Setting mode

  • Step l: Select Day of the Week to be Programmed.
  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 buttons to select day to be programmed (Mon to Sun)
  • The programming starts by default with programing of Period 1 (P1)
  • To schedule a different time period press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-59button to scroll through the available periods (P1, P2, P3, P4, P5 and P6)
  • Press OK to save the setting and move to next step.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-64

Step2: Select the START time for the Time Period

  • PressKing- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 buttons to change the Period Start Time
  • Press OK to save the setting and move to next step.

Step3: Select the desired Temperature Setting for the Time Period.

  • Press King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-58 buttons to scroll through 40-95°F.
  • Press OK to continue to next step or Press P to EXIT Programming Mode.King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-65

Sequence of Programming setting for P1, P2, P3, P4, P5 and PG.

King- Electric- K901-B-K901-W Wifi -Programmable -Thermostat-66

REFERENCE:

DOWNLOAD MANUALS:

King Electric K901-B- K901-W Wifi Programmable Thermostat Instruction Manual

King Electric-LOGO

King Electric K901-B/ K901-W Wifi Programmable Thermostat Instruction Manual

Comments

Leave a Reply

Your email address will not be published. Required fields are marked *

To respond on your own website, enter the URL of your response which should contain a link to this post’s permalink URL. Your response will then appear (possibly after moderation) on this page. Want to update or remove your response? Update or delete your post and re-enter your post’s URL again. (Find out more about Webmentions.)
