King Electric ES-230 Non Programmable Thermostat Installational Manual

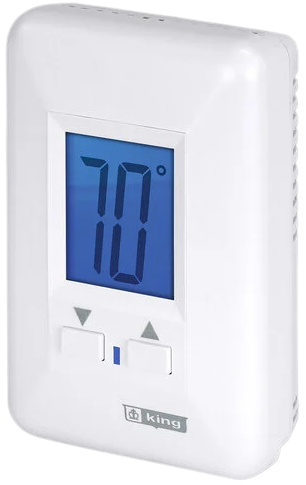

King Electric ES-230 Non-Programmable Thermostat

General information

This thermostat is designed to provide the highest level of accurate temperature control for residential line voltage electric heating in 120 or 208/240 volt. Almost all electric heaters installed as original equipment in a residential application will be 208 or 240 volt. It is very rare that a home, apartment or condominium would be wired with all 120 volt heaters. Check your voltage to make sure you have the right thermostat for your heater voltage. A 2 pole or double wide circuit breaker at the panel would indicate that you should use the 240 volt model. A single pole or single wide breaker would indicate a 120 volt circuit. There are some exceptions to this rule so checking with a voltmeter is the only way to know for sure. Be safe and smart, electricity can cause severe injury or death. The thermostat will provide years of comfort control for your family for small fan driven electric heaters, baseboards, radiant ceiling, wall panel heaters, cove heaters, or any line voltage resistance heating systems that do not have an electric motor over 1/3 hp. The thermostat will be warm to the touch on top. This the electronics operating, it also provides air currents across the face of the thermostat that help it sense room temperature better.

Specifications

• For ES-120 and ES-230
• Temperature range: 40 to 95
• Temperature Default: 68 Degrees
• Display Format: Liquid Crystal Display (LCD)
• Display Size: Extra Large Format – 2″ x 1½”
• Sample Rate: Every 60 seconds
• Time Delay: 3 Minutes on and off
• Relay rating: 30 amps before De-rating
• Backlighting: LED
• Heat Indicator: Red LED
• Accuracy: + or- 1.2 Degrees F
• Rating: 22 amps resistive continues
• Wattage:5280 watts ES-230 2640 watts ES-120
• Power Supply: 120 volt for ES-120 208/240 volt for ES-230

Operation

This precision electronic thermostat will sense the room air at the bottom of the thermostat by a thermistor. This very sensitive sensor will send information to the microprocessor. As the temperature drops, the information it sends will indicate if heat is needed. To reduce any undesirable fast on/off cycles, the processor has a built in 1 to 3 minute delay. This will save energy and provide the best control of a space. This thermostat dose not require batteries and will have a default setting of 68°F when powered up. It is easily changed by tapping the arrow keys on the front of the thermostat. Up arrow increases temperature and down arrow reduces temperature. Backlighting is provided on some models and can be turned off or on by a small switch under the left corner of the thermostat. This will allow you to see the thermostat in low light or at night

Installation
This line voltage device should be installed and serviced by a qualified electrician. The thermostat has been designed to mount to a standard 2” x 4” electrical outlet box. Leveling of the thermostat is not required. Mounting screws are provided. Mount the thermostat about five feet above the floor in an open area in the living room. A good rule of thumb is to place the thermostat above the wall switch for that room. This works well for most bedrooms and makes it very convenient to turn the heat lower when leaving the room. Avoid mounting the thermostat where there may be plumbing pipes in the wall or placing a lamp or TV too close to the thermostat. The heat from these items affects the performance of the thermostat.

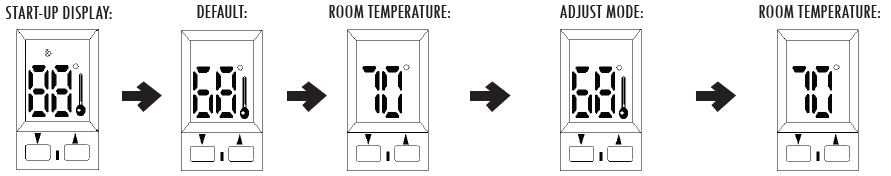

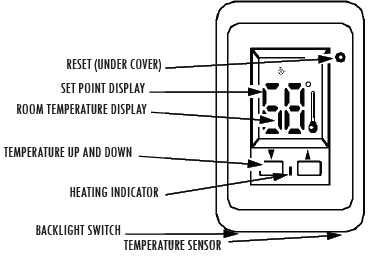

DISPLAY LEGEND

WARNING

• Check the total load of the heaters that you are connecting to the thermostat. The maximum wattage at 240 volts is 5280 Watts. If you have the 120
• The volt version maximum is 2640 Watts. You need to stay below this total wattage connected to the thermostat. The lower the wattage the longer the life of the contacts in the relay.
• To wire, the thermostat determines which pair of wires are coming from the breaker panel and which pair leads to the heater.
• Attach, with a wire nut, the blue wire (white wire on 120 Volt model ES120) to the pair of white wires in the junction box.
• Use black lead from the Circuit Breaker panel and attach it to the black lead on the thermostat. This will provide power to the thermostat and LCD display and backlight.
• Attach the black lead going to the heater to the red lead on the thermostat. This will provide power to the heater when the thermostat calls for heat.
• Remove the thermostat cover by holding the back of thermostat with one hand and grasping the top and bottom of the cover with the other hand, pulling it towards you evenly.
• Push the wires carefully into the junction box making sure no wires will be pinched when attaching to the wall using #6-32 screws provided.
• Holding the thermostat into wall box, fasten screws at the top and bottom mounting holes attaching to the wall box. (Do not over-tighten screws)
• Turn on power to test. Increase set point to higher than the current room temperature by tapping the up button. There will be up to a 3 minute delay in turning on. The red indicator will turn on and you will here a small click as the heater energizes. Turn the thermostat down by tapping on the down arrow.
• To turn on backlighting: Under the bottom left of the thermostat, you will feel a small switch. Moving one way will turn on the light and the other will turn off the backlight. You have now verified that the thermostat is in perfect working order and ready for years of trouble free operation.
• Mounting tips: Make sure there is not anything that could affect the average room temperature sensing of the thermostat such as plumbing pipes in the wall, a lamp close by, direct sunlight, a T.V. set, and/or cold drafts from a door opening.
• Cleaning: A damp cloth will clean the plastic case surface of fingerprints and dust. Strong spray cleaners may damage the plastic case, remove writing or arrows printed on case. Blow out any dust that may accumulate on air vents on top or bottom. Good air circulation is key to
• long life and accurate operation.
• Humid locations: Mildly humid locations like bathrooms may see a reduced life due to corrosion on the contact and lint from towels getting into air vents on thermostats. Blow out the vent regularly and mount the thermostat away from shower locations for longer life.
• Power outages: The thermostat will default to the 68-degree factory setting.

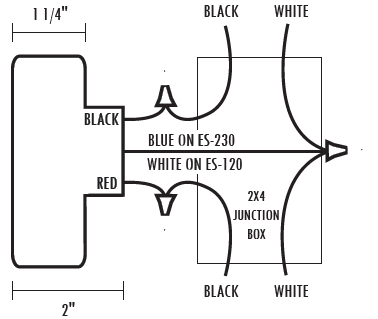

WIRING INSTRUCTIONS

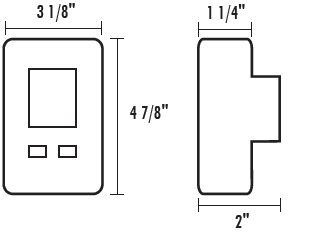

DIMENSIONS

DISPLAY CHANGE

Fahrenheit to Celsius:
On the bottom edge of the thermostat, there are air vents. In one of the vents on the left side, just behind the illumination switch, there is a larger opening with a pin collector attached. With needle nose pliers, pull the connector off. This will put the thermostat into the metric Celsius mode.
