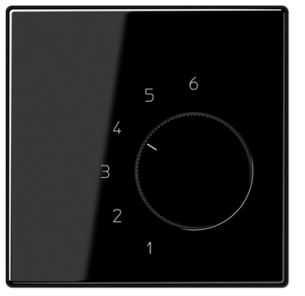

JUNG TR LS 246 SW Room Thermostat

JUNG-TR LS 246 SW-Room-thermostat-Product

REFERE NCE.NO:TR LS 246 SW

Room thermostat (make/break contact)

  • Screwless terminals for wires up to 2.5 mm2
  • screw fixing only, without claws
    1-pole, 2-way, heating 10 (4) A, AC 24 V ~
    1-pole, 2-way, cooling 5 (2) A, AC 24 V ~
  • (The value in brackets indicates inductive loads with cos = 0.6)
  • Neutral conductor required.
  • Hysteresis: 0.5 K
  • Nominal range: +5 °C … +30 °C
  • When set temperature is reached the make/break contact switches over.
  • Thermoplastic (breakproof) high-gloss
    Colour:black
  • thermoplastic

ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
Telefon +49 (0) 23 55/80 60
Telefax +49 (0) 23 55/80 6189
E-Mail [email protected]
