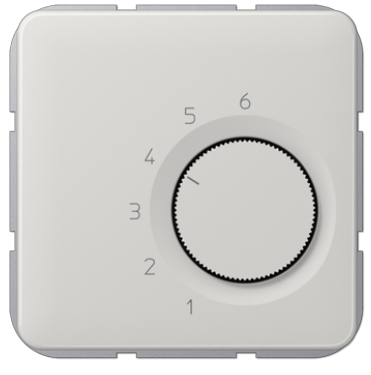

JUNG TR LS 246 LG Room thermostat

JUNG-TR CD 236 LG-Room-thermostat-Product

Room thermostat (2-way contact) 24 V

Reference number
TR LS 246 LG

Room thermostat (2-way contact)

  • with screwless terminals for rigid wires up to 2.5 mm2
  • screw fixing only, without claws
  • 1-pole, 2-way, heating 10 (4) A, AC 24 V ~
  • 1-pole, 2-way, cooling 5 (2) A, AC 24 V ~
  • (The value in brackets indicates inductive loads with cos = 0.6)
  • Thermal feedback (neutral conductor required)
  • Hysteresis: 0.5 K, nominal range: +5 °C … +30 °C
  • No neutral position
  • Without switch and control LED
  • When set temperature is reached the NO/NC contact switches over.
  • Thermoplastic (breakproof) high-gloss

Color

  • light grey

Material

  • thermoplastic
