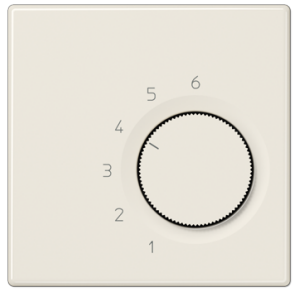

JUNG TR LS 236 Room Thermostat

JUNG-TR LS 231 GGO-Room-Thermostat-Product

Reference number
TR LS 236

Room thermostat (2-way contact)

with screwless terminals for rigid wires up to 2.5 mm2 screw fixing only, without claws

  • 1-pole, 2-way, heating 10 (4) A, AC 230 V ~, 50/60 Hz
  • 1-pole, 2-way, cooling 5 (2) A, AC 230 V ~, 50/60 Hz

For switching between heating/cooling the EBERLE terminal strip EV..H/K is necessary.
(The value in brackets indicates inductive loads with cos = 0.6)
Thermal feedback (neutral conductor required)
Hysteresis: 0.5 K, nominal range: +5 °C … +30 °C
No neutral position
Without a switch and control LED
When a set temperature is reached the NO/NC contact switches over.
Thermoplastic (breakproof) high-gloss

  • Color: ivory
  • Material: thermoplastic
