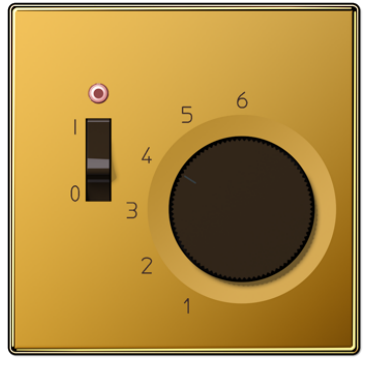

JUNG TR LS 231 GGO Room Thermostat

JUNG-TR LS 231 GGO-Room Thermostat-Product

Reference number
TR LS 231 GGO

Room thermostat (1-way NC contact)

with screwless terminals for rigid wires up to 2.5 mm2 screw fixing only, without claws
1-pole NC contact 10 (4) A, AC 230 V ~, 50/60 Hz (The value in brackets indicates inductive loads with cos = 0.6) Thermal feedback (neutral conductor required)
Hysteresis: 0.5 K, nominal range: +5 °C … +30 °C
Separate terminal for temperature reduction of 5 K (e.g. during night time) ON/OFF switch with status LED
When set temperature is reached the contact opens up.

Metal versions

  • Colour: gold-plated
  • Material: gold-plated metal

REFERENCE:
