JUNG TR A 246 MO Room Thermostat Product Specifications Guide

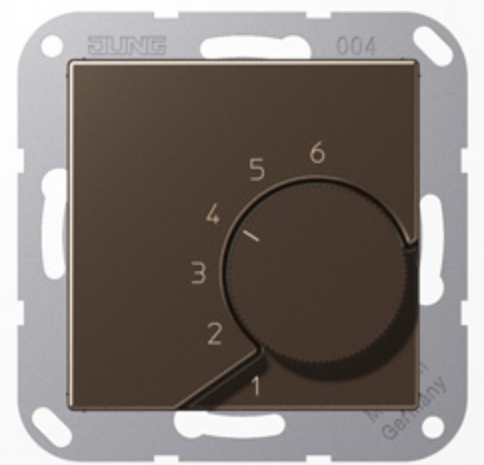

JUNG TR A 246 MO Room Thermostat

Room thermostat (make/break contact) 24 V

TR A 246 MO

Room thermostat (make/break contact)

• Screwless terminals for wires up to 2.5 mm2
• screw fixing only, without claws
• 1-pole, 2-way, heating 10 (4) A, AC 24 V ~
• 1-pole, 2-way, cooling 5 (2) A, AC 24 V ~
• (The value in brackets indicates inductive loads with cos = 0.6)
• Neutral conductor required.
• Hysteresis: 0.5 K
• Nominal range: +5 °C … +30 °C
• When set temperature is reached the make/break contact switches over.
• Thermoplastic (breakproof) lacquered

Color

• mocha
  :
• thermoplastic lacquered
