Johnson Controls FCP Programmable Thermostat

Controlling 2-pipe or 4-pipe fan coil units or PTACs is now simple, cost-effective, and user-friendly. The versatile FCP 7-Day Programmable and FCP Non-Programmable Thermostats can be used as stand-alone devices in a variety of building applications, including hotels, schools, and offices. They provide access to parameters such as system mode, fan mode, and temperature setpoints. FCP Thermostats provide on/off control, up to three speeds of fan control, dry contact unoccupied or occupied control, minimum and maximum temperature protection, and keypad lockout. Each one has a large display with an adjustable backlight that enhances visibility. It also has a quick setup menu that makes it easy to commission, operate and optimize user preferences. In addition, both FCP Thermostat models are prewired for fast installation.

What’s more, the programmable FCP thermostat is available in a no-fan version. This FCP-NF model is designed primarily for fan coils with independent fans and heat-only applications where no fan is needed. It provides the best market value for single-stage heating/cooling applications without fans, and for baseboard and radiant heating systems with remote sensors. Both FCP 7-Day Programmable and FCP Non-Programmable Thermostats are compatible with the Johnson Controls® 10k ohm NTC Type II and Type III remote sensor (available separately). Plus, each can be equipped with a remote temperature sensor, a remote pipe sensor, and a remote wired occupancy sensor to enable flexible options, including a 2-pipe FCU heat/cool switchover or a pipe sensor for automatic switching.

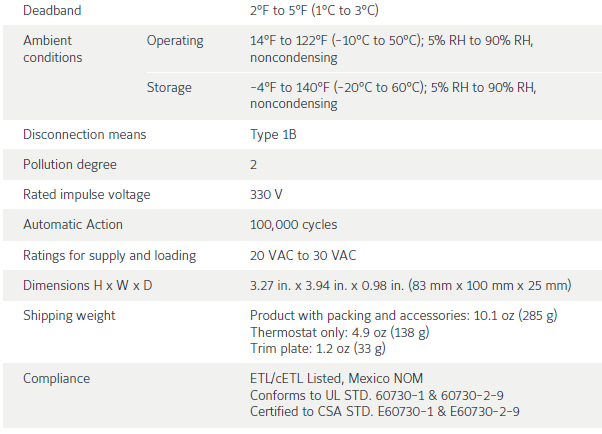

Specifications

Features and Benefits

Designed for the cost-competitive commercial thermostat market

• Non-programmable and seven-day programmable versions with up to six programmable periods per day
• Works with FCU 2- or 4-pipe or PTAC systems
• A no-fan version is available (FCP-PA-701-NF)
• Branding and non-branding (custom pad printing)
• Large display with adjustable backlight for enhanced visibility
• FCP-PA-701 features battery backup

Easy self-install

• The quick setup menu has a reset installer and user configurations to configure the thermostat easily with 20 preset installations
• Pre-installed lead wires for fast installation
• Remote sensor ready
• Remote temperature
• Remote pipe
• Remote wired occupancy sensor

Highly configurable

• Minimum/maximum temperature protection
• On/off control
• Three speeds of fan control
• Pipe sensor for automatic switching
• Calendar-based for automatic switching without a pipe sensor
• Keypad lockout
• Vacation mode
• Clock (12-hour or 24-hour)
• Automatic smart fan for comfort and energy savings
• Temperature in °F or °C

Note: Tamper-proof models are available on request. Ask your Johnson Controls representative for more details.

Questions?
For more information, visit johnsoncontrols.com or contact your local Johnson Controls representative.
