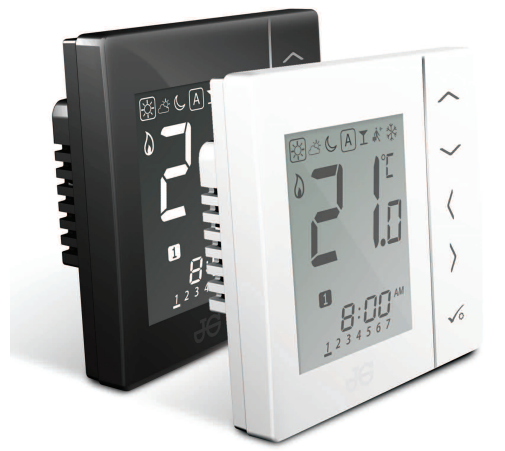

Johnguest JGSTATRF4BBL Wired Programmable Room Thermostat

Johnguest JGSTATRF4BBL Wired Programmable Room Thermostat PRO

Overview

JG Underfloor Controls battery operated and RF programmable thermostat is a stylish and simple way to control wet underfloor heating systems. The thermostat communicates with the JG Underfloor Controls RF wiring centre via a radio signal to provide heat to an individual room and to remove the need for further wiring. Its user-friendly interface makes adjusting and programming temperatures fast and simple. When used with the JG Underfloor Controls gateway and app, underfloor heating can be controlled remotely on the go.

Features & benefits

  • Battery operated programmable thermostat that is easy to install and set up
  • 7-day programme, 15-minute increments and 6 on/off periods for optimal comfort and control
  • Ambient temperature sensor with an optional connection for an external probe to protect against excessive heat
  • Radio signalling to the RF wiring centre saves cost on cabling and eliminates damage and disruption caused by additional wiring
  • Open Window function detects sudden temperature drops to prevent the boiler from firing up and wasting energy
  • Adaptive function predicts heat up times and adjusts programming to eliminate temperature spikes
  • Freeze Protection function reduces energy-wastage in unused rooms and is adjustable between 5-17°C
  • Holiday function maintains low-level heating when the home is unoccupied
  • Heating Boost function boosts heat for 1-9 hours in the event of low temperatures
  • Anti-seize function prevents the UFH pump from seizing during low-usage months
  • Free smart app for controlling underfloor heating on the go
  • Compatible with Alexa or Google Home voice control
  • Meets Boiler Plus requirements

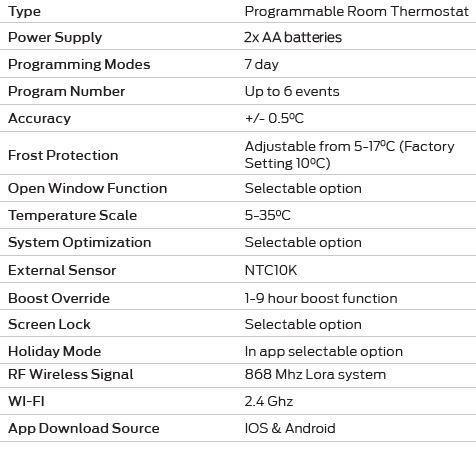

Johnguest JGSTATRF4BBL Wired Programmable Room Thermostat 1

Working pressures & temperaturesJohnguest JGSTATRF4BBL Wired Programmable Room Thermostat 2

ApplicationsJohnguest JGSTATRF4BBL Wired Programmable Room Thermostat 3

Approvals

Johnguest JGSTATRF4BBL Wired Programmable Room Thermostat 4

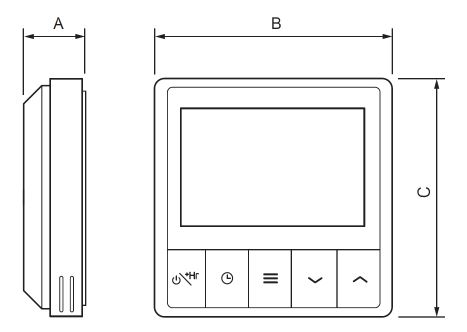

Dimensions

Johnguest JGSTATRF4BBL Wired Programmable Room Thermostat 5

Product code A B C
JGSTATRF4BW 22 86 86
JGSTATRF4BBL 22 86 86
