Jiahong ST16 Programable Thermostat User Manual

Jiahong logo

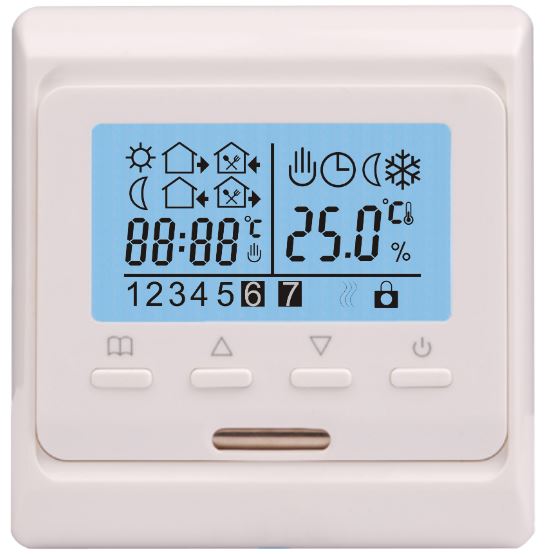

Jiahong ST16 Programable Thermostat

Jiahong-ST16-Programable-Thermostat-FIG-1

SPECIFICATION

  • Warranty: 2 years
  • Floor Heating Part Type: Floor Heating Thermostats
  • Setting range: 5-90°C(can adjust to 35-90°C )
  • Switch differential: 0.5-10°C adjustable factory setting: ± 1 °C
  • Protective housing: IP20
  • Current: 16A
  • Design Style: Traditional
  • Type: Floor Heating Parts
  • Voltage: 220V/230V
  • Power consumption: 2W
  • External limitation: 5-60°C(factor setting:35 °C)
  • Ambient temperature: -5-50°C
  • Housing material: anti-flammable PC
  • Brand: Jiahong

INTRODUCTION

The Jiahong ST16 Programmable Thermostat is a device designed to control the temperature of your home or office. It allows you to set different temperature levels for different times of the day and different days of the week, helping you to save energy and reduce your utility bills. The thermostat has a large backlit display that shows the current temperature and the set temperature, as well as the time and day of the week. The device is easy to program, and it comes with pre-set programs that you can customize to fit your schedule.

The Jiahong ST16 Thermostat is compatible with most heating and cooling systems, including gas, electric, and radiant systems. It also has a fan control feature that allows you to turn the fan on or off as needed. The thermostat has several other features that make it a convenient and efficient device to use, such as a vacation mode that allows you to save energy while you’re away, and a filter change reminder that lets you know when it’s time to change your air filter. Overall, the Jiahong ST16 Programmable Thermostat is a reliable and user-friendly device that can help you save money and reduce your energy consumption while keeping your home or office comfortable.

WHAT IS IN THE BOX

  • Thermostat
  • Screws
  • User Manual
  • External Sensor

Manufacturer’s suggested retail price for a home thermostat temperature controller

Jiahong-ST16-Programable-Thermostat-FIG-1

Reptile heat mat for an underfloor thermostat: general information
It is a digital programming thermostat for weekly circulation that contains an LCD screen and six daily events. Both manual and programming modes were available. For controlling electric heaters or the on/off valve actuator used in hydronic floor heating, the thermostat is advised.

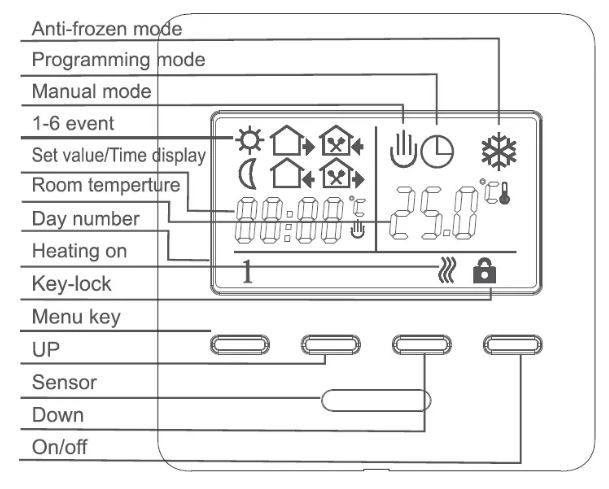

Display symbols

Jiahong-ST16-Programable-Thermostat-FIG-1

HOW TO USE

The Jiahong ST16 Programmable Thermostat is a device that allows you to set up automatic temperature control in your home or office. Here are the steps to use it:

  1. Power on the thermostat by inserting two AA batteries into the back of the device.
  2. Use the touch screen to set the current time and date. Press the “SET” button to confirm your selection.
  3. Press the “MODE” button to select your desired mode of operation, such as “Manual” or “Program.” In “Manual” mode, you can set the temperature manually using the up and down arrows. In “Program” mode, you can set a schedule for the thermostat to follow.
  4. If you are in “Program” mode, use the touch screen to set the temperature for each time period. You can set up to four temperature periods per day.
  5. Press the “SET” button to confirm your temperature settings.
  6. Press the “TIMER” button to set up a countdown timer. This can be useful if you want the thermostat to turn off after a certain amount of time.
  7. Press the “HOLD” button to lock the temperature at a specific setting. This can be useful if you want to maintain a specific temperature regardless of the time of day.
  8. Use the up and down arrows to adjust the temperature setting as needed.

HOW TO INSTALL

Installing the Jiahong ST16 Programmable Thermostat typically involves the following steps:

  1. Turn off the power: Before installing the thermostat, make sure to turn off the power to the HVAC system at the circuit breaker. This will ensure that you don’t accidentally touch any live wires.
  2. Remove the old thermostat: If you’re replacing an old thermostat, you’ll need to remove it first. Typically, this involves removing the cover plate and unscrewing the mounting plate from the wall.
  3. Mount the new thermostat: Once the old thermostat is removed, you can mount the new thermostat. The Jiahong ST16 comes with a mounting plate that can be attached to the wall using screws or double-sided tape. Make sure the mounting plate is level.
  4. Connect the wires: The Jiahong ST16 thermostat will have labeled terminals for each wire that needs to be connected. Refer to the wiring diagram in the user manual to ensure that you connect the wires correctly. If you’re unsure about which wire goes where it’s best to consult a licensed HVAC technician.
  5. Attach the thermostat to the mounting plate: Once the wires are connected, you can attach the thermostat to the mounting plate. The Jiahong ST16 snaps onto the mounting plate, so make sure it’s securely attached.
  6. Turn on the power: After the thermostat is installed and attached to the mounting plate, you can turn the power back on at the circuit breaker. The thermostat should power up and you can follow the instructions in the user manual to program it.

FAQS

Q: What is the Jiahong ST16 Programmable Thermostat?
A: The Jiahong ST16 Programmable Thermostat is a device that controls the heating, ventilation, and air conditioning (HVAC) system in your home or office. It allows you to set different temperature settings throughout the day, based on your schedule and preferences.

Is the Jiahong ST16 Programmable Thermostat energy-efficient?
Yes, the Jiahong ST16 Programmable Thermostat is designed to be energy-efficient by allowing you to set different temperature settings for different times of the day. This can help you save energy and reduce your heating and cooling bills.

What is the warranty period for the Jiahong ST16 Programmable Thermostat?
The Jiahong ST16 Programmable Thermostat comes with a one-year warranty period from the date of purchase. During this period, any defects or issues with the thermostat will be repaired or replaced free of charge.

Q: What is the Jiahong ST16 Programmable Thermostat?
A: The Jiahong ST16 Programmable Thermostat is a device that allows you to set and control the temperature in your home or office. It is designed to help you save energy and money by programming it to automatically adjust the temperature based on your schedule.

Q: How does the Jiahong ST16 Programmable Thermostat work?
A: The Jiahong ST16 Programmable Thermostat works by using sensors to measure the temperature in your home or office. It then uses this information to control your heating and cooling system, turning it on or off as needed to maintain the desired temperature.

Q: How much does the Jiahong ST16 Programmable Thermostat cost?
A: The cost of the Jiahong ST16 Programmable Thermostat varies depending on the model and where you purchase it. However, it is generally considered to be an affordable option compared to other programmable thermostats on the market.

Q: How does the thermostat timer work?
A: When your heating is set to ‘on’ via your boiler timer, your central heating is then controlled by your thermostat. Set your target temperature for the room and your boiler will automatically come on when your home drops below it, and then go off once it’s heated back up again.
Q: How does an underfloor heating thermostat work?
A: Underfloor heating works by distributing a lower temperature of warm water through a circuit of pipes beneath the finished floor. Heat is monitored and controlled by intelligent thermostats to maintain a consistent temperature throughout the property or individual zones.
Q:  Where is the best position for an underfloor heating thermostat?
A: The thermostat should be positioned in a place where it will be able to sense the average temperature in that area. It should not be in direct sunlight or in a draughty area. It should also not be placed near any appliances as they can emit heat, which could give false readings to the thermostat.
Q: What is the maximum height for a thermostat?
A: (They do not apply to private homes that rent fewer than five rooms.) To ensure that people in wheelchairs can reach and adjust the setpoint without assistance, ADA rules specify thermostat placement to be no higher than 48 inches (121 cm) above the floor (assuming no other obstructions are below it).
