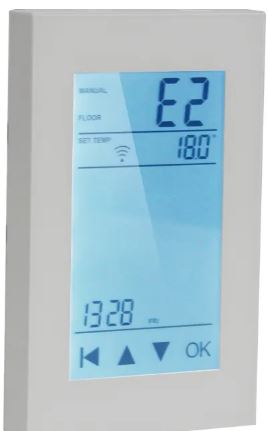

Jiahong ET-72G Programable Smart Touch Screen Thermostat
Specification
- Warranty: 4 years
- After–sale Service: Online technical support, Return and Replacement
- Project Solution Capability: graphic design, 3D model design, total solution for projects
- Place of Origin: Anhui, China
- Model Number: ET-72G
- Floor Heating Part Type: Floor Heating Thermostats
- Power Voltage: 85v-265v, 50Hz/60Hz
- Sensor temperature: 0-45℃
- Function: Control Temperature
- Design Style: Modern
- Brand Name: jiahong
- Type: Floor Heating Parts
- Product name: high quality and cheap price floor electric thermostat floor heating
- Brand name: OEM
Introduction
The Jiahong ET-72G Programmable Smart Touch Screen Thermostat is a thermostat designed for controlling heating and cooling systems in residential and commercial settings. It features a sleek touch screen display with an intuitive interface, making it easy to set and adjust temperature settings. The Jiahong ET-72G allows users to program up to six different temperature settings per day of the week, making it a customizable and energy-efficient option. The Jiahong ET-72G also includes several advanced features, such as Wi-Fi connectivity, allowing for remote control and monitoring through a smartphone app. It is also compatible with Amazon Alexa and Google Assistant, enabling voice control of temperature settings.
Additionally, the Jiahong ET-72G includes energy-saving features like a “vacation” mode and a “smart adaptive” function, which adjusts the temperature based on usage patterns. the Jiahong ET-72G Programmable Smart Touch Screen Thermostat is a modern and user-friendly option for controlling indoor temperature and promoting energy efficiency.
What Is In The Box
- Thermostat
- User Manual
- Screws
- External Sensor

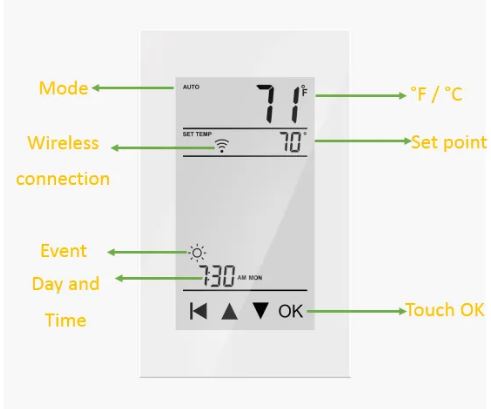

Description

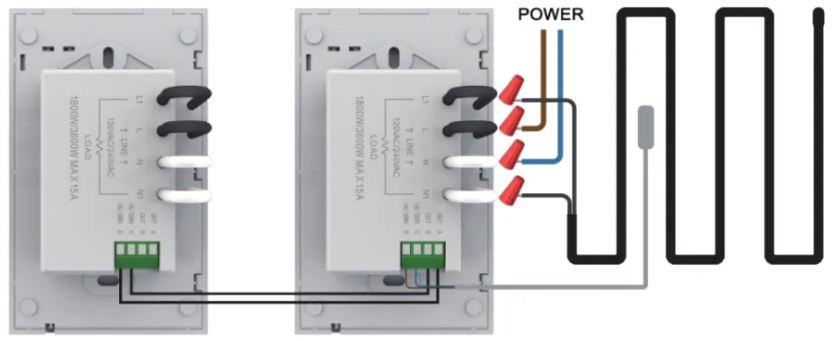

Wiring Diagram
Function
- Built-in Class A 5mA GFCI
- Home and Office mode Switch
- Weekly program: 7 Days = 7 individual days, 5+1+1 days = week days+Saturday+Sunday
- 4 Periods per day : Wake up, Leave, Return, Sleep
- Adaptive function: Automatically collect latest 3 days preheating time data, preheat just in time.
- Readout function: Power consumption in 1Day, 30Days, and 365Days.

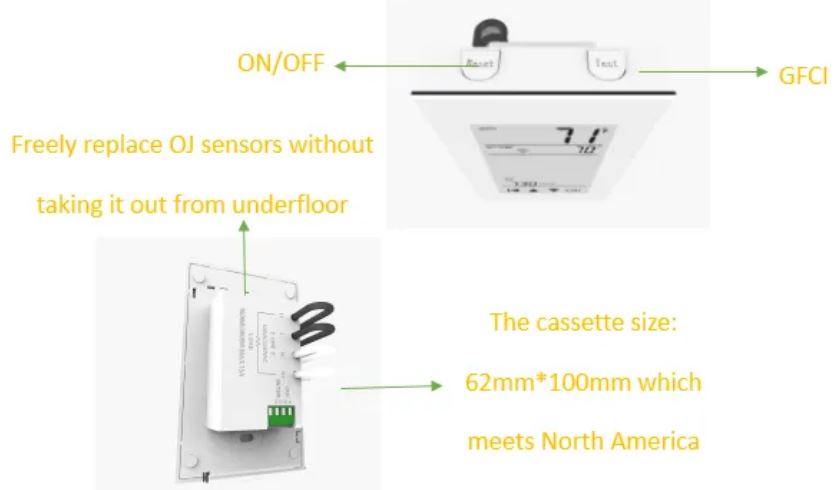

- Freely replace OJ sensors without taking it out from underfloor.
- Wi-Fi version support Alexa and Google home: try this “Alexa, please turn on my living room thermostat to 85°F”
- 3-year warranty
- cETLus approved
HOW TO OPERATE
- Power on the thermostat by connecting it to a power source and turning on the circuit breaker.
- Press the “Menu” button on the touchscreen display to access the main menu.
- Use the up and down arrows to navigate through the menu options and press “OK” to select an option.
- Set the current time and date by selecting the “Time” option in the main menu and following the prompts.
- Program the temperature settings by selecting the “Program” option in the main menu and setting the temperature and time for each day of the week.
- Use the “Smart Adaptive” feature to allow the thermostat to learn and adjust the temperature based on your habits and preferences.
- Use the “Vacation” mode to set a temporary temperature adjustment while you are away from home.
- Control the thermostat remotely through the smartphone app by connecting the thermostat to your Wi-Fi network and downloading the app.
- Use voice commands to control the thermostat through Amazon Alexa or Google Assistant.
- Adjust the temperature manually by pressing the up and down arrows on the touch screen display.
- Set a password to prevent unauthorized access to the thermostat by selecting the “Security” option in the main menu and following the prompts.
- Control humidifiers and dehumidifiers by selecting the “Humidity” option in the main menu and following the prompts.
Application
Wi-Fi version support Alexa and Google home: try this “Alexa, please turn on my living room thermostat to 85°F”

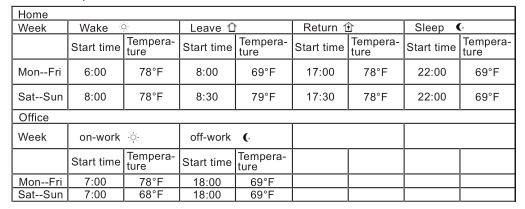

Period Parameter Table
Installation
Wiring Installation
- L/N lead: Connect the power cord using the terminal block.
- L1/N1 lead: Use a terminal block to connect the load line.
- IN/SNR terminal: Connect the floor sensor.
- OUT terminal: Connect to IN/SNR of power module.
FAQS
Q: What is the Jiahong ET-72G thermostat?
A: The Jiahong ET-72G is a programmable smart touch screen thermostat designed for controlling heating and cooling systems in residential and commercial settings.
Q: What are the key features of the Jiahong ET-72G thermostat?
A: The key features of the Jiahong ET-72G thermostat include touch screen display, programmable scheduling, Wi-Fi connectivity, voice control compatibility, energy-saving features, and easy installation.
Q: Is the Jiahong ET-72G thermostat easy to install?
A: Yes, the Jiahong ET-72G thermostat is easy to install and can be done without professional help.
Q: What type of heating and cooling systems is the Jiahong ET-72G thermostat compatible with?
A: The Jiahong ET-72G thermostat is compatible with most heating and cooling systems, including gas, oil, electric, and heat pumps.
Q: Can I control the Jiahong ET-72G thermostat remotely?
A: Yes, you can control the Jiahong ET-72G thermostat remotely through a smartphone app.
Q: Does the Jiahong ET-72G thermostat have Wi-Fi connectivity?
A: Yes, the Jiahong ET-72G thermostat has Wi-Fi connectivity.
Q: Is the Jiahong ET-72G thermostat compatible with voice control devices like Amazon Alexa and Google Assistant?
A: Yes, the Jiahong ET-72G thermostat is compatible with Amazon Alexa and Google Assistant, allowing for voice control of temperature settings.
Q: How many temperature settings can I program on the Jiahong ET-72G thermostat?
A: You can program up to six different temperature settings per day of the week on the Jiahong ET-72G thermostat.
Q: What is the “smart adaptive” function on the Jiahong ET-72G thermostat?
A: The “smart adaptive” function on the Jiahong ET-72G thermostat adjusts the temperature based on usage patterns to help save energy.
Q: What is the “vacation” mode on the Jiahong ET-72G thermostat?
A: The “vacation” mode on the Jiahong ET-72G thermostat allows you to set a temporary temperature adjustment while you are away from home.
Q: Does the Jiahong ET-72G thermostat have a touch screen display?
A: Yes, the Jiahong ET-72G thermostat has a touch screen display.
Q: Is the touch screen display on the Jiahong ET-72G thermostat easy to read?
A: Yes, the touch screen display on the Jiahong ET-72G thermostat is easy to read and has a backlight for visibility in low-light conditions.
Q: Can I set a password on the Jiahong ET-72G thermostat?
A: Yes, you can set a password on the Jiahong ET-72G thermostat to prevent unauthorized access.
Q: Can multiple users control the Jiahong ET-72G thermostat?
A: Yes, multiple users can control the Jiahong ET-72G thermostat through the smartphone app.
Q: Is the Jiahong ET-72G thermostat compatible with humidifiers and dehumidifiers?
A: Yes, the Jiahong ET-72G thermostat is compatible with humidifiers and dehumidifiers and can control their operation.
