HYSEN HY603 WIFI 5+2 Day Programmable Thermostat User Manual

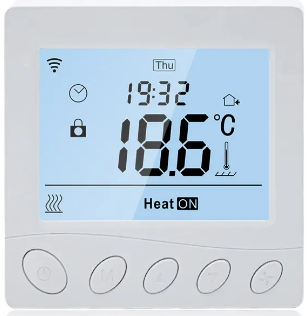

HYSEN HY603 WIFI 5+2 Day Programmable Thermostat

Specification

• Warranty: 2 years
• Floor Heating Valve: No limitation
• After-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
• Material: Anti-flammable PC +ABS
• Project Solution Capability: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
• Application: Apartment
• Design Style: Contemporary
• Place of Origin:Guangdong, China
• Brand Name:Rti-Tek
• Model Number: R3W.723S
• Type: Floor Heating Parts
• Floor Heating Part Type: Floor Heating Thermostats
• Communication protocol: Modbus
• Current Load:3A (Boiler Heating)
• Supply Voltage:100~240VAC, 50~60Hz
• Power Consumption: 3W Max
• Temp. Setting Range:5~95°C
• Floor Limited Range:20~90°C
• Switching Differential:±0.5~10°C
• Ambient Temperature:-5~50°C
• Degree of Protection: IP20
• Sensor Type: NTC Sensor

Introduction

The HYSEN HY603 WiFi 5+2 Day Programmable Thermostat is a versatile and feature-rich device that offers precise temperature control and energy efficiency for your home or office. With its WiFi connectivity and programmable capabilities, this thermostat allows you to easily manage and customize your heating and cooling systems. The HYSEN HY603 thermostat features a user-friendly interface and a sleek design. Its programmable functionality enables you to set different temperature schedules for weekdays and weekends (5+2 Day), allowing you to tailor the heating and cooling settings to your specific routines and preferences. One of the key features of the HYSEN HY603 thermostat is its WiFi connectivity. By connecting to your home or office network, you can remotely control and monitor the thermostat from anywhere using a smartphone or tablet. This means you can adjust the temperature settings, switch between heating and cooling modes, and even monitor energy usage while on the go.

The thermostat’s programmable nature allows you to optimize energy efficiency. You can create customized temperature schedules based on your daily activities, ensuring that your heating or cooling system operates only when needed, thereby reducing energy waste and lowering utility costs. The HYSEN HY603 thermostat provides a clear and intuitive display of the current temperature, as well as other information such as time, date, and mode. This makes it easy to read and adjust settings directly on the thermostat itself.

The HYSEN HY603 thermostat is compatible with a variety of HVAC systems, including central heating and cooling systems, heat pumps, and electric or gas systems. This versatility makes it suitable for both residential and commercial applications. Tthe HYSEN HY603 WiFi 5+2 Day Programmable Thermostat offers convenience, energy efficiency, and customization for your heating and cooling needs. With its WiFi connectivity, programmable features, and compatibility with various HVAC systems, it provides a reliable and user-friendly solution for temperature control in your space.

What Is In The Box

• Thermostat
• User Manual
• Screws
• External Sensor

Precise Control

Work With Alexa

Voice Control

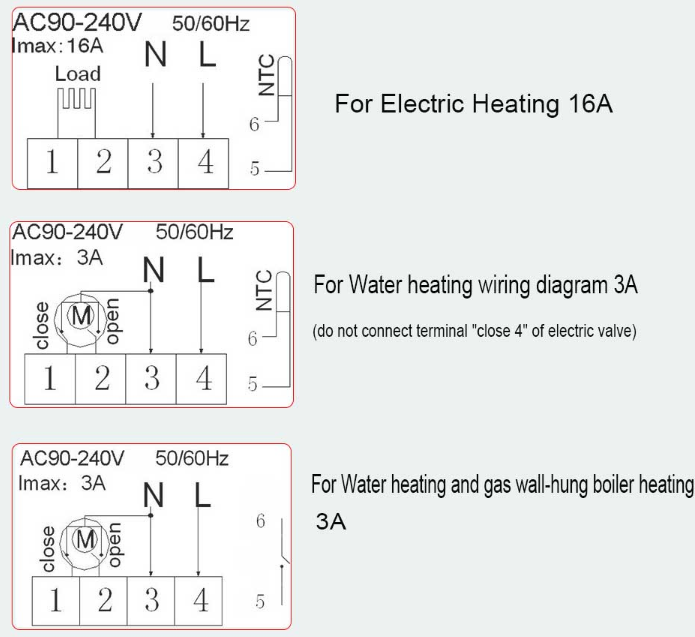

Wiring

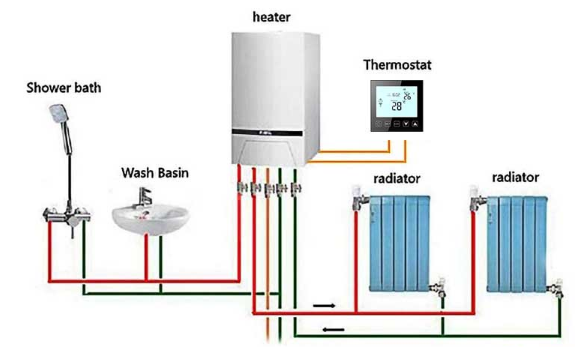

Installation

FAQS

How does the HYSEN HY603 thermostat connect to WiFi?
The HYSEN HY603 thermostat connects to WiFi by connecting to your home or office network. You will need to enter your network’s SSID and password during the setup process.

Can I control the thermostat remotely?
Yes, you can control the HYSEN HY603 thermostat remotely using a smartphone or tablet via a WiFi connection. You can adjust temperature settings and access other features from anywhere with an internet connection.

Does the thermostat have a programmable schedule?
Yes, the HYSEN HY603 thermostat offers a programmable schedule feature. It follows a 5+2 Day schedule, allowing you to set different temperature schedules for weekdays and weekends based on your routine.

Can I adjust the temperature directly on the thermostat?
Yes, you can adjust the temperature directly on the HYSEN HY603 thermostat itself. It features a user-friendly interface that displays the current temperature and other relevant information.

Is the thermostat compatible with voice control systems like Amazon Alexa or Google Assistant?
The HYSEN HY603 thermostat may not be explicitly mentioned as compatible with voice control systems. To confirm its compatibility, it’s advisable to check the product specifications or contact the manufacturer.

Does the thermostat have energy-saving features?
Yes, the HYSEN HY603 thermostat has energy-saving features. With its programmable schedule, you can optimize energy usage by setting specific temperature settings for different times of the day or week.

Can I monitor energy usage with this thermostat?
The HYSEN HY603 thermostat may not provide built-in energy usage monitoring. It’s recommended to consult the product documentation or contact the manufacturer for specific details regarding energy monitoring capabilities.

Can I set up multiple temperature schedules for different zones in my home?
The HYSEN HY603 thermostat is primarily designed for a single zone. If you require multiple temperature schedules for different zones, you may need multiple thermostats or consider a zoning system.

Can I lock the thermostat to prevent unauthorized changes?
The ability to lock the HYSEN HY603 thermostat may vary. It’s recommended to refer to the product documentation or contact the manufacturer for specific information on locking features.

Does the thermostat have a vacation mode?
The availability of a vacation mode on the HYSEN HY603 thermostat may vary. It’s advisable to refer to the product documentation or contact the manufacturer for specific feature inquiries.

Is the thermostat compatible with all HVAC systems?
The HYSEN HY603 thermostat is compatible with a variety of HVAC systems, including central heating and cooling systems, heat pumps, and electric or gas systems. However, it’s always recommended to check the compatibility with your specific system before purchasing.

Can I receive temperature alerts or notifications on my smartphone?
The HYSEN HY603 thermostat may not provide temperature alerts or notifications. For specific information on notification features, it’s best to refer to the product documentation or contact the manufacturer.

Does the thermostat support geofencing?
Geofencing is not explicitly mentioned as a feature of the HYSEN HY603 thermostat. For geofencing capabilities, it’s recommended to refer to the product specifications or contact the manufacturer for specific details.

Can I integrate the thermostat with other smart home devices or platforms?
The HYSEN HY603 thermostat may not have explicit integration capabilities with other smart home devices or platforms. For integration possibilities, it’s advisable to check the product documentation or contact the manufacturer.
