Hysen HY517 Underfloor Heating Room Thermostat User Manual

Hysen-HY517-Underfloor-Heating--Room-Thermostat-LOGO

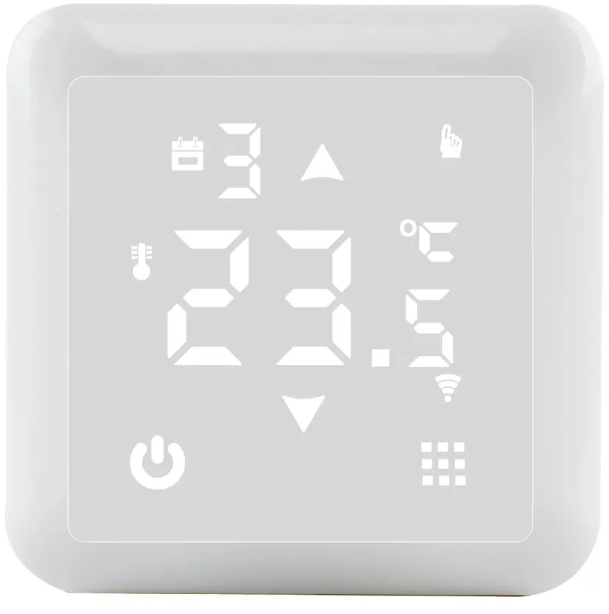

Hysen HY517 Underfloor Heating Room Thermostat

Hysen-HY517-Underfloor-Heating--Room-Thermostat-PRODUCT

INTRODUCTION

The Hysen HY517 Underfloor Heating Room Thermostat is a device designed to control and regulate the temperature of underfloor heating systems in residential and commercial spaces. It offers advanced features and user-friendly functionality to enhance comfort and energy efficiency.

The HY517 thermostat is specifically designed for electric underfloor heating systems and is compatible with various types of floor sensors. It provides precise temperature control and allows users to set different heating schedules and preferences for individual rooms or zones.

One of the key features of the Hysen HY517 thermostat is its programmability. Users can easily program the thermostat to follow specific temperature schedules throughout the day. This enables automated temperature adjustments based on your daily routine, ensuring that your space is comfortably heated when needed.

The thermostat incorporates a clear and easy-to-read LCD display that shows the current temperature, set temperature, and other relevant information. The intuitive interface allows users to navigate through the thermostat’s settings and make adjustments with ease.

Additionally, the Hysen HY517 thermostat offers energy-saving features. It includes a built-in temperature sensor that can detect both air and floor temperatures, enabling more accurate temperature control and efficient energy usage. This helps to reduce energy consumption and lower heating costs.

The HY517 thermostat is wall-mounted and operates on a 230V AC power supply. It is designed to be user-friendly and installation-friendly, with straightforward wiring connections and clear instructions.

In summary, the Hysen HY517 Underfloor Heating Room Thermostat is a reliable and programmable device that provides precise temperature control and energy efficiency for electric underfloor heating systems. With its user-friendly interface and advanced features, it offers enhanced comfort and convenience for users seeking efficient heating solutions.

Product installation and detail

Installing the Hysen HY517 Underfloor Heating Room Thermostat is a relatively straightforward process. Here’s a general step-by-step guide to help you with the installation:

  1. Turn off the power: Before beginning the installation, make sure to turn off the power supply to the underfloor heating system at the circuit breaker or fuse box.
  2. Choose the installation location: Select a suitable location on the wall for mounting the thermostat. It should be easily accessible and at a height where you can read the display comfortably.
  3. Wire connections: The HY517 thermostat typically requires wiring connections for power, heating output, and a floor sensor (if applicable). Follow these general guidelines, but refer to the specific instructions provided by Hysen for accurate wiring details:
  4. a. Connect the thermostat to the power supply: Ensure that the power is off. Connect the L (live) and N (neutral) wires from the power supply to the corresponding terminals on the thermostat.
  5. b. Connect the heating output: Connect the wires from the underfloor heating system to the heating output terminals (typically labeled “Load” or similar) on the thermostat.
  6. c. Connect the floor sensor (if applicable): If your HY517 thermostat includes a floor sensor for measuring floor temperature, connect its wires to the appropriate terminals on the thermostat.

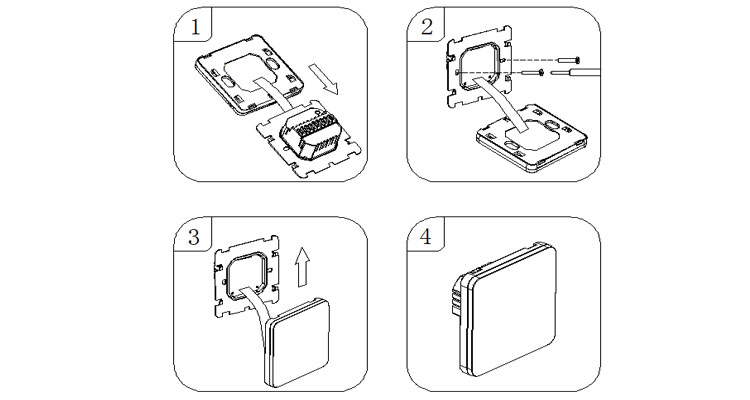

  7. Mount the thermostat: Use the provided screws and wall anchors to mount the thermostat onto the wall at the chosen location. Make sure it is securely attached.
  8. Floor sensor placement (if applicable): If you are using a floor sensor, follow the manufacturer’s guidelines to position it correctly. Typically, it is placed beneath the floor covering at a representative location, such as in the center of the room.
  9. Restore power: Once all the wiring is complete and the thermostat is securely mounted, you can restore power to the underfloor heating system by turning on the circuit breaker or fuse.
  10. Initial setup: The HY517 thermostat may require an initial setup process to configure basic settings such as language, temperature units, and other preferences. Follow the instructions provided in the user manual to complete the setup.
  11. Test and calibrate: After installation, test the thermostat by setting a desired temperature and ensuring that the underfloor heating system responds accordingly. If necessary, you may need to calibrate the thermostat to achieve accurate temperature control. Refer to the user manual for instructions on calibration procedures.

Hysen-HY517-Underfloor-Heating--Room-Thermostat-1

Products Description

HY517 WIFI
Used for electric floor heating, infrared heater or water floor heating/manifold/valve
  • APP Remote Control
  • Work with Alexa and Google Assistant
  • High-efficiency
  • Flame Retardant Material
  • Weekly Programmable
  • Up to 0.5°C accuracy, precise control
  1. Including a built-in sensor and an external sensor.
  2. 0.5°C accuracy keeps the temperature within the level you set.
  3. Children lock to prevent misoperation by children.
  4. Data memory when power is off.
  5. Holiday mode makes you enjoy a more comfortable temperature on holiday.
  6. The temperature of the external sensor can be checked.

Product Specifications

Power:
90-240Vac 50/60HZ
Display accuracy:
0.5°C
Probe sensor:
NTC(10k)1%
Contact capacity:
3A/250V(WW);16A/250V(WE)
Limit temperature range:
1~70°C
Range of temperature adjustment:
5~35°C
Range of temperature display:
1~70°C
Insulating condition:
Normal environment
Running program:
Set per 1 week as a cycle
Output:
Switch relay
Installation:
Recessed type (in the wall)
Size(mm):
86*86*27

USAGE

Using the Hysen HY517 Underfloor Heating Room Thermostat is relatively straightforward. Here are some key points on how to use and operate the thermostat effectively:

  1. Power On: Ensure that the power supply to the underfloor heating system is turned on at the circuit breaker or fuse box.
  2. Display and Interface: The HY517 thermostat features an LCD display that shows the current temperature, set temperature, and other relevant information. Familiarize yourself with the interface and buttons on the thermostat.
  3. Temperature Adjustment: To adjust the temperature, press the up or down buttons on the thermostat. The display will show the selected temperature. Keep in mind that the thermostat controls the underfloor heating system, so it may take some time for the temperature to adjust.
  4. Programming Schedules: The HY517 thermostat allows you to create heating schedules based on your preferences. You can set different temperature levels for different times of the day or specific days of the week. Refer to the user manual for instructions on how to program schedules on your specific model.
  5. Manual Override: If you want to temporarily override the programmed schedule and set a different temperature, you can do so by manually adjusting the temperature using the thermostat’s interface.
  6. Floor Sensor (if applicable): If your HY517 thermostat is equipped with a floor sensor, it can measure the floor temperature for more accurate temperature control. The thermostat will consider both the air and floor temperature to maintain the desired level of comfort.
  7. Energy-Saving Mode: Some models of the HY517 thermostat may offer an energy-saving mode. This mode adjusts the temperature to optimize energy usage and reduce heating costs. Consult the user manual to understand how to enable and utilize this feature.
  8. Troubleshooting and Maintenance: Regularly check the thermostat for any maintenance or troubleshooting alerts. If you encounter any issues or errors, consult the user manual or contact Hysen’s customer support for assistance.
  9. User Preferences: The HY517 thermostat may offer additional customization options, such as temperature unit selection (Celsius or Fahrenheit), language settings, and screen brightness adjustment. Explore the thermostat’s menu or refer to the user manual to personalize these settings.

FAQS

What type of underfloor heating system is the Hysen HY517 thermostat compatible with?

The HY517 thermostat is specifically designed for electric underfloor heating systems.

Can I control multiple HY517 thermostats in different rooms from one central location?

No, the HY517 thermostat operates independently in each room and cannot be centrally controlled.

How do I adjust the temperature on the HY517 thermostat?

Use the up and down buttons on the thermostat to adjust the temperature to your desired level.

Does the HY517 thermostat have a programmable schedule feature?

Yes, the HY517 thermostat allows you to set different temperature schedules for different times of the day or specific days of the week.

Can I manually override the programmed schedule on the HY517 thermostat?

Yes, you can manually adjust the temperature on the thermostat to override the programmed schedule temporarily.

Does the HY517 thermostat support floor temperature sense?

Some models of the HY517 thermostat come with a floor sensor that measures the floor temperature for more accurate control. Check the specific model documentation to confirm if it includes this feature.

Does the HY517 thermostat have an energy-saving mode?

Some models of the HY517 thermostat offer an energy-saving mode that optimizes energy usage. Consult the user manual for instructions on enabling and utilizing this mode.

How do I install the HY517 thermostat?

The installation process may vary depending on the specific model and electrical system. Refer to the manufacturer’s installation instructions and guidelines for accurate installation details.

Can I set temperature limits on the HY517 thermostat?

Some models of the HY517 thermostat may allow you to set temperature limits to prevent excessive heating. Check the user manual or consult the manufacturer for specific instructions.

Does the HY517 thermostat have a backlight for easy visibility?

Yes, many models of the HY517 thermostat come with a backlight for improved visibility in low-light conditions.

Is the HY517 thermostat compatible with smart home systems or voice control?

No, the HY517 thermostat does not typically support smart home integration or voice control.

Does the HY517 thermostat have a battery backup?

No, the HY517 thermostat is powered by the electrical supply and does not have a battery backup.

Can I lock the thermostat to prevent unauthorized access or changes?

Some models of the HY517 thermostat offer a lockout feature to prevent unauthorized access or changes. Refer to the user manual for instructions on how to enable and use this feature.

How can I troubleshoot common issues with the HY517 thermostat?

The user manual typically provides troubleshooting steps for common issues. Refer to the manual or contact Hysen’s customer support for assistance.

Is technical support available for the Hysen HY517 thermostat?

Yes, Hysen typically provides technical support for their products. You can contact their customer support team for assistance with any technical issues or queries.
