Hysen HY06BW Wifi Gas Boiler Thermostat User Manual

Hysen-logo

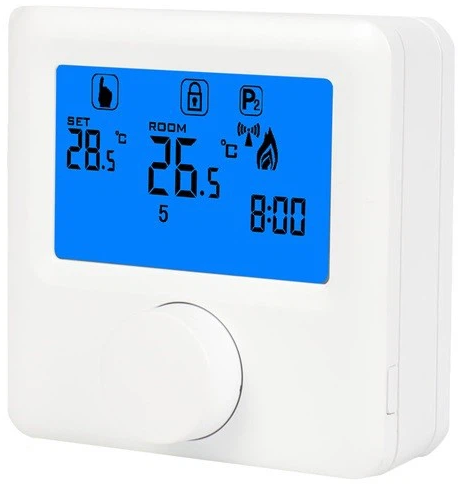

Hysen HY06BW Wifi Gas Boiler Thermostat

Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat - pro

Product Specifications

  • Power: two AA* 1.5V alkaline batteries
  • Display accuracy:0.5℃ or 1°F
  • Probe sensor:NTC(10k)1%
  • Contact capacity: 5A/30VDC(HF relay) 2A/30VDC(NEC relay);
  • Working environment temperature: 0~50°C/32~122°F
  • Range of temperature adjustment: 5~35°C/41~95°F
  • Range of temperature display:0~40°C/32~99°F
  • Output: Switch relay
  • Insulating condition: Normal environment
  • Running program: Set per 1 week as a cycle
  • Installation: Wall mounted or on battery seat
  • Size(mm):140*91*27 and 86*86*29

Function Description

Thermostat HY04BW, HY06BW supplies single heating contact output or single cooling output contact,to get room temperature via sensor and compare with a thermostat setting temperature, achieve close and open of output contact, switching temperature difference is 0.5℃

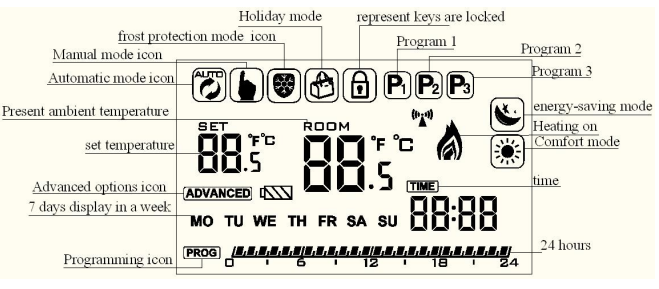

Display And ButtonHysen -HY06BW- Wifi -Gas- Boiler -Thermostat -1

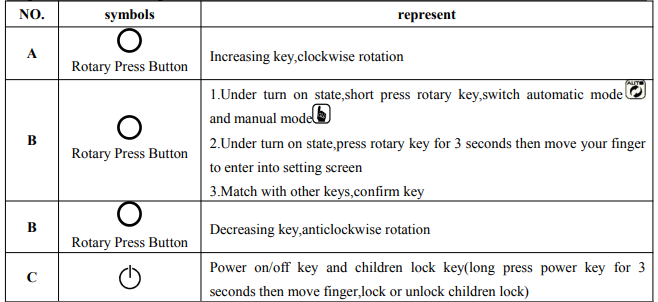

Operation KeyHysen -HY06BW- Wifi -Gas- Boiler -Thermostat -2

Main Setting Screen

Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -3



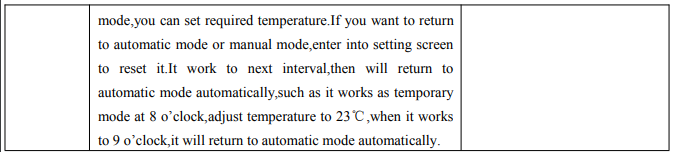

Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -4

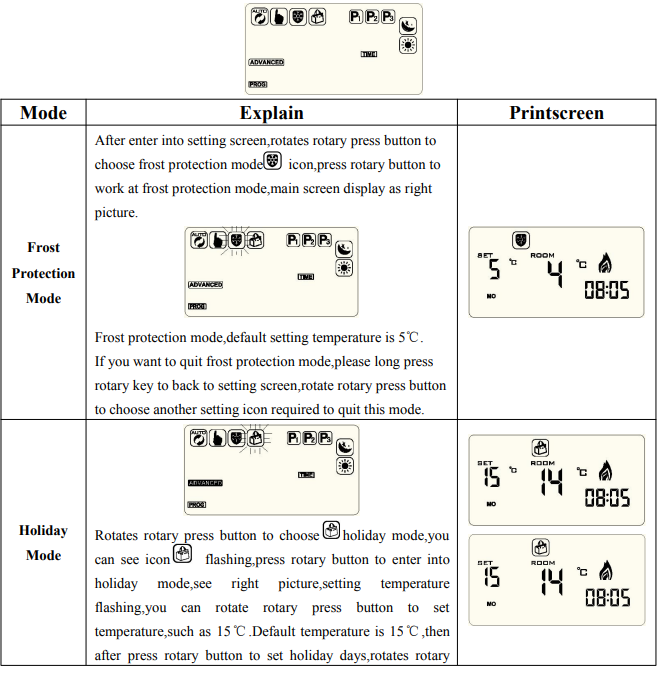

Long press the rotary ENTER key for 3 seconds, enter into the setting screen, choose the icon you need to set, rotate the rotary press button to choose the icon you need to set, then press enter key to enter into the setting,skip the icon that need not set directory.

Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -5 Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -6

Programmable Mode Setting

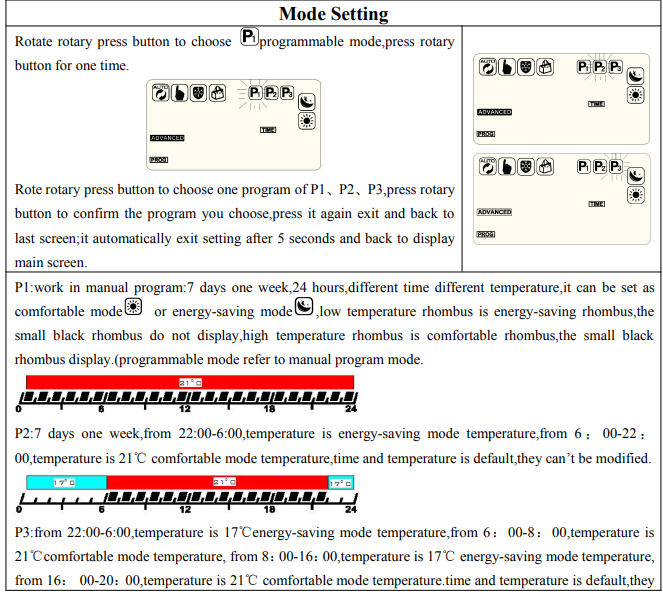

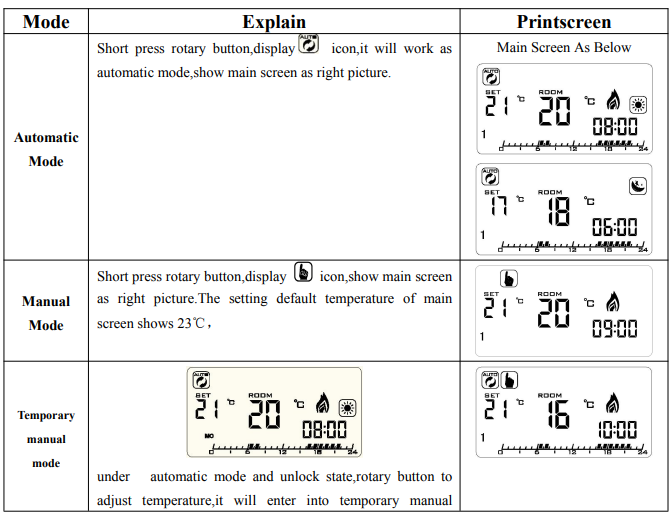

HY04BW, HY06BW wall-hung boiler thermostat can set (comfortable mode) and (energy-saving mode)two kinds of different temperatures;it offers P1、P2、P3 three kinds of programs chooseHysen -HY06BW- Wifi -Gas- Boiler -Thermostat -7

Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -8

  • P1:work in manual program:7 days one a week,24 hours, at different time and different temperature, it can be set as comfortable mode or energy-saving mode, a low-temperature rhombus is an energy-saving rhombus, a small black rhombus do not display, a high-temperature rhombus is a comfortable rhombus, the small black rhombus display.(programmable mode refers to manual program mode.
  • P2:7 days one week, from 22:00-6:00, the temperature is energy-saving mode temperature, from 6:00-22:00, the temperature is 21℃ comfortable mode temperature, time and temperature is the default, they can’t be modified.
  • P3:from 22:00-6:00, temperature is 17℃energy-saving mode temperature,from6:00-8:00,temperatureis21℃comfortable mode temperature, from 8:00-16:00, temperature is 17℃energy-saving mode temperature, from 16: 00-20:00, the temperature is 21℃ comfortable mode temperature. time and temperature is the default,they can’t be modified. From Monday to Friday is a working day

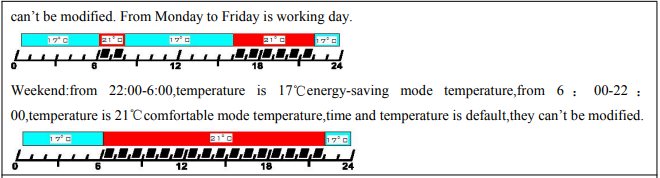

  • Weekend: from 22:00-6:00, the temperature is 17℃energy-saving mode temperature, from 6 00-22 : 00, the temperature is 21℃comfortable mode temperature, time and temperature is the default, they can’t be modified

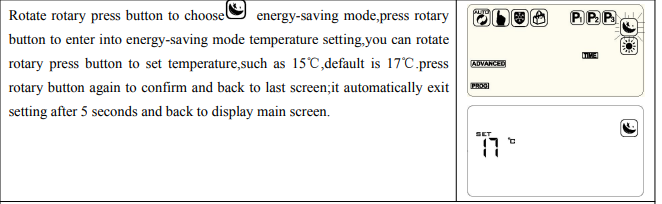

Energy-saving Mode Temperature Setting
Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -9

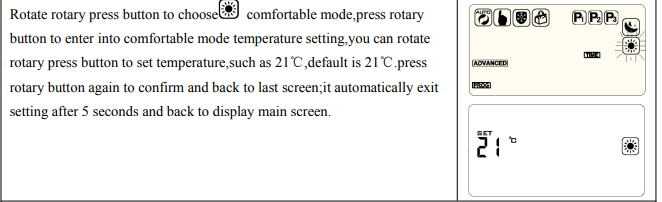

Comfortable Mode Temperature SettingHysen -HY06BW- Wifi -Gas- Boiler -Thermostat -10

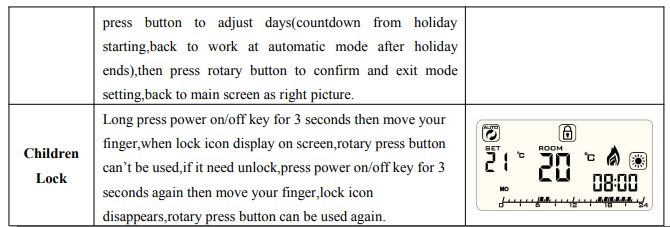

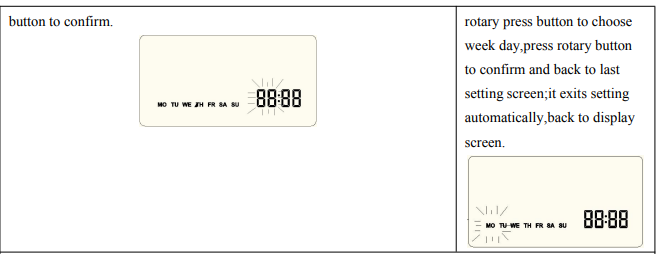

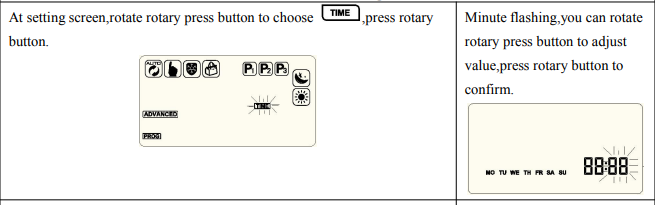

Timer SettingHysen -HY06BW- Wifi -Gas- Boiler -Thermostat -11 Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -12

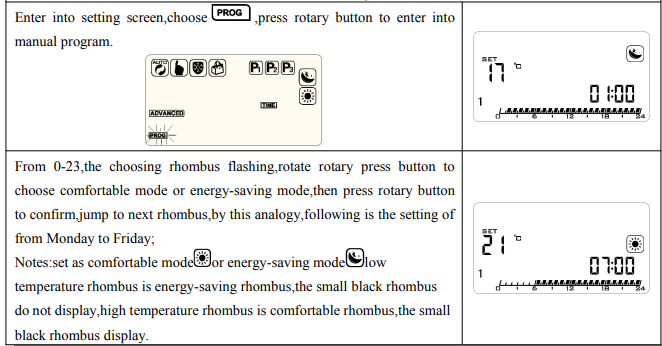

Manual Program

Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -13

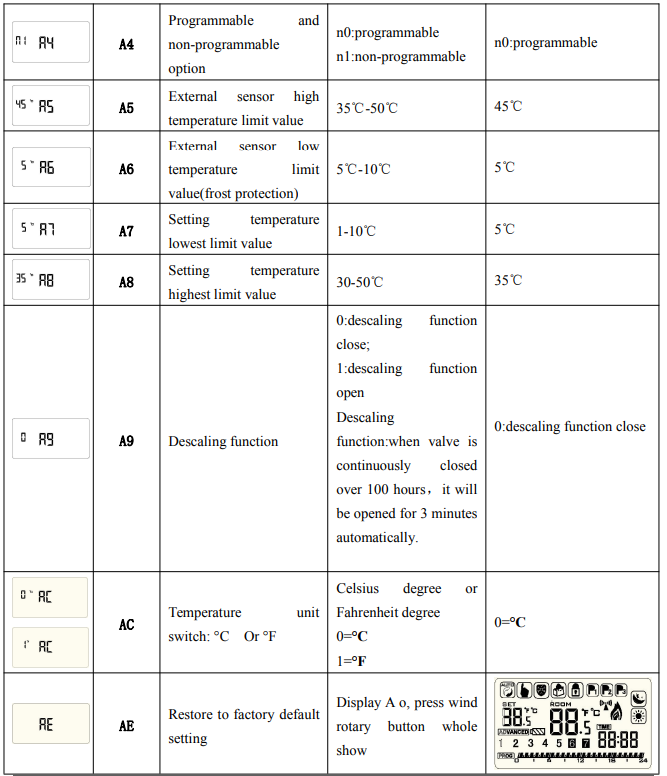

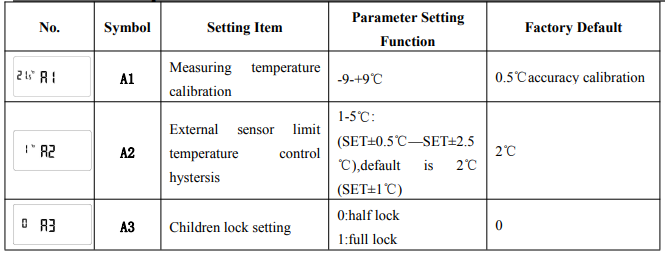

Advanced OptionsHysen -HY06BW- Wifi -Gas- Boiler -Thermostat -14 Hysen -HY06BW- Wifi -Gas- Boiler -Thermostat -15

Cautions On Installation And Use

  • To prevent the thermostat display from high fluctuation, special treatment has been made to the program. Therefore, it is normal that the thermostat cannot immediately display a sudden change in temperature.
  • The thermostat was installed 1.5m above the ground.
  • For the thermostat installed, please take care not to install it on the wall corner, door/window side or behind the door, or in such unheated areas as the exterior wall. Avoid hot/cold air ducts, radiators, flue, or thermal pipes.
  • If you have any problem for the installation, please contact our company Hysen, and we will make a demonstration for you
  • Only professional technicians are permitted to open the transmitting and receiving box of the thermostat for installation. When installing the power supply, make sure that the power cable is well insulated.
  • The thermostat is an unrepairable product. The user shall not open the internal circuit board.
  • Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the requirements specified in the Instruction Manual (Max. ACVoltage: 250V)

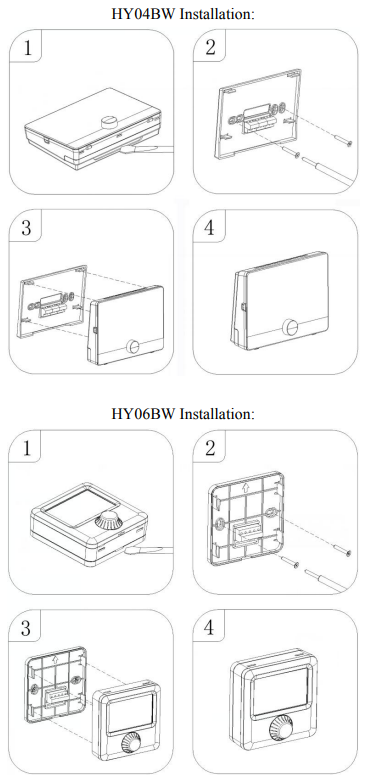

InstallationHysen -HY06BW- Wifi -Gas- Boiler -Thermostat -17

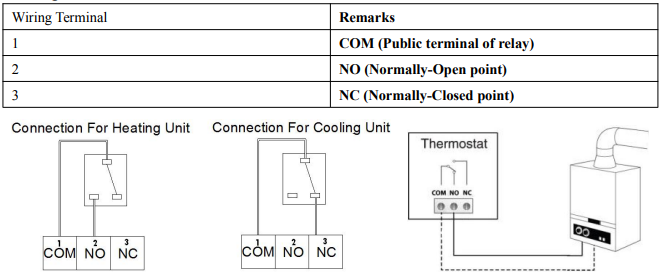

WiringHysen -HY06BW- Wifi -Gas- Boiler -Thermostat -16

Warranty

We offer a warranty of 12 months, from the sales day. The products of our company can have a lifetime warranty, if it is not the quality problems, or beyond the warranty period, we will charge for the after-sale service.
