Hunter 44920 Internet Thermostat

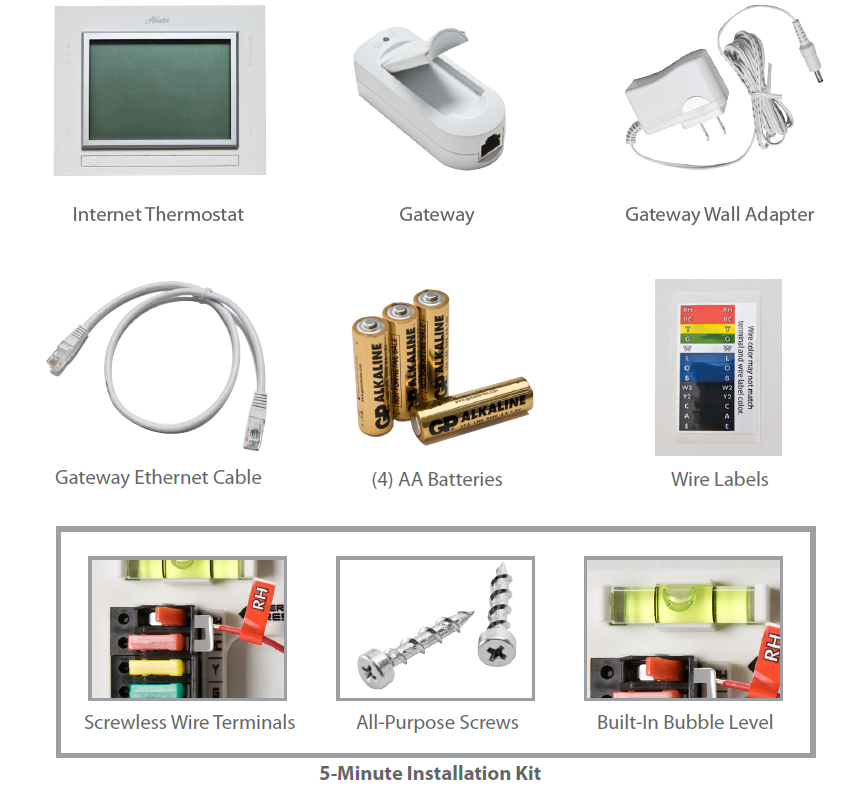

Inside the Box

Setup

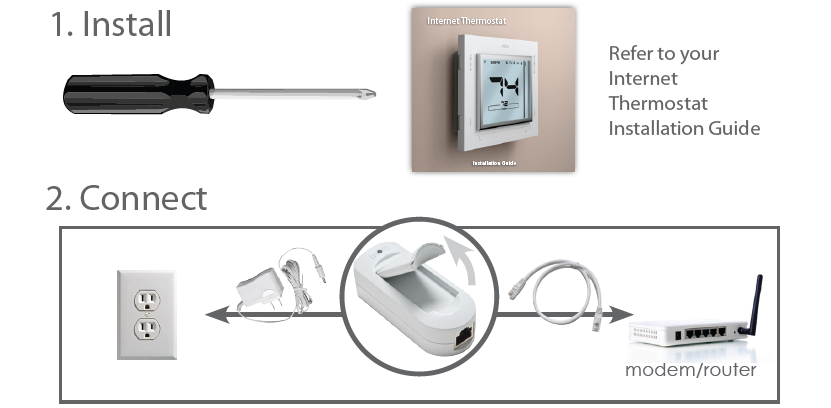

1. install
2. connect
   When the gateway light turns green, your thermostat will automatically connect to the internet.
   Tip: Lift the gateway antenna to improve connectivity
3. Register my.HunterFan.com

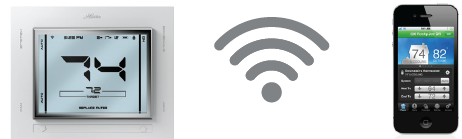

4. ControlControl from any smartphone, tablet, laptop or desktop computer.

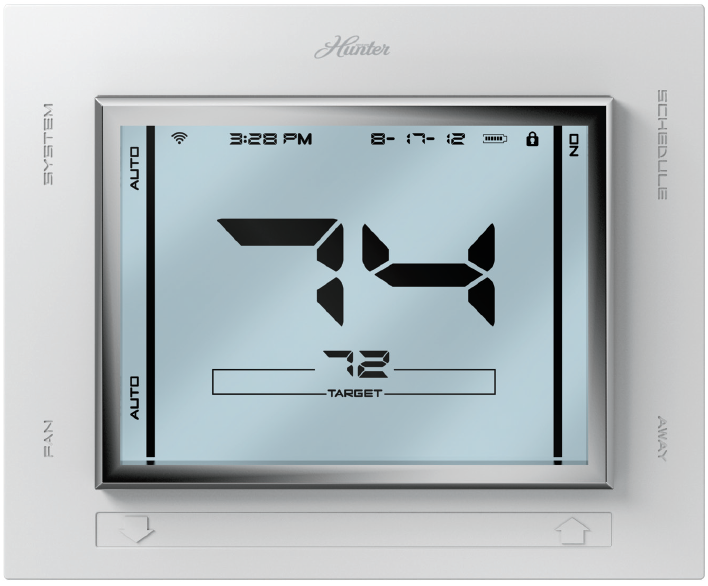

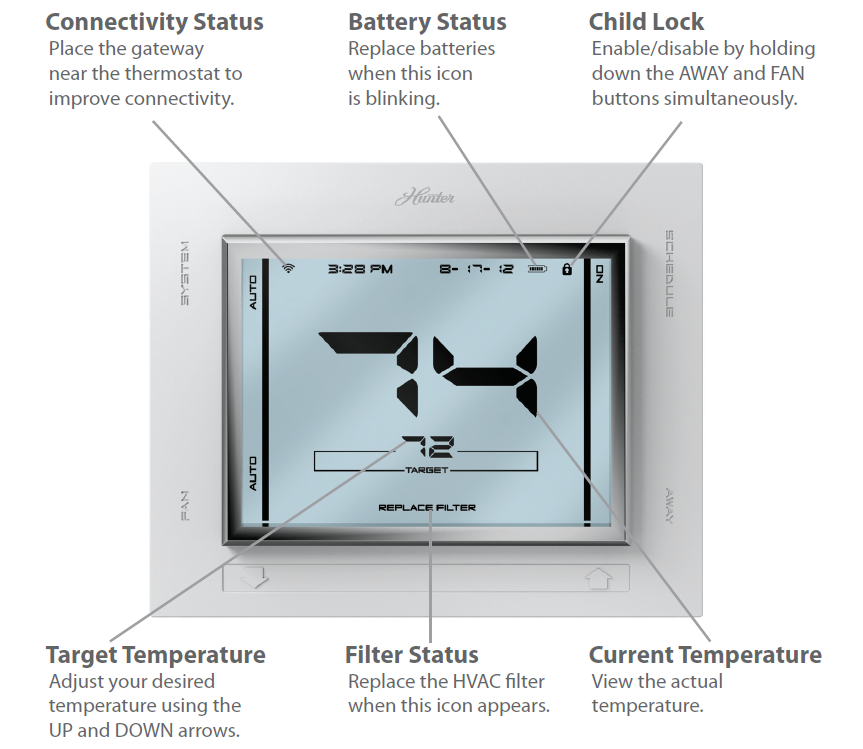

Product Features

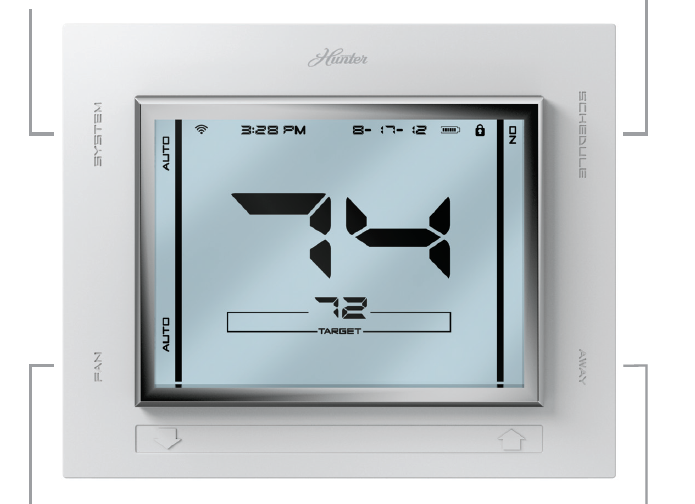

Functions

System Button

1. OFF turns off your HVAC system.
2. COOL only turns on the AC.
3. HEAT only turns on the furnace.
4. AUTO heats or cools based on your setpoints.

Schedule Button

1. ON runs schedules defined on your app and at my.HunterFan.com.
2. OFF runs your unit manually.

Fan Button

• AUTO turns the fan on only when heating or cooling.
• ON turns the fan on to circulate air without heating or cooling.

Away Button
conserves energy while you are away from your home. Define away setpoints on your thermostat, app, and at my.HunterFan.com.

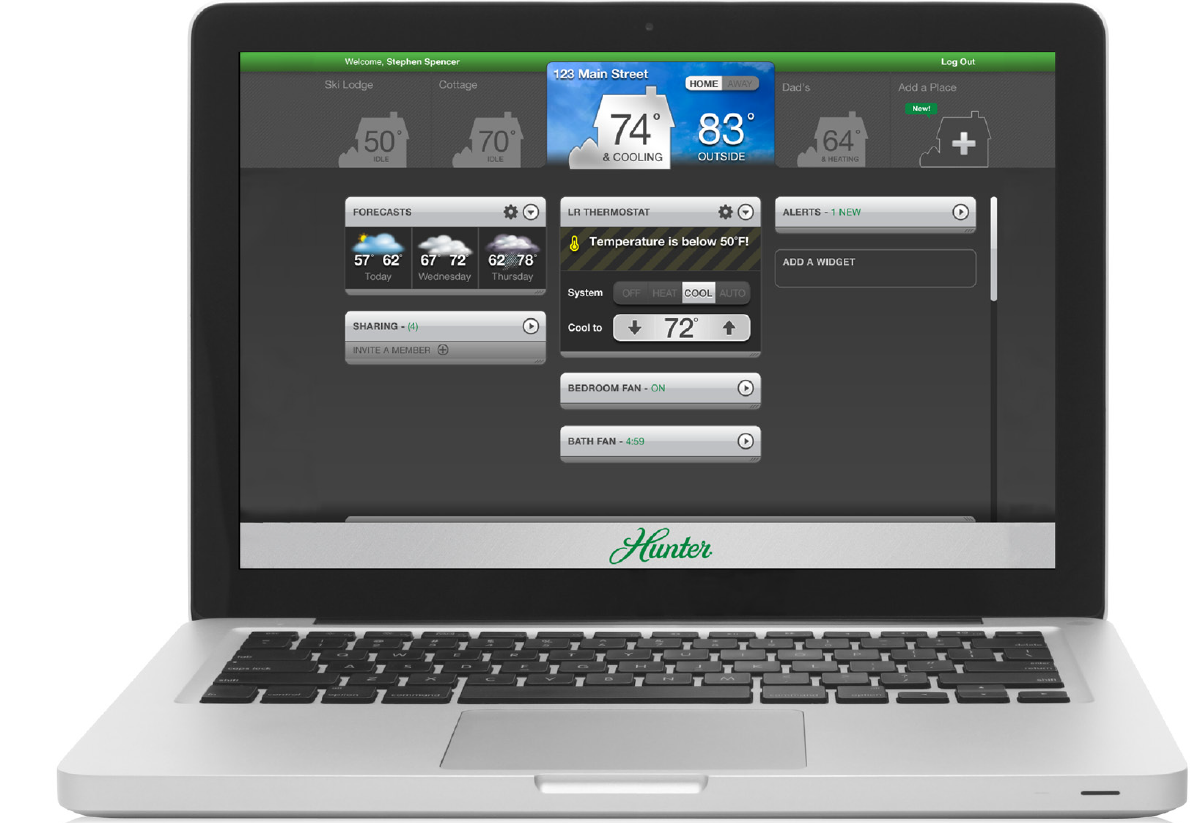

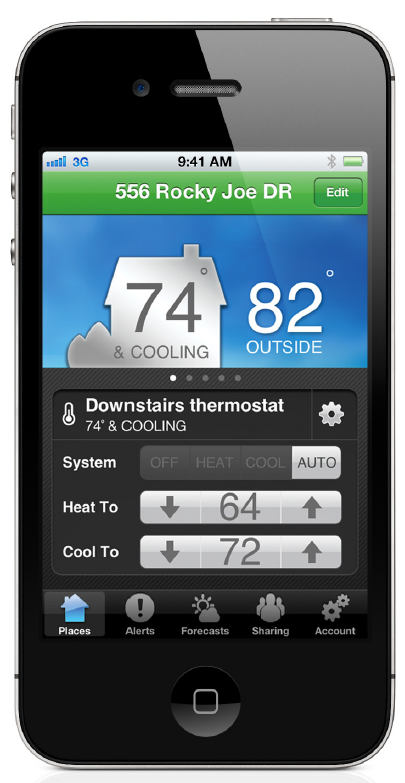

App Features

Control from any smartphone, tablet, laptop or desktop computer.
Signing up is quick, easy, and secure.

• Change temperature settings and so much MORE!
• Manage one or more thermostats in one or multiple locations.
• Create unlimited schedules.
• Share control with family & friends.
• Check weather forecasts.
• Set up email notifications for filter changes, low battery, and temperature conditions.

Learn more at: HunterFan.com

5-Year Limited Warranty

For assistance with installation and setup, please call our Technical Support at USA: 1-888-830-1326
Canada: 1-866-268-1936
*This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

*This device complies with RSS-GEN IC: Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

*Any alteration of this product, either intentional or unintentional, not expressly approved by the manufacturer could result in operation failure of the device, inability to gain assistance from our technical team, or the manufacturer refusing warranty support.
*This Class B digital apparatus complies with Canadian ICES-003.

Form# 44120-01
20120814
©2012 Hunter Fan Co.
