Huanrui HY08-1 Floor Heating Thermostat User Manual

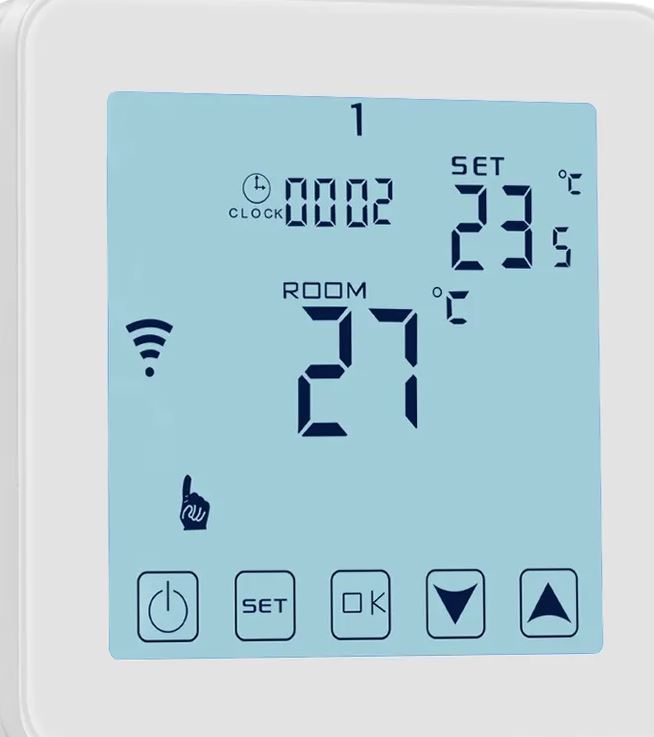

Huanrui HY08-1 Floor Heating Thermostat

Specifications

• Power consumption: 2W
• Setting range: 5-90 degree
• Power Supply: 110-120V/220-230V
• Ambient temperature: -5~50 degrees
• Housing protection: IP20
• Limitation differential: 5~60℃ adjustable factory setting 35℃
• Voltage: 90-240V
• Brand: Huanrui

Introduction

The HY08-1 Floor Heating Thermostat is a state-of-the-art device designed to provide precise temperature control and energy efficiency for floor heating systems. With its advanced features and user-friendly interface, this thermostat offers a convenient and comfortable heating experience for residential and commercial spaces. The HY08-1 thermostat boasts a sleek and modern design, complementing any interior decor. It’s compact size and intuitive controls make it easy to operate and install in various settings. Whether you have electric or hydronic floor heating systems, the HY08-1 thermostat is designed to meet your specific needs.

One of the standout features of the HY08-1 thermostat is its precise temperature control. Equipped with advanced sensors and intelligent algorithms, it accurately measures the floor temperature and adjusts the heating output accordingly. This ensures optimal comfort while minimizing energy consumption, leading to cost savings and environmental sustainability. The thermostat offers versatile programming options, allowing you to customize heating schedules based on your preferences and daily routines. You can set different temperature levels for various time periods, ensuring that your floors are warm and cozy when needed and saving energy during periods of low activity.

The HY08-1 thermostat supports both manual and programmable modes, giving you flexibility in controlling your floor heating system. With the manual mode, you have direct control over the temperature settings, while the programmable mode allows you to automate the heating schedule according to your desired comfort levels.

What’s In the Box?

1. HY08-1 Thermostat
2. Backplate/Mounting Bracket
3. Mounting Screws and Anchors
4. Floor Sensor Probe
5. User Manual

Underfloor Heating Cable

In-concrete heating cables from 3.6mm to 5.8mm for bathrooms and small rooms.

Underfloor Heating Mat

Underfloor heating mat, 150w or 200w per sqm.

Thermostat

Manual, programmable, wifi, and touchscreen thermostats.

How To Install?

Installing the HY08-1 Floor Heating Thermostat involves several steps. Here is a general guide to help you with the installation process:

1. Turn off the power: Before starting the installation, turn off the power to your floor heating system at the circuit breaker. This step ensures safety during the installation process.
2. Choose the installation location: Select a suitable location on the wall where you want to mount the thermostat. It should be easily accessible and provide a representative measurement of the room temperature.
3. Mount the backplate/bracket: Attach the included backplate or mounting bracket to the wall using the provided screws. Make sure it is level and securely fastened.
4. Connect the wiring: Follow the wiring diagram provided in the thermostat’s instruction manual to connect the wires. Typically, you will connect the floor heating system wires to the corresponding terminals on the thermostat. Ensure the connections are secure.
5. Install the floor sensor: If your thermostat includes a floor sensor, position it beneath the floor surface according to the manufacturer’s instructions. Ensure the sensor is placed correctly and securely attached.
6. Attach the thermostat to the backplate: Align the thermostat with the mounting bracket/backplate and gently push it into place. It should fit snugly onto the bracket.
7. Restore power: After completing the installation, turn on the power to your floor heating system by flipping the circuit breaker back on.
8. Configure the thermostat: Follow the instructions in the user manual to configure the thermostat settings. This may include setting the date, time, temperature units, and other personalized preferences.
9. Test the system: Once the thermostat is installed and configured, test the system by setting the desired temperature and ensuring that the floor heating system responds accordingly.

How To Mount?

To mount the HY08-1 Floor Heating Thermostat, please follow these general steps:

1. Choose the mounting location: Select a suitable location on the wall where you want to install the thermostat. It should be easily accessible and provide an accurate representation of the room temperature.
2. Prepare the wall: Ensure the wall surface is clean and free of any debris or obstructions. Use a level to ensure that the mounting surface is straight and aligned.
3. Mark the mounting holes: Place the mounting bracket or backplate against the wall in the desired location. Use a pencil or a marker to mark the positions of the mounting holes on the wall.
4. Drill pilot holes: Using an appropriate drill bit, drill pilot holes into the marked positions on the wall. The size of the drill bit should match the size of the mounting screws provided with the thermostat.
5. Mount the bracket/backplate: Align the mounting bracket or backplate with the pilot holes and attach it to the wall using the provided screws. Ensure that the bracket is securely fastened to the wall.
6. Connect the wiring: Follow the wiring diagram provided in the thermostat’s instruction manual to connect the wires. Typically, you will connect the floor heating system wires to the corresponding terminals on the thermostat. Ensure the connections are secure.
7. Attach the thermostat to the bracket: Align the thermostat with the mounting bracket/backplate and gently push it into place. It should fit snugly onto the bracket and securely attach.
8. Test the installation: After mounting the thermostat, test its stability and ensure it is securely mounted to the wall. Gently wiggle or push the thermostat to verify that it is firmly attached.

Frequently Asked Questions

Q: Is the HY08-1 thermostat compatible with my floor heating system?
A: The HY08-1 thermostat is typically compatible with various types of floor heating systems, including electric and hydronic systems. However, it’s important to check the specifications and compatibility information provided by the manufacturer or consult their customer support to ensure compatibility with your specific system.

Q: Can I control the HY08-1 thermostat remotely?
A: The HY08-1 thermostat does not typically offer remote control functionality. It is designed for manual control and adjustments directly on the thermostat unit.

Q: Can I program heating schedules with the HY08-1 thermostat?
A: The HY08-1 thermostat usually does not support programmable scheduling. It is primarily designed for manual control and adjustment of the temperature settings.

Q: How accurate is the temperature control of the HY08-1 thermostat?
A: The HY08-1 thermostat is designed to provide accurate temperature control for your floor heating system. It typically includes advanced sensors and algorithms to maintain precise and stable temperature readings, ensuring optimal comfort.

Q: Does the HY08-1 thermostat have a backlight for the display?
A: The presence of a backlight depends on the specific model or version of the HY08-1 thermostat. Some versions may include a backlight feature, while others may not. Please refer to the product specifications or the user manual for information regarding backlight functionality.

Q: Does the HY08-1 thermostat require batteries?
A: The HY08-1 thermostat usually requires a power supply connection rather than batteries. It draws power from the electrical connection to your floor heating system. Please refer to the user manual or product specifications for specific power requirements.

Q: Can the HY08-1 thermostat be used with multiple heating zones?
A: The HY08-1 thermostat is typically designed for single-zone heating control. If you have multiple heating zones, you may need additional thermostats for each zone or consider a different thermostat model specifically designed for multi-zone control.

Q: How do I calibrate the temperature readings of the HY08-1 thermostat?
A: The calibration process may vary depending on the manufacturer or model of the HY08-1 thermostat. Please refer to the user manual or contact the manufacturer’s customer support for specific instructions on calibrating the temperature readings.

Q: Is professional installation required for the HY08-1 thermostat?
A: The installation of the HY08-1 thermostat can often be done as a DIY project. However, if you are unfamiliar with electrical wiring or unsure about the installation process, it’s recommended to seek professional assistance from a qualified technician or electrician to ensure a proper and safe installation.

Huanrui HY08-1 Floor Heating Thermostat User Manual
