Huanrui E31 Wifi Floor Heating Thermostat User Manual

Huanrui-LOGO

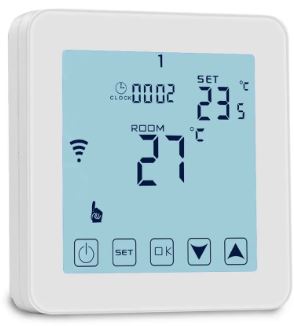

Huanrui E31 Wifi Floor Heating Thermostat

Huanrui-E31-Wifi-Floor-Heating-Thermostat-PRODUCT

SPECIFICATION

  • Warranty: 1 year
  • Setting range: 5-35℃(can be adjusted to 5-90℃)
  • Sensor: NTC internal /external sensor
  • Ambient temperature: -5–50℃
  • Power consumption: 2W
  • External limitation: 5-60℃(Factory setting:35℃)
  • Switch differential: 0.5-10℃ adjustable (Factory setting:-1—1℃)
  • Housing protection: IP20
  • Housing material: anti-flammable PC
  • Brand: HuanRui

INTRODUCTION

wireless thermostat
WiFi-enabled heating thermostat with manual and energy-saving settings. For the control of an electric heating device or an on/off valve actuator in hydronic underfloor heating, the thermostat is advised. The Huanrui E31 Wifi Floor Heating Thermostat is a smart thermostat designed for controlling electric floor heating systems. It allows you to easily control your floor heating system via a mobile app or voice control. With its built-in WiFi connectivity, the E31 thermostat enables remote control of your heating system from anywhere in the world.

The thermostat has a sleek and modern design with a large LCD screen that displays the current temperature, set temperature, and time. It also has a touch interface for easy and intuitive operation. The Huanrui E31 thermostat features various modes, including a schedule mode that allows you to set different temperature settings for different times of the day. The thermostat also has an adaptive learning feature that learns your preferred temperature settings and adjusts them accordingly. Additionally, the thermostat has an open-window detection feature that automatically turns off the heating system when a window is open, saving energy and reducing heating costs. The Huanrui E31 Wifi Floor Heating Thermostat is easy to install and compatible with most electric floor heating systems. It is a reliable and energy-efficient solution for controlling your home’s heating system.

WHAT IS IN THE BOX

  • Thermostat
  • Screws
  • User Manual
  • External Sensor

Selection Table

MODEL
CURRENT
APPLICATION
wifi thermostat
16A
Built-in & floor sensor, floor limit sensor

Huanrui-E31-Wifi-Floor-Heating-Thermostat-FIG-1

Technical data

Huanrui-E31-Wifi-Floor-Heating-Thermostat-FIG-2

FEATURES

The Huanrui E31 Wifi Floor Heating Thermostat is a smart thermostat that is designed to control the temperature of your electric floor heating system. Some of its main features include:

WiFi Connectivity:
The E31 thermostat is WiFi-enabled, which allows you to control the temperature of your floor heating system remotely using the Huanrui app.

Smart Programming:
The thermostat can be programmed to automatically adjust the temperature according to your preferred schedule, ensuring that your home is always at the desired temperature.

Touchscreen Display:
The E31 features a large, easy-to-read touchscreen display that shows the current temperature, as well as the programmed schedule and other settings.

Compatibility:
The E31 is compatible with most electric floor heating systems, including those with both 120V and 240V circuits.

Energy-Saving Features:
The thermostat includes several energy-saving features, including a “vacation mode” that reduces energy consumption when you are away from home.

Child Lock:
The E31 comes equipped with a child lock feature that prevents accidental or unauthorized changes to the thermostat settings.

Temperature Calibration:
The thermostat can be calibrated to ensure that the temperature readings are accurate.

HOW TO USE

The Huanrui E31 Wifi Floor Heating Thermostat is a programmable thermostat designed to control electric underfloor heating systems. Here are the steps to use the thermostat:

  1. Installation: Before you start using the thermostat, you need to install it properly. Follow the manufacturer’s instructions for installation, wiring, and setup. It is recommended that you hire a qualified electrician for installation.
  2. Wi-Fi Connection: Connect the thermostat to your Wi-Fi network. The thermostat comes with a user manual that will guide you through the process.
  3. Programming: Once the thermostat is installed and connected to the Wi-Fi network, you can program it according to your schedule. The thermostat has a touchscreen interface that allows you to set the temperature, time, and other settings. You can also program the thermostat using the Huanrui app, which can be downloaded from the App Store or Google Play Store.
  4. Smart Features: The Huanrui E31 Wifi Floor Heating Thermostat has smart features that allow you to control the temperature of your home remotely. You can use the app to adjust the temperature, set schedules, and receive notifications about your home’s temperature.
  5. Troubleshooting: If you experience any issues with the thermostat, refer to the user manual for troubleshooting tips. You can also contact Huanrui customer support for assistance.

HOW TO INSTALL

Installing the Huanrui E31 Wifi Floor Heating Thermostat involves several steps:

  1. Turn off the power: Before starting the installation process, ensure that the power supply is turned off.
  2. Remove the old thermostat: If you have an existing thermostat, remove it by disconnecting the wires and removing the mounting plate.
  3. Mount the backplate: Take the backplate of the new thermostat and mount it on the wall using the screws provided. Make sure it is level and securely attached.
  4. Connect the wires: Connect the wires from your heating system to the thermostat following the wiring diagram provided in the user manual. Make sure the wires are securely connected and properly labeled.
  5. Install the thermostat: After the wires are connected, carefully snap the thermostat onto the backplate. Ensure that it is securely attached.
  6. Connect to WiFi: Follow the instructions in the user manual to connect the thermostat to your WiFi network.
  7. Set up the thermostat: Once the thermostat is connected to your WiFi network, use the user manual to set up your thermostat settings, including temperature preferences, schedules, and other settings.
  8. Test the thermostat: After installation is complete, turn the power back on and test the thermostat to ensure that it is functioning correctly.

FAQS

Q: What type of heating system is the Huanrui E31 thermostat compatible with?
The Huanrui E31 thermostat is designed specifically for use with electric underfloor heating systems.

Q:  Does the Huanrui E31 thermostat require a dedicated power supply?
Yes, the thermostat requires a dedicated power supply of 100-240VAC, 50/60Hz.

Q:  What is the temperature range that the Huanrui E31 thermostat can control?
The thermostat can control temperatures from 5°C to 35°C.

Q: Does the Huanrui E31 thermostat have a touchscreen display?
Yes, the thermostat has a large, easy-to-use touchscreen display that shows the current temperature, set temperature, and other information.

Q: Can the Huanrui E31 thermostat be controlled remotely?
Yes, the thermostat can be controlled remotely using the Huanrui mobile app, which is available for both iOS and Android devices.

Q: Can the Huanrui E31 thermostat be programmed to turn the heating on and off at specific times?
Yes, the thermostat has a programmable timer function that allows you to set up to six different temperature settings for each day of the week.

Q: Can the Huanrui E31 thermostat be used with multiple heating zones?
No, the thermostat is designed to control a single heating zone.

Q: Does the Huanrui E31 thermostat have a built-in sensor to detect the room temperature?
Yes, the thermostat has a built-in temperature sensor that accurately measures the room temperature.

Q: Can the Huanrui E31 thermostat be used with voice control devices like Amazon Alexa or Google Assistant?
Yes, the thermostat is compatible with Amazon Alexa and Google Assistant, allowing you to control the temperature using voice commands.

Q: Is it difficult to install the Huanrui E31 thermostat?
The thermostat can be installed by a professional electrician or HVAC technician. If you have experience with electrical wiring, you may be able to install the thermostat yourself. However, it is recommended that you consult the installation manual and follow all safety precautions.
