Hotwire HWSMWiFi Programmable THERMOSTAT INSTRUCTION MANUAL

Hotwire HWSMWiFi Programmable THERMOSTAT

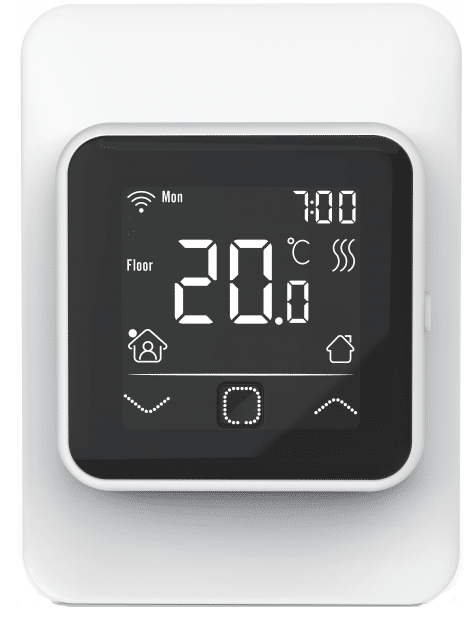

Hotwire-HWSMWiFi-Programmable-THERMOSTAT-PRO

CONGRATULATIONS on the purchase of your new WiFi Thermostat from HOTWIRE. The HWSMWiFi model is an intuitive unit that can even be connected to Google Home or Amazon Alexa.

Installation Instructions

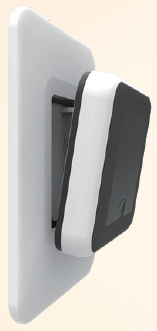

  1. Step 1:
    Put your fingers either side of the front panel and pull towards you.Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (1)
  2. Step 2:
    Connect the Thermostat according to the Wiring Instructions.Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (2)

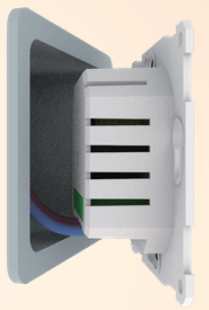

  3. Step 3:
    Mount and reassemble the Thermostat: Screw the thermostat to the fixing plate in the holes provided.Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (3)

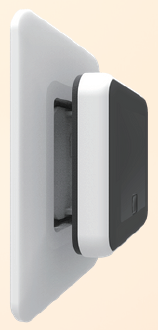

  4. Step 4:
    Return the face plate to its original position by pressing firmly.Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (4)

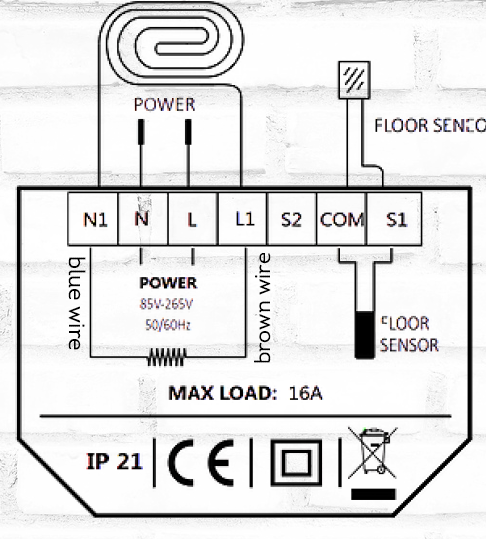

Wiring Instructions

Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (5)

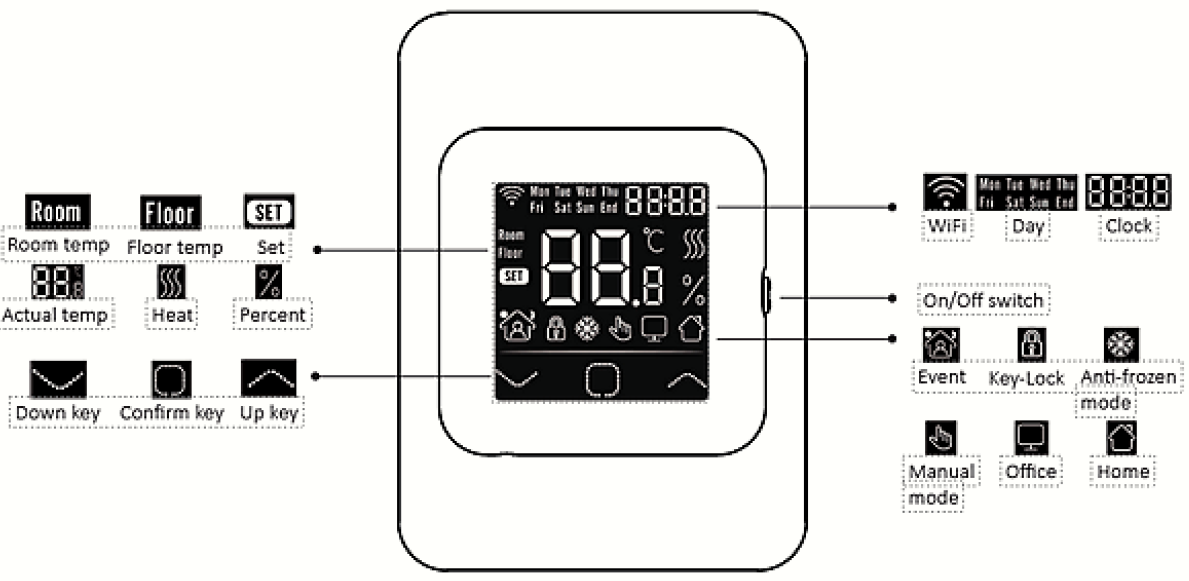

Thermostat Symbols

When the thermostat has been installed and connected scroll down on the On/Off switch to turn on the thermostat and scroll up to turn Off the thermostat.Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (6)

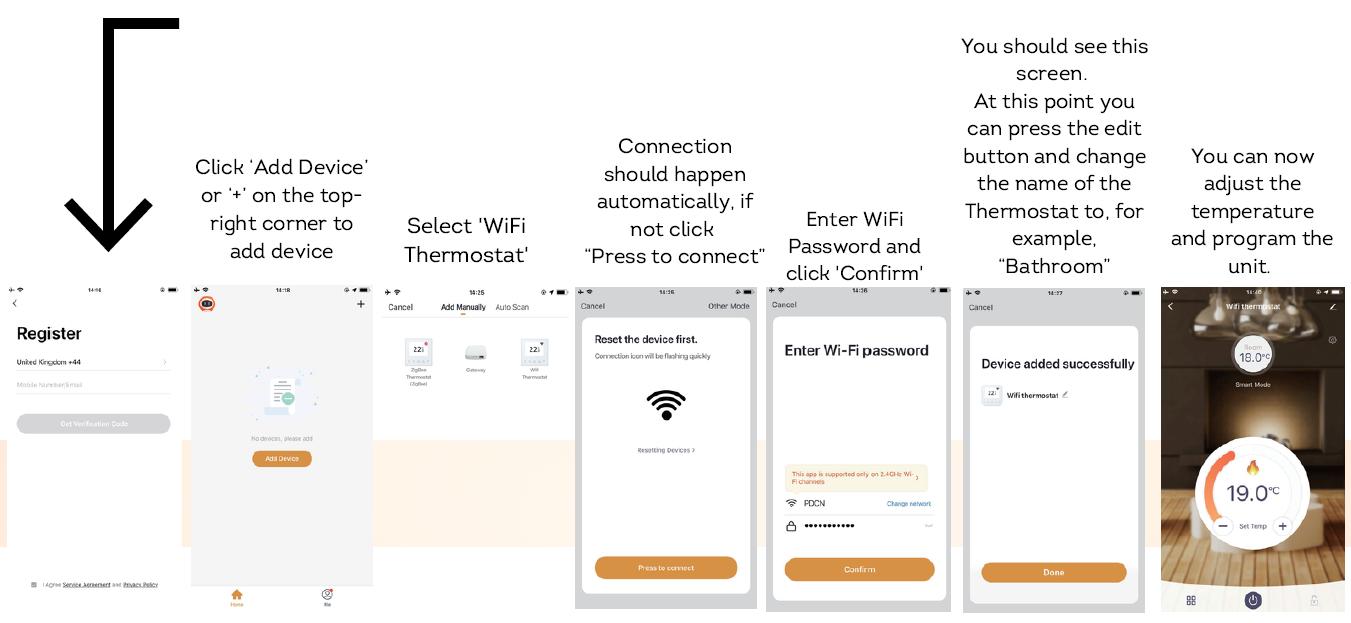

WIFI CONNECTION

Download the “Warmme App” and register and login as prompted.Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (7)Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (8)

Function and Operation Settings

Mode
Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (9)

  • To select the mode press
    There are 3 modes you can select from.
  • Auto Mode (house icon):
    The system will run according to your preset settings.
  • Manual Mode (hand icon):
    You can simply turn the system on or off.
  • Anti Freeze (snowflake icon):
    This is not used often in Australia but you are able to simply ensure the floor never gets below a certain temperature. It is useful if you are in the Snow Fields. The maximum temperature for this is 15C

Temporary override Temperature
Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (10)
To override the current settings and turn the unit on Manually simply increase or decrease the Temperature by pressing the up or down arrows. This temperature is a ‘once off’ event will not be saved.

Lock
To ‘lock’ the system and its current settings so that visitors or the small people in your life don’t change the settings simply press and holdHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) the and UP arrow at the same time and hold for 3 seconds. Repeat this process to Unlock

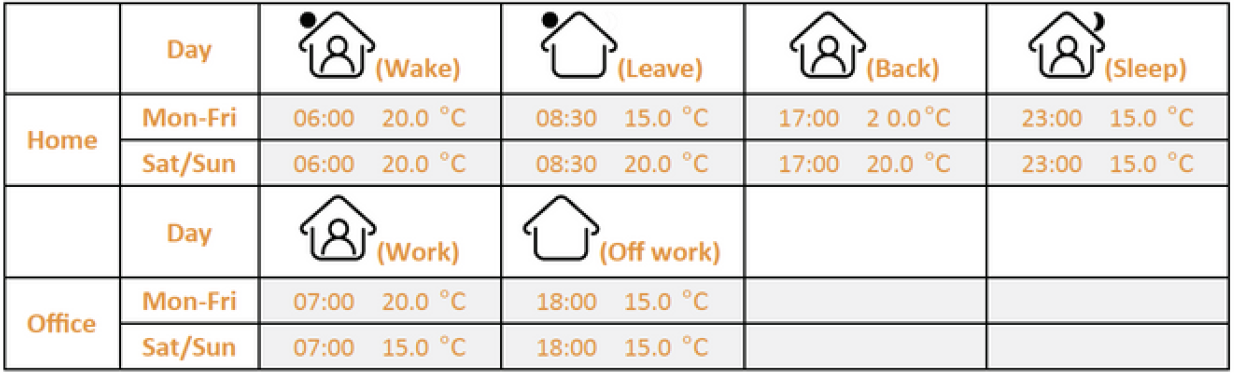

The default programming is as followsHotwire-HWSMWiFi-Programmable-THERMOSTAT- (11)

If you wish to change the default programming to suit your needs.

Programming the system

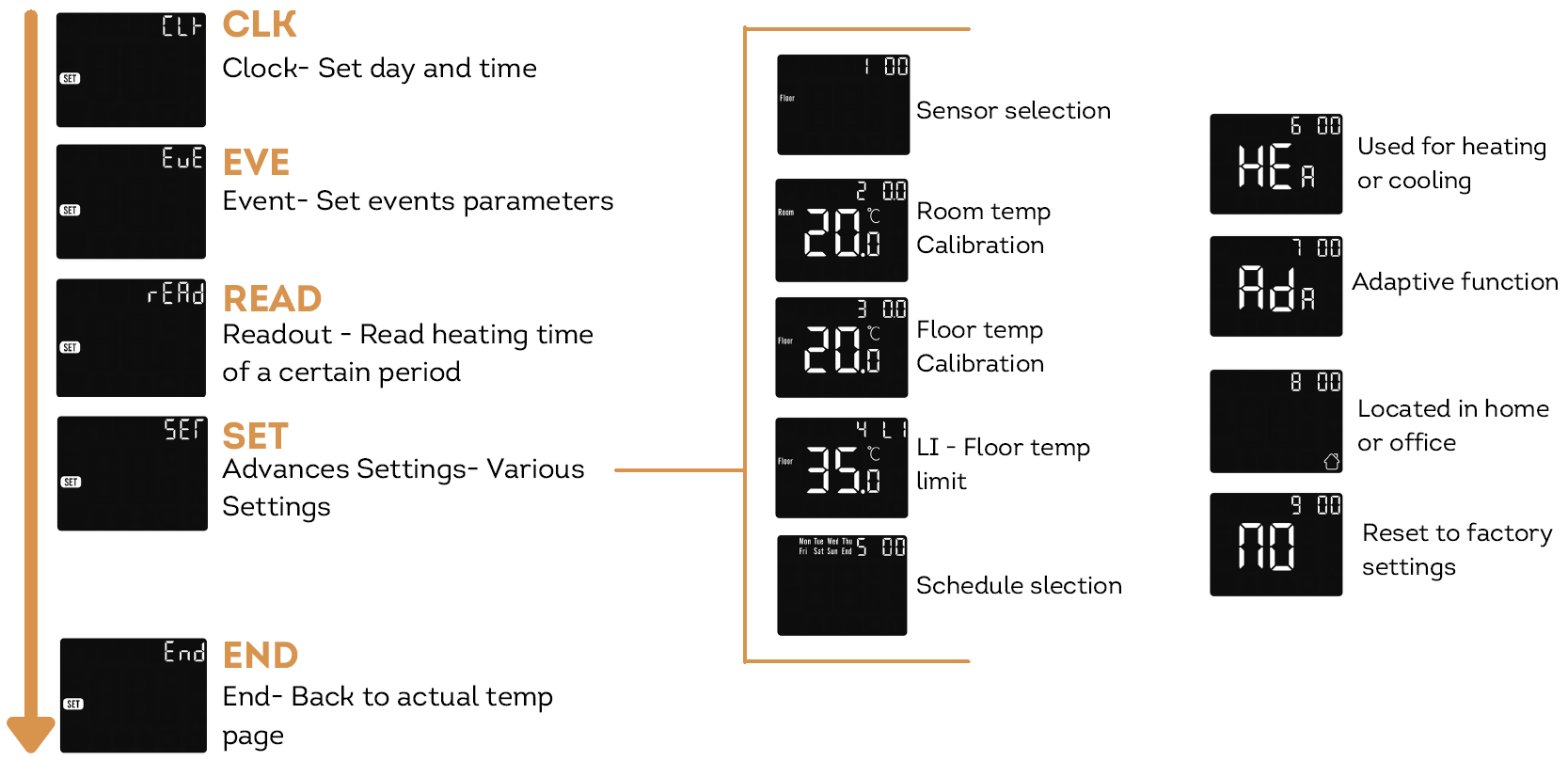

MENU KEY

  • Instructions to change and personalise the programming are.
  • We suggest programming via the app as it is much simpler.

Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (12)

CHANGE AND PERSONALISE THE PROGRAMMING

Press and holdHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) for 3 seconds to enter the menu.

CLOCK
Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (16)
The first screen shown is:

  1. Here you can set the day and clock.
  2. Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to enter the day setting.
  3. Press the Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (14)orHotwire-HWSMWiFi-Programmable-THERMOSTAT- (15) to set day.
  4. Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to enter the hour setting.
  5. Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (14) orHotwire-HWSMWiFi-Programmable-THERMOSTAT- (15) to set hour.
  6. Press the Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (13)to enter the minute setting.
  7. Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (14) orHotwire-HWSMWiFi-Programmable-THERMOSTAT- (15) to set minute.
  8. Press the Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (13)to go back to the main screen.

* If the thermostat is WiFi version, it will update time automatically after connecting to WiFi.

EVENT
Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (17)
The next screen shown is:

  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to enter event setting.
  • Press the Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (14)orHotwire-HWSMWiFi-Programmable-THERMOSTAT- (15) to select a day or end then clickHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13).
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (14) orHotwire-HWSMWiFi-Programmable-THERMOSTAT- (15) to select an event symbol. i.e Wake, Leave, Back.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to select events start time.
  • Press the Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (14)orHotwire-HWSMWiFi-Programmable-THERMOSTAT- (15) to set hour of starting time.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to enter the minute setting.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (14) orHotwire-HWSMWiFi-Programmable-THERMOSTAT- (15) to set the minute of starting time.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to enter the temp setting.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (14) orHotwire-HWSMWiFi-Programmable-THERMOSTAT- (15) to set the temp to the minimum of 5 degrees.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to back to the day selection, and repeat for each day.

If you want to back to the main screen, go back to the ‘day’ selection and select end.

Event settings can set and  change the programming. In Auto Mode, the thermostat runs according to the programming of the events. On the Clock interface, Press the up or down arrow to select EVE.

READOUT
Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (18)

  • READOUT counts the heating time (in percent) within a certain period.
  • On the Clock screen, press the up or down arrows to select read.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to enter the day setting.
  • Press the up or down arrows to select read.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to enter readout, the thermostat will show the heating time of the previous day.
  • Press the up or down arrows to select 1 day, 30days, 365 days, it will show the heating time within the certain period.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to go back to the main screen.

ADVANCED SETTINGS
Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (19)

  • The thermostat provides advanced settings to suit various special situations.
  • These are normally set by technicians during initial installation.
  • On the clock Screen, Press the up or down arrows to select SET.
  • Press theHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) to enter advanced settings.
  • Each setting can be accessed by pressingHotwire-HWSMWiFi-Programmable-THERMOSTAT- (13) and parameters adjusted by pressing the up or down arrows. More details on these settings are on the following page.

OPEN WINDOW DETECTION
This function only works when room sensor or both sensor is selected (refer to page 7). The thermostat with this function will shut off automatically for 15 min when the window opens, as it can detect that the room temp plummets.

ERRORS

  • E1: Room-in sensor error.
  • E2: Floor sensor error.
  • E4: Room-out sensor error

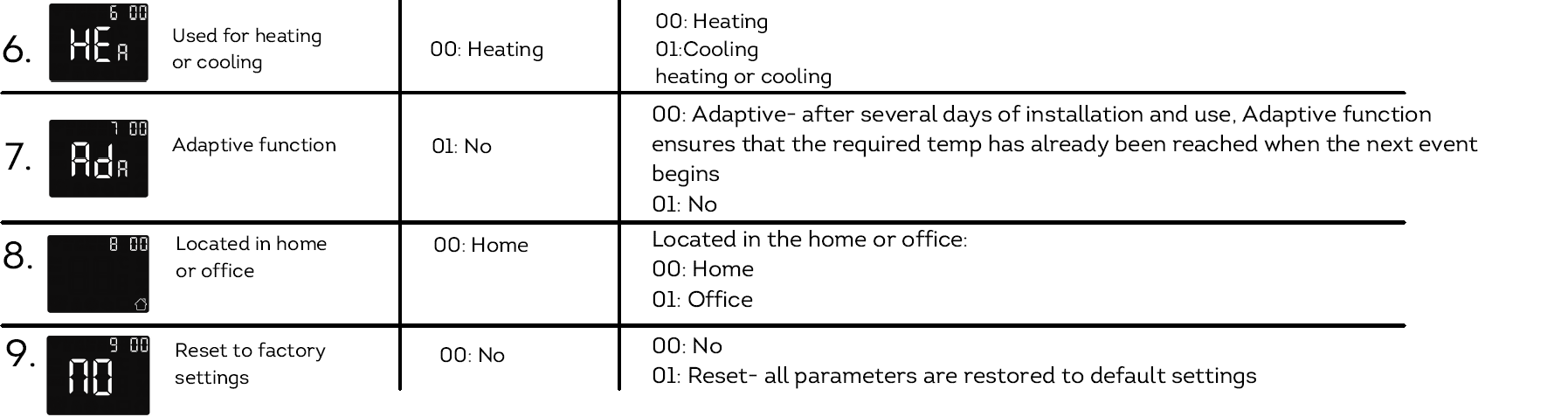

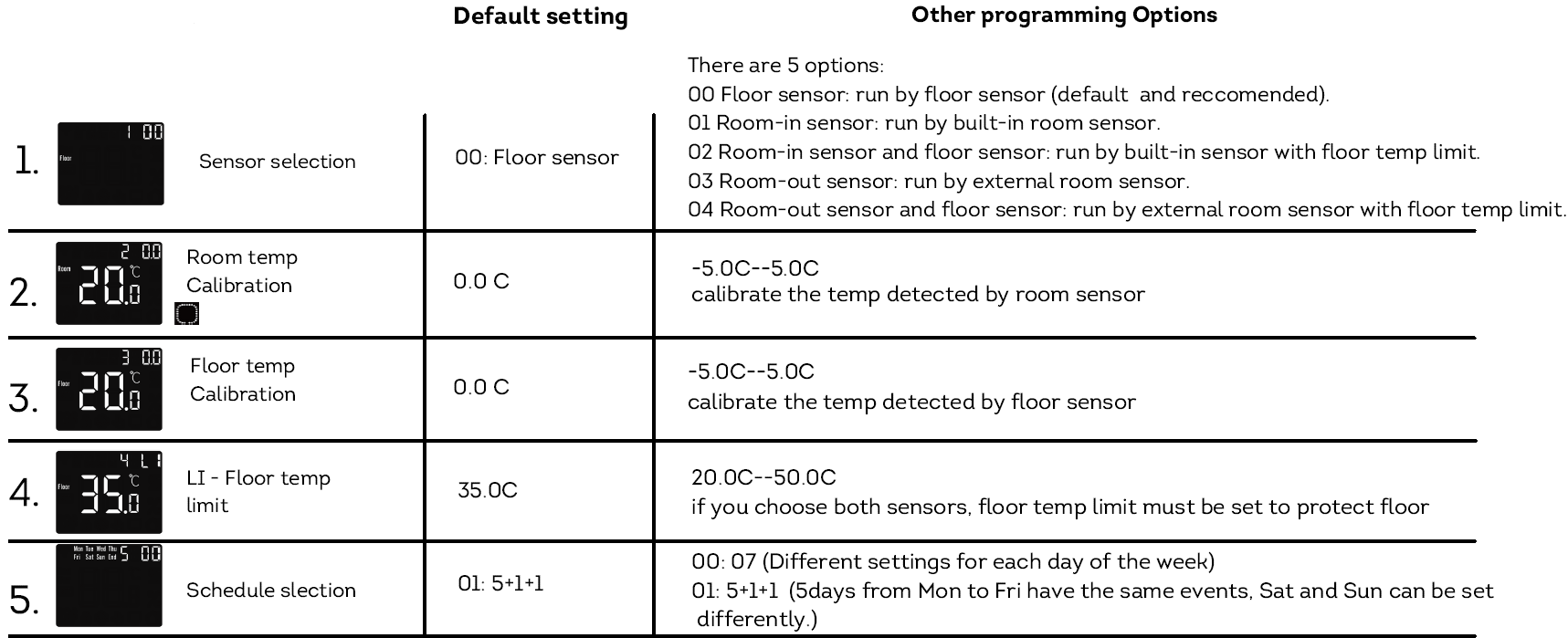

PROGRAMMING

Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (20) Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (21)

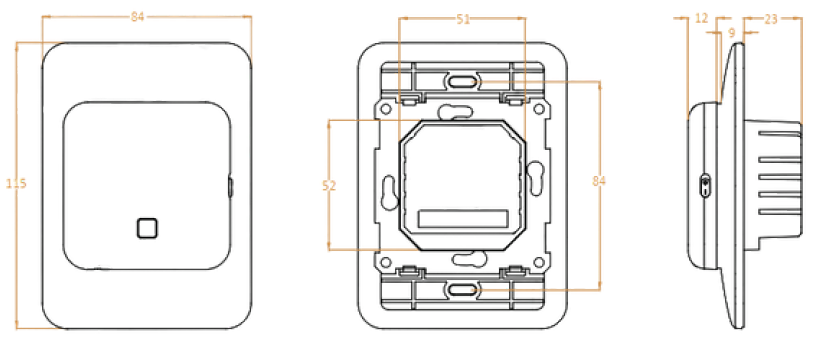

DIMENSIONS (MM)

Hotwire-HWSMWiFi-Programmable-THERMOSTAT- (22)
