Hotwire HWGL1 Programmable THERMOSTAT INSTRUCTION MANUAL

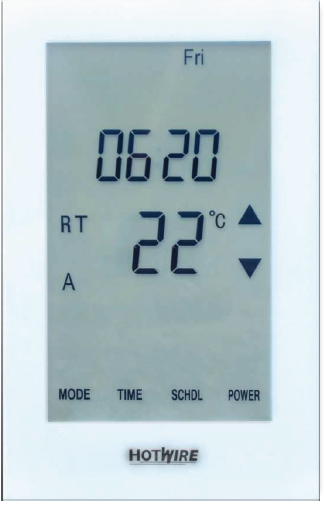

Hotwire HWGL1 Programmable THERMOSTAT

Hotwire-HWGL1-Programmable-THERMOSTAT-product

LCD symbols

LCD symbols
Icon Legend
Hotwire-HWGL1-Programmable-THERMOSTAT-fig-1  The buttons are locked
Hotwire-HWGL1-Programmable-THERMOSTAT-fig-2The heating is turned on
Hotwire-HWGL1-Programmable-THERMOSTAT-fig-3Frost protection activated
Hotwire-HWGL1-Programmable-THERMOSTAT-fig-4Program number
Hotwire-HWGL1-Programmable-THERMOSTAT-fig-5Manual mode
AUTO Automatic mode, executes the programmed schedules
Hotwire-HWGL1-Programmable-THERMOSTAT-fig-6 Temporary temperature override
Er The floor sensor is not being read by the thermostat

Programming

Setting the clock and day of the week
This thermostat is fitted with a real-time clock. It is essential that the clock time and day are set accurately if you require your programmed events to start on time. To set follow the steps below:
  1. Touch the “Time” button and the time will start flashing. Use the up and down arrows to set the time. By holding the arrow down the time will change faster.
  1. Press NEXT  to move to the Day setting and use the up and down arrows to get to the correct day.
  1. Press DONE to store and exit.

Setting the Programme Schedules

This thermostat has the ability to programme each individual day of the week separately, or programme 7 days of the week at once. You can also programme weekdays (5 days) to one schedule and then weekends (2 days) to a different schedule. See the Menu information for details on how to set this up.(refer to Menu 10) See page 4 of this manual.

Programming your Thermostat

This will help you programme your thermostat to come on and off automatically. If you want to simply turn it on and off when required skip this section.

  1. Press SCHDL and the day display will start flashing. Using the arrow to select the day you wish to programme. Then press Next. (If your thermostat is set to 5+2 day programmable mode, the programming will skip to step 3)
  2. To select every day to be the same simply press All.
  3. Press NEXT andHotwire-HWGL1-Programmable-THERMOSTAT-fig-4 is displayed. This is the first programme function of the day.
  4. The time is now flashing. Select the time you want the heating to come on in the morning. Then press next.
  5. The temperature is now flashing. Set the temperature that you want the floor to heat to. Then press next.
  6. The LCD screen will show programme 2( Hotwire-HWGL1-Programmable-THERMOSTAT-fig-7 ) and the time will be flashing. This is the time that the thermostat will switch off in the morning.
  7. Use Hotwire-HWGL1-Programmable-THERMOSTAT-fig-8to adjust the time you wish the heating to switch off in the morning on the selected day or days.
  8. Press NEXT and the temperature will start flashing. This can be used to maintain a minimum temperature. In most cases this is not required and the temperature should be set to 5.
  9. Press NEXT and theHotwire-HWGL1-Programmable-THERMOSTAT-fig-11 icon will display. The time is also flashing. Set the time at which you want the heating to come on in the afternoon or evening.
    • NOTE: If you do not wish the heating to come in the afternoon, simply set the “off” time for only a couple of minutes after the “on” time.
  10. Press NEXT and set the temperature required in the afternoon.
  11. Press NEXT and the LCD screen will show programmeHotwire-HWGL1-Programmable-THERMOSTAT-fig-12. This is the time that the thermostat will switch off in the afternoon / evening. Press NEXT and set the temperature. As per above we recommend 5. Then Press DONE.

(*). Hint: If you use the default programming of 5 week days plus 2 weekend days you will now need to repeat the above steps for the weekend.

Default Programming is as follows

Programme Start Time Setpoint Explanation


01

WAKE 07:00

22 °C

This is the time the heating will come on in the morning.


02



LEAVE 09:30



16 °C

This is the time the heating will switch off in the morning. It can also be used to set a minimum temperature for the day.


03

RETURN 16:30

22 °C

This is the time the heating will come on in the afternoon.




04





SLEEP 22:30





16 °C

This is the time the heating will switch off in the afternoon/evening. If you do not require the heating in the afternoon / evening, simply set this time to a couple of minutes after the “on” time.

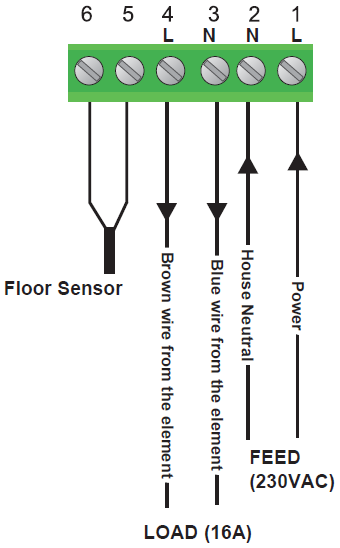

Installation and Wiring

Carefully separate the front half of the thermostat from the back plate by unscrewing the small screw at the bottom of the thermostat. Carefully unplug the ribbon connector which is plugged into the front half of the thermostat. Place the thermostat front half somewhere safe. Terminate the thermostat as shown in the diagrams below.

Screw the thermostat back plate onto the flush box

  • Re-connect the thermostat ribbon cable and clip the two halves together.

Hotwire-HWGL1-Programmable-THERMOSTAT-fig-9

  • Connect green wire from the element to the house earth.

Warning: This product should be installed by a qualified electrician.

Manual Mode
Press MODE to select Auto/Manual mode. In Manual mode(Hotwire-HWGL1-Programmable-THERMOSTAT-fig-5  ), the thermostat maintains a constant set temperature manually set by the user. Simply adjust the temperature using the arrows. In Auto mode, the thermostat executes the preprogrammed schedules.
Lock the Keypad
To lock the keypad, press and hold the power button for 5 seconds, you will see a lock symbolHotwire-HWGL1-Programmable-THERMOSTAT-fig-1. To unlock, repeat the steps above and the lock symbol will disappear.
Reset to Factory Setting
The conduct a master reset to factory settings, press the power button to turn the thermostat off. Press and hold Menu for 5 seconds. Move to menu 17 then hold the down button for 5 seconds.

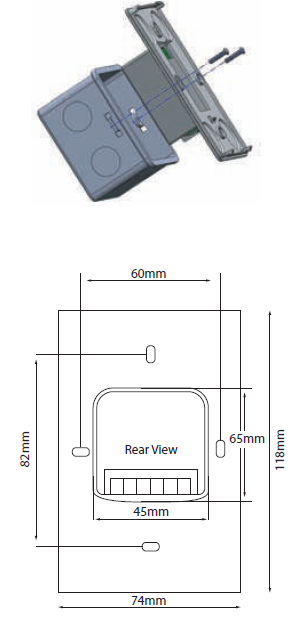

Dimension

Hotwire-HWGL1-Programmable-THERMOSTAT-fig-10

Technical Information

Configuration Menu

To enter into the setting menu please follow the steps below:

  • Step 1: Turn the thermostat off by pressing POWER
  • Step 2: Press MENU you will then see menu 01.
  • Step 3: Use the up and down arrows to adjust the sensor selection which is Menu 01(Air sensing; Air and Floor, or Floor only)
  • Step 4: Press NEXT to move to the next Menu and once you have all the menu options set,
  • Step 5: Press DONE to accept and store.
Menu #

Feature



Explanation

Adjustment

(Press up & down buttons to adjust)





01





Mode/Sensor Selection

This thermostat is a combination model which allows you to choose 3 different modes.

A mode = Air Sensing Only(Has built in sensor)

AF mode = Air & Floor sensing (Floor probe must be installed) F mode = Floor Sensing(Floor probe must be installed)





A / AF / F





02





Switching differential

The number of degrees difference before switching.

The default is 1°C which means the thermostat will switch the heating on 0.5°C below the set temperature and will turn it off 0.5°C above the set temperature.With a 2°C differential the heating will switch on 1°C below the set temperature and will switch off 1°C above the set temperature.





1 Deg C, 2 Deg C… 10 Deg C ( 1 Deg C by default)

03 Air Temp Calibration This is to recalibrate the air temp if required -1 Deg C = decrease 1 °C , 1 Deg C = increase 1 Deg C
04 Floor Temp Calibration This is to recalibrate the floor temperature if required -1 Deg C = decrease 1 °C , 1 Deg C = increase 1 Deg C


05



Temperature Readout (AF mode only)



This gives you the option to show the Air Temp, Floor Temp or to show both Air & Floor at intervals

A = Show Air Temperature F = Show Floor Temperature

A-F = Show Floor and Air Temperature in 5 sec intervals

06 Maximum Floor Temp ( AF Mode only) This is to protect the floor surface 20 Deg C – 40 Deg C (40 Deg C by default)
07 Temperature Format This allows the temperature to be set to show Deg Celsius or Deg Fahrenheit Deg C / Deg F
08 Clock Format You can select the clock to show in either 12 or 24 hour time 24 (default), 12- hour or 24-hour clock format
09 Frost Protection This is to avoid your room temp going below 5 DegC On = activated, Off = deactivated


10



5+2 / 7 Day mode

This allows you to programme either 5 days at once, then the 2 days of the weekend separately,

or a full 7 days at the same time or 7 days separately.

01 = 5 + 2 Day Programming

02 = 7 Day Programming

11 Auto/Manual mode selection This allows you to choose Auto / Manual mode 00 = Auto mode 01 = Manual mode
12 Software version This is for review only V1.0
13 Minimum temperature limit This gives you the option to change the minimum set temperature 5 °C~ 20 °C (5 °C by default)
14 Maximum temperature limit This gives you the option to change the maximum set temperature This gives you the option to change the maximum set temperature
15 Sensor type selection This allows you to match your thermostat to different sensor 10 = NTC10K(by default), 100= NTC100K,

3=NTC3K

16 Not at use Reserved for future use
17 Reset This allows you to reset your thermostat to factory default Press and hold down button until you see RES on screen
