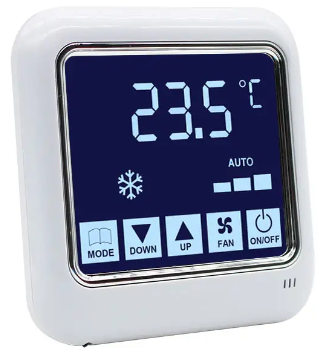

Hotowell HTW-61-D.A Digital Room Thermostat

Neutral HTW-61-D.A Digital room Thermostat pro -

Specification

  • Warranty: 1 Year
  • Project Solution Capability: total solution for projects
  • Place of Origin: China
  • Model Number: HTW-61-D.A
  • Display: Touch Screen Display
  • Installation: 60mm Standard Installation Hole Distance
  • After-sale Service: Online technical support
  • Application: Office Building
  • Design Style: Modern
  • Brand Name: HOTOWELL
  • Power Supply: 100~240Vac, 50/60Hz
  • Change Over: -HEAT/COOL
  • Configuration: 2 pipe / 4 pipe systems

Introduction

The HOTOWELL HTW-61-D.A Digital Room Thermostat is a device used for controlling the temperature in a room. It is a non-programmable thermostat that features a large, easy-to-read digital display and simple controls for adjusting the temperature. The thermostat is compatible with most heating and cooling systems, including gas, oil, and electric systems, as well as heat pumps and multi-stage systems. It is designed to work with 24V systems and is not compatible with high-voltage or millivolt systems. The HTW-61-D.A is a wired thermostat that is typically mounted on a wall, and it is powered by the heating or cooling system it controls. The thermostat is designed to provide accurate temperature control and reliable performance, making it a popular choice for residential and commercial applications.

  • Temperature range: The HTW-61-D.A has a temperature range of 5-35°C (41-95°F), which is adjustable using the control buttons on the thermostat.
  • Display: The thermostat features a large, easy-to-read digital display that shows the current temperature and other information, such as the mode of operation (heating or cooling), battery status, and error codes.
  • Power source: The thermostat is powered by the heating or cooling system it controls and does not require batteries.

What Is In The Box

  • Thermostat
  • User Manual
  • Screws
  • External Sensor

General INFORMATION

  • This line of thermostats is intended to control the temperature in rooms at hotels, workplaces, and residences with fan coil and water systems.
  • 3D1D has one load-specific digital ON/OFF valve output and three load-specific digital ON/OFF fan speed outputs.
  • 1A1D has a load digital ON/OFF valve output and a load analogue EC fan motor output.
  • 1A1A has 1 load analogue valve output and 1 load analogue EC fan motor output.
  • The gadget has a built-in temperature sensor on the front panel for measuring the room’s temperature, and it has a sophisticated control algorithm for regulating the speed of the fan coil and the position of the valve.
  • The gadget has a straightforward configuration menu that supports setting up to 28 parameters. As a result, the unit can be modified to meet the needs of each installation.

Installation

The installation process for the HOTOWELL HTW-61-D.A Digital room Thermostat will depend on the specific heating and cooling system it is being used with, but in general, it is a relatively simple process that can be completed in a few steps:

  • Turn off the power to your heating or cooling system before beginning the installation process.
  • Remove the existing thermostat from the wall and disconnect the wires from the back of the thermostat. Take note of the wires and where they were connected as this will be important for connecting the new thermostat.
  • Mount the base plate of the new thermostat to the wall using screws and anchors. Make sure it is level and securely fastened to the wall.
  • Connect the wires from the heating or cooling system to the terminals on the back of the thermostat. Refer to the wiring diagram in the installation manual to ensure the wires are connected correctly.
  • Attach the front cover of the thermostat to the base plate and snap it into place.
  • Turn the power back on to the heating or cooling system and test the thermostat to ensure it is functioning properly.
  • Follow the instructions in the user manual to set the desired temperature and adjust any other settings.

It is important to follow the manufacturer’s instructions and any local electrical codes when installing the HTW-61-D.A thermostat. If you are unsure about any aspect of the installation process, it is recommended to consult a licensed HVAC professional for assistance.

Features

  • 100-240Vac, 50/60HZ
  • Touchscreen Display *
  • Standard Installation Hole Distance of 60 mm
  • Switch from HEAT to COOL
  • Configurable for systems with 2 or 4 pipes
  • Temperature units that can be chosen (°C/°F)

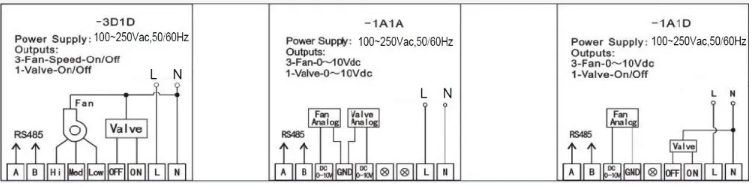

Wiring Diagram

Neutral HTW-61-D.A Digital room Thermostat 1

FAQS

Q: What is the HOTOWELL HTW-61-D.A Digital Room Thermostat?
A: The HOTOWELL HTW-61-D.A Digital Room Thermostat is a device used for controlling the temperature in a room.

Q: Is the HTW-61-D.A programmable thermostat?
A: No, the HTW-61-D.A is a non-programmable thermostat.

Q: What kind of display does the HTW-61-D?A have?
A: The thermostat features a large, easy-to-read digital display.

Q: How is the HTW-61-D?A powered?
A: The thermostat is powered by the heating or cooling system it controls.

Q: What heating and cooling systems is the HTW-61-D?A compatible with?
The thermostat is compatible with most heating and cooling systems, including gas, oil, and electric systems, as well as heat pumps and multi-stage systems.

Q: Is the HTW-61-D.A compatible with high-voltage or millivolt systems?
A: No, the HTW-61-D.A is designed to work with 24V systems and is not compatible with high-voltage or millivolt systems.

Q: How is the HTW-61-D.A mounted?
A:  The thermostat is typically mounted on a wall.

Q: What controls does the HTW-61-D.A have?
A: The thermostat has simple controls for adjusting the temperature.

Q: What is the purpose of the HTW-61-D.A?
A: The thermostat is designed to provide accurate temperature control and reliable performance.

Q: Is the HTW-61-D.A suitable for residential or commercial applications?
The thermostat is suitable for both residential and commercial applications.

Q: Is the HTW-61-D.A wired or wireless?
A: The HTW-61-D.A is a wired thermostat.

Q: Does the HTW-61-D.A have any advanced features like remote control or voice control?
A: No, the HTW-61-D.A is a basic thermostat without advanced features like remote control or voice control.

Q: Can the HTW-61-D.A be used with a multi-zone heating and cooling system?
A: Yes, the HTW-61-D.A is compatible with multi-zone systems.

Q: Is the HTW-61-D.A easy to install?
A: The installation difficulty of the HTW-61-D.A will depend on the specific heating and cooling system it is being used with, but in general, it is a relatively simple installation process.

Q: Does the HTW-61-D.A come with a warranty?
A: Yes, the thermostat comes with a limited warranty. The specific warranty terms may vary depending on the manufacturer and seller.
