Introduction

This room thermostat is used in heating-only or cooling-only systems to maintain selected room temperature. The controller acquires the room temperature with its integrated sensor and maintains the set point by delivering control commands.

Functions

  • The large displays can be clearly read with the background lighting.
  • Four buttons make it easy to use.
  • MAN Mode and PRG. Mode
  • 4 periods of each day programmable(5+1+1)
  • The display shows the set temperature as well as the measured temperature, time.
  • Temperature display in degrees Celsius

Technical Data

  • Thermostat operating voltage: 2 x AAA, alkaline batteries.
  • Backup storage: EEPROM
  • Maximum voltage / (ohmic) load: 230 VAC/8A.
  • Switching options: 5+1+1
  • Temperature settings: 5°C ~ 30°C, 0.5°C increments.
  • Accuracy: +/- 0.5°C
  • Thermostat dimensions: Surface mounted, 135mm x 87.5 mm x 23.2mm.
  • Color: White
  • IP protection rating: 30.

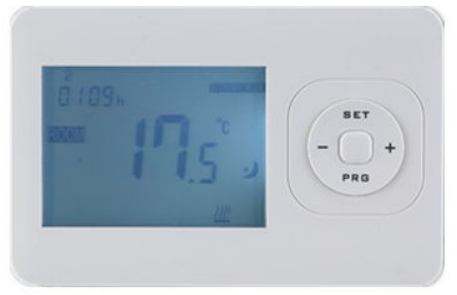

Display & Buttons

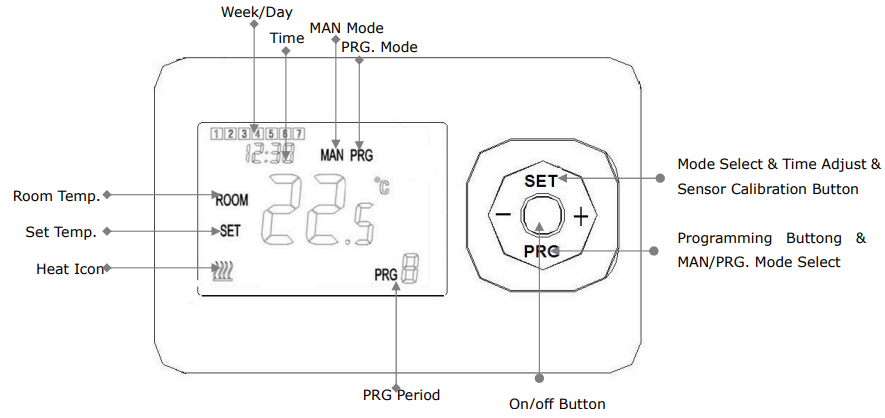

Hotowell- HTW-31-KT13 Room- Temperature- Controllers -Thermostat-fig (1)Hotowell- HTW-31-KT13 Room- Temperature- Controllers -Thermostat-fig (4)

PRG. Schedule Setting

  • Long press the PRG button to enter the PRG setting. The weekday is fixed from Monday to Sunday(1~7), and each day has 4 periods(1~4). Each press of the PRG button can into the next item setting.
  • The time and temperature of each period I can be set in the following steps.
  • Press PRG and hold for 3 seconds, the time display flash, and change the value of the + and – buttons. (each press is 15mins)
  • Press the PRG button, the temperature display flash, and change the temperature with the + and – buttons.
  • Press the PRG button to the next period.
  • The other period settings follow the same way.

Example

Monday to Friday Saturday Sunday
Period 1 2 3 4 1 2 3 4 1 2 3 4
Time 6:30 8:00 18:00 22:30 8:00 10:00 18:00 23:00 9:00 12:00 19:00 0:00
Temp. 21°C 18°C 21°C 16°C 21°C 21°C 21°C 16°C 23°C 21°C 16°C 21°C

Clock Adjustment

  • Press and hold the SET button for around 3 seconds. The minute’s display (top left in the display) flashes.
  • Change this value using the + and – buttons.
  • Press the SET button. The hour display (top left in the display) flashes.
  • Change this value using the + and – buttons.
  • Press the SET button. The day display (top left in the display) will flash as a number.
  • Change this value using the + and – buttons. Use 1 for Monday, 2 for Tuesday, 3 for Wednesday, 4 for
  • Thursday, 5 for Friday, 6 for Saturday and 7 for Sunday

Temp. Calibration
Turn the thermostat off, and long-press the SET button to enter Sensor calibration. Range: -8°C~+8°C

Wiring Diagram

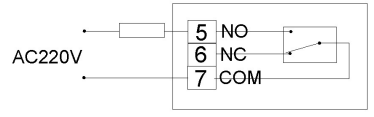

Hotowell- HTW-31-KT13 Room- Temperature- Controllers -Thermostat-fig (2)

Mounting

Transmitter

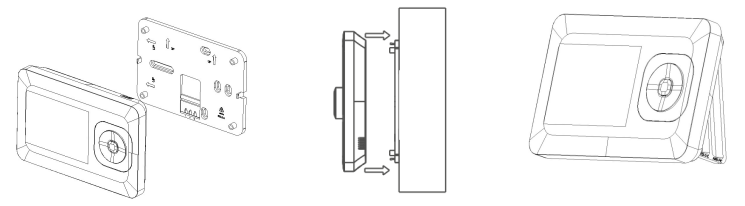

Hotowell- HTW-31-KT13 Room- Temperature- Controllers -Thermostat-fig (3)

Mount on the wall: Separate the face plate and base plate, and mount the base plate on the wall with provided screws. After done, hung the face plate on base plate

Put on a desk: install the foot directly.

Dimensions

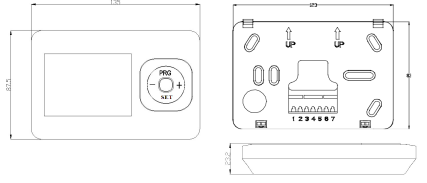

Hotowell- HTW-31-KT13 Room- Temperature- Controllers -Thermostat-fig (4)
