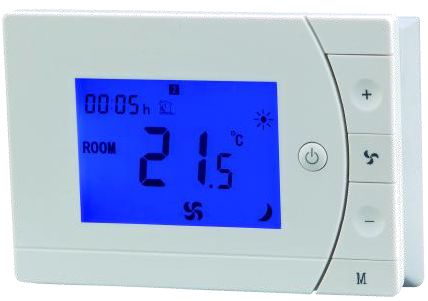

Hotowell HTW-31-F13-4KN Programmable Room Thermostat
Features
- Adjustable heating/cooling/ Heat & cool mode control
- Adjustable manual 3-speed and automatic fan speed control
- Surface-mounting
- 4-pipes & 2-pipes( optional)
- 7 days programmable ( optional)
- Rs-485, Modbus( optional)
- Keycard(optional)
Technical Data
| Power Supply – 230V, 24V 50/60Hz | Backlight – Blue |
| Power Consumption – 1.5A | Sensor – NTC 10K, 3950ohms at 25℃ |
| Set Point Range – 10~30℃ | Accuracy – + 1℃ (step control by +0.5℃) |
| Ambient – 0~50℃ | Protection Class – IP30 |
| Relative Humidity – 85% | Housing – ABS to UL94-5 fire retardant plastic |
7 days programming & week day
setting
Programmable setting
Long press “ M” button for 5 seconds to enter 5+1+1 programmable mode, press “+” and “-“ to set the on/off time of thermostat. After finish the time setting, press M button again to set the desire temp. Each press of M button will go into next mode setting.
| 1st Time Zone | 2nd Time Zone | |||||
| Turn on | Turn Off | Temp. Setting | Turn on | Turn Off | Temp. Setting | |
|
Icons |
 |
 |
NONE |
 |
 |
NONE |
|
12345(Mon.~Fri.) |
8:30 |
12:00 |
20 |
14:00 |
18:00 |
20 |
| 6(Sat.) | 9:00 | 12:00 | 20 | 15:00 | 18:00 | 20 |
| 7(Sun.) | 9:00 | 12:00 | 20 | 15:00 | 18:00 | 20 |
Parameters setting
| Menu | Description |
| 01 | Temp. Offset -8 ℃ ~8℃ |
| 02 | Key Card 10 ℃ ~50℃ |
| 03 | Heat, Cool, Heat/Cool Heat, Cool or Dual |
| 04 | Set Point High Limit 10 ℃ ~30℃ |
| 05 | Set Point Low Limit 10 ℃ ~30℃ |
| 06 | Clock Setting Mins-Hour-Weekday |
Under power off , to access MENU mode, press M and + buttons simultaneously for 10 seconds until the MENU appears showing 01 which is menu 1 and each press of the M button will go to the next MENU.

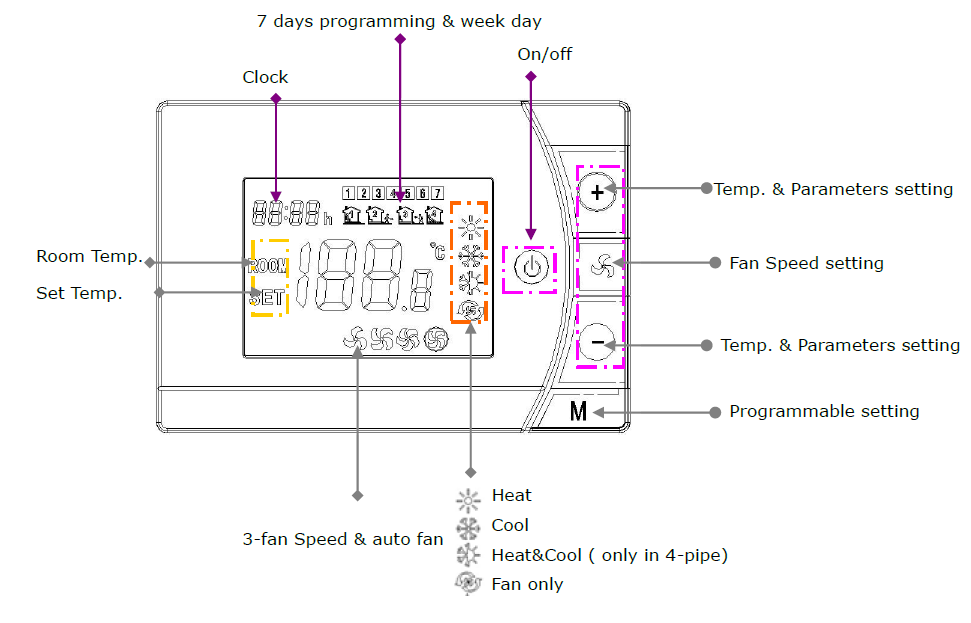

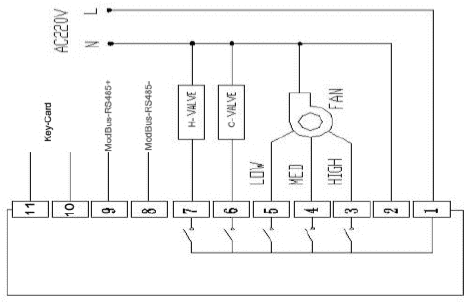

WIRING DIAGRAM
WARNING: Disconnect power before making electrical connection.

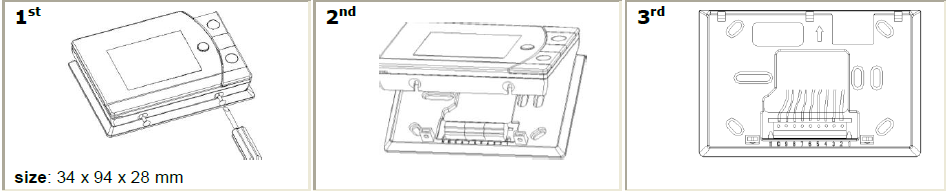

Installation
REFERENCE:
DOWNLOAD MANUALS:
Hotowell HTW-31-F13-4KN Programmable Room Thermostat Product Specification Guide
Hotowell HTW-31-F13-4KN Programmable Room Thermostat Product Specification Guide
