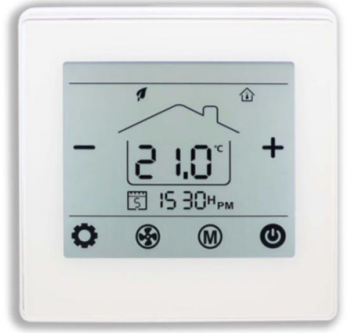

hotowell HTW-31-F10B NT Digital Thermostat

hotowell HTW-31-F10B NT Digital Thermostat  pro

General

This HTW-31-F10BNT digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment

Technical Data

Power Supply – 230V 50/60Hz Backlight White
Power Consumption – 1.5A Sensor NTC 10K, 3950ohms at 25℃
Set Point Range –     5~80℃ Accuracy + 1℃ (step control by +0.5℃)
Ambient –     0~50℃ Protection Class – IP30
Relative Humidity – 85% Housing      – ABS to UL94-5 fire retardantplastic

Features

  • Attractive modern styling
  • Adjustable heating/cooling/ventilating mode control
  • Adjustable manual 3-speed and automatic fan speed control
  • 4pipe system
  • Bacnet
  • Keycard(Optional)
  • External sensor(Optional

Display and Keys

  • ON/OFF: presshotowell HTW-31-F10B NT Digital Thermostat  2 to turn device on/off.
  • Modes select: Presshotowell HTW-31-F10B NT Digital Thermostat  3 to adjust between Heat, Cool and Fan mode.
  • Fan Speed Adjust: Presshotowell HTW-31-F10B NT Digital Thermostat  4 icon can change the fan speed among Low-Medium-High-Off-Auto status. When it is OFF, there is no Fan icon appears.
  • Temp Adjust: Presshotowell HTW-31-F10B NT Digital Thermostat  5 can adjust the set-point or parametershotowell HTW-31-F10B NT Digital Thermostat  1

Installer Set-Up Process(ISU)

  • Turn thermostat off first, and then long presshotowell HTW-31-F10B NT Digital Thermostat  6 icon until screen displays.
  • Presshotowell HTW-31-F10B NT Digital Thermostat  3 switch to next parameter configuration
  • Presshotowell HTW-31-F10B NT Digital Thermostat  5 to adjust the value on each parameter menu.
Menu Description Range Default
01 Temperature Offset -8 ℃ ~8℃ 0 ℃
03 Mode select Heat/cool/fan Heat/cool Heat only;

Cool only;

Fan only







Heat/cool/fan

04 Set Point High Limit 5 ℃ ~80℃ 50℃
05 Set Point Low Limit 5 ℃ ~80℃ 5℃
11 Dead Band 0.5 ℃ ~3℃ 1℃
15 Fan status select when reach set-point 0: No stop, working in low speed

1: Stop



0

19 Software Version
21 Bacnet Station id 1~255 1
30 Bacnet MSTP Bandrate 48 : 4800bps

96 : 9600bps 144:14400bps 192: 19200bps

384:  38400bps

768:  76800bps







384

32 Bacnet MSTP Instance ID High-Byte
33 Bacnet MSTP Instance ID Low-Byte

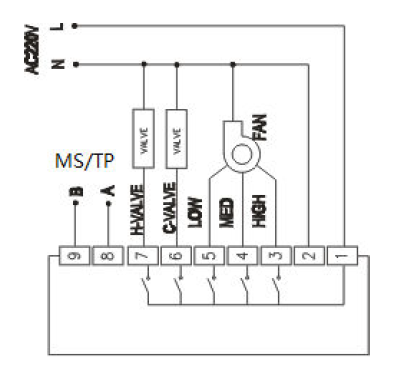

Wiring Diagramhotowell HTW-31-F10B NT Digital Thermostat  7

Object Lists for Various Models

Bacnet MS/TP Thermostats

OBJECT NAME VALUES UNIT OBJECT ID OBJECT TYPE
Set Temperature 5 – 35 C AO0 Analog Output
Room Temperature 5 – 35 C AI0 Analog Input
Operating Mode Cooling /

Heating/Fa n

MO0 Multi-state Output
Fan Speed Auto/L/M/ H MO1 Multi-state Output
Onoff Off/On MO2 Multi-state Output
Relay Status MI1 Multi-state Input
FT-BAC DEVICE Device

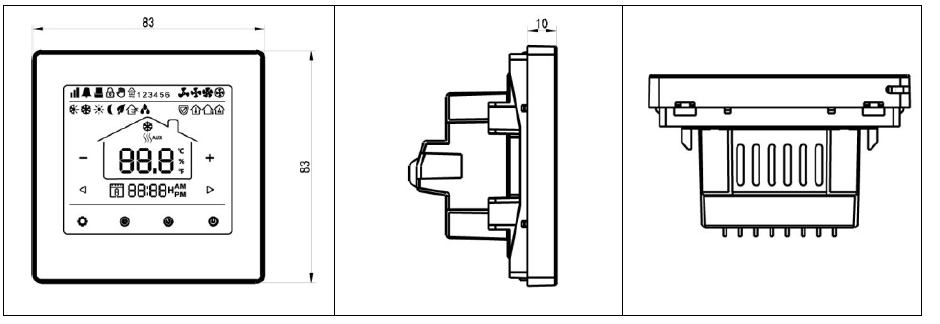

Dimensionshotowell HTW-31-F10B NT Digital Thermostat  8

REFERENCE:
