HONEYWELL HOME T6R Smart Thermostat

HONEYWELL HOME T6R Smart Thermostat pro

Installation Instruction

Turn OFF the power and remove the old thermostat

  • To ensure your safety, always make sure mains power is switched OFF before accessing wiring.
  • In case of removing the old thermostat be aware that the existing wiring will no longer be usedHONEYWELL- HOME- T6R -Smart -Thermostat- fig (1)
  • The T6R-HW thermostat should not be placed near draughts, in direct sunlight or near heat sources

Prepare Receiver Box for installation

Before installation of the Receiver Box
Find a suitable location near to the boiler. Leave at least 30cm distance from any metal objects including wallboxes and boiler housingHONEYWELL- HOME- T6R -Smart -Thermostat- fig (2)

Needed during installation:
Cable with 2 wires from the boiler to Receiver Box. The Receiver Box requires 230V power

Install the Receiver Box

Wall box or Rear Wiring

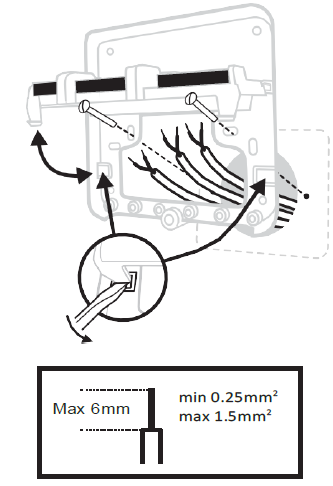

Hinge open the terminal block flap to access the cables and wall box screw holesHONEYWELL- HOME- T6R -Smart -Thermostat- fig (3)

Surface wiring
Use the cable clamps to secure the surface wiring

HONEYWELL- HOME- T6R -Smart -Thermostat- fig (4)

Replace the cover
Locate the hinges at the top of the cover and wall plate, close the cover and secure with the screw

HONEYWELL- HOME- T6R -Smart -Thermostat- fig (5)

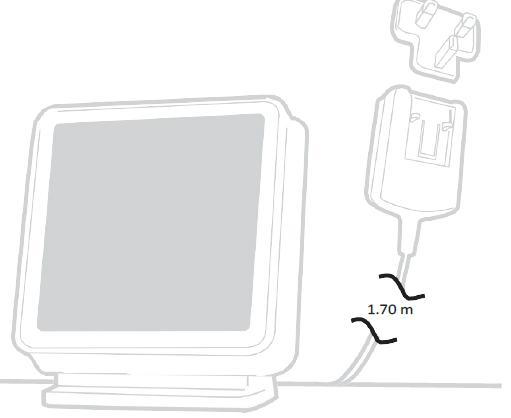

Install the T6R-HW thermostatHONEYWELL- HOME- T6R -Smart -Thermostat- fig (6)..

Complete installation

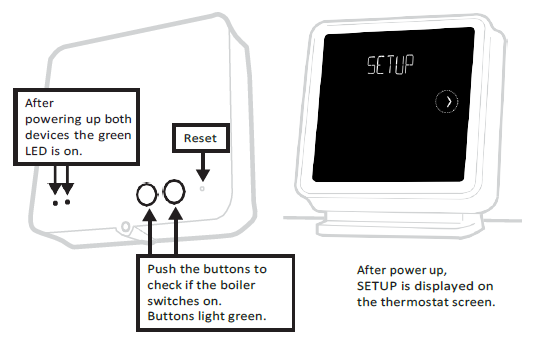

Turn ON mains power to the Heating Appliance and Receiver Box.HONEYWELL- HOME- T6R -Smart -Thermostat- fig (7).

Set Up and Configuration

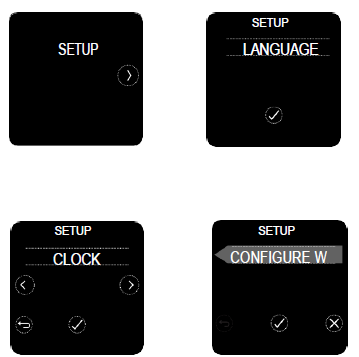

Once setup is completed, if you need to change more settings go to the advanced menu. To access the advanced menu press for 5 seconds.HONEYWELL- HOME- T6R -Smart -Thermostat- fig (8)

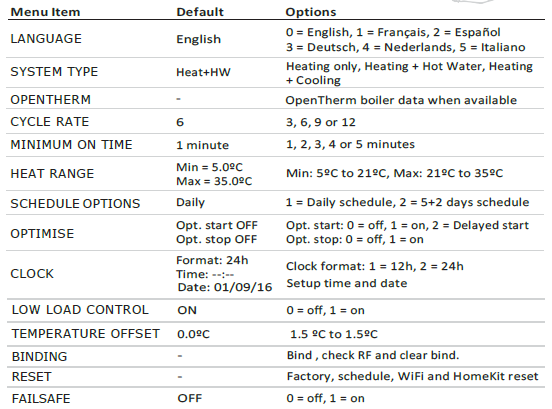

In the advanced menu the following settings can be adjusted:HONEYWELL- HOME- T6R -Smart -Thermostat- fig 11

Wiring DiagramsHONEYWELL- HOME- T6R -Smart -Thermostat- fig (10)

Need help? For assistance please visit: homecomfort.resideo.com
Honeywell Home Control Systems Ltd., Skimped Hill Lane, Bracknell, Berkshire, RG12 1EB

Approvals
Conforms to protection requirements of the following directives: EMC: 2014/30/EU, LVD: 2014/35/EU and RED: 2014/53/EU. Hereby, Honeywell Home, declares that this thermostat is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: http://hwll.co/DoC

  • RF (868MHz): Receiver Category 2, Max RF Power 25mW, 868–868.6MHz (868.3MHz)
  • Wi-Fi (2.4GHz): Max Power 100mW, 2.4–2.458GHz
  • ErP: Class V (+3%), (EU) 811/2013
