Homematic HmIP-eTRV-E Evo-Radiator Thermostat Product Data Sheet

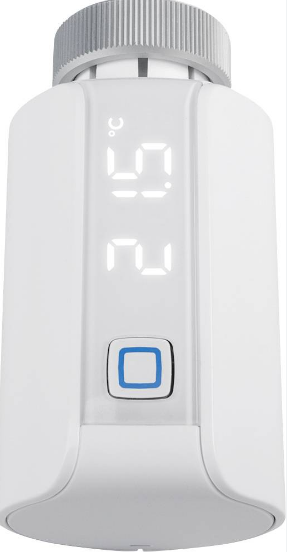

Homematic HmIP-eTRV-E Evo-Radiator Thermostat

Homematic- HmIP-eTRV-E- Evo-Radiator -Thermostat- pro -

Introduction

Evo is an evolution in design and technology in smart radiator thermostats and winner of the Red Dot Design Award [2021]. The smart radiator thermostat combines a modern and simple form with precision, practically noiseless temperature control. Individualised heating profiles and connectivity to window sensors can save more than 33% energy on heating The Homematic HmIP-eTRV-E Evo-Radiator Thermostat is a smart home device designed to enhance the efficiency and convenience of heating systems in residential and commercial spaces. This thermostat is part of the Homematic ecosystem, which is a comprehensive home automation and smart home platform developed by eQ-3, a German company specializing in smart home technology.

Homematic- HmIP-eTRV-E- Evo-Radiator -Thermostat-1

PACKAGE CONTENTS

  • Homematic IP Radiator Thermostat – Evo
  • Adapters Danfoss (RA, RAV and RAVL)
  • Support ring and installation material
  • 1.5 V LR6/mignon/AA batteries (2x)
  • Operating manual

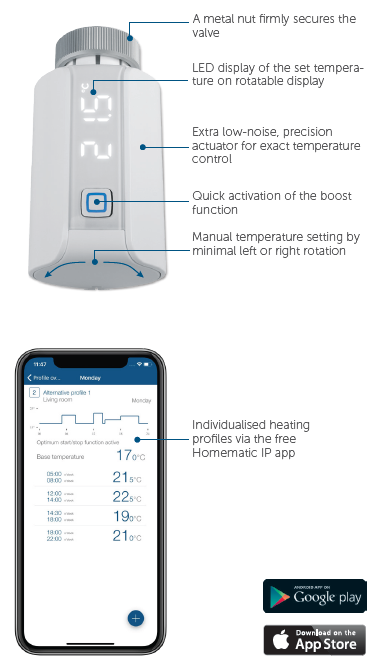

Display

Homematic- HmIP-eTRV-E- Evo-Radiator -Thermostat-2

To enable operation, the device has to be connected with one of the following solutions:

  • Homematic IP Access Point with free
  • smartphone app and free cloud service
  • Third-party partner solutions

TECHNICAL SPECIFICATIONS

  • Supply voltage 2x 1.5 V LR06/Mignon/AA
  • Battery life 2 years (typ.)
  • Degree of protection IP20
  • Ambient temperature 0 to 50 °C
  • Dimensions (W x H x D) 53 x 55 x 94 mm
  • Weight 190 g (including batteries)
  • Radio frequency band
    • 868.0-868.6 MHz
    • 869.4-869.65 MHz
  • Typ. wireless open air range 230 m
  • Threaded connection M30 x 1.5 mm

EASY SAVINGS ON HEATING COSTS
Individualised temperature profiles are easy to create using the app – with up to 3 customisable heating profiles and 13 changes per day. This means that heating only takes place when warmth is needed. Any open windows and doors are detected via an open-window-detection function or even more precisely in combination with a Homematic IP Door / Window Contact. Heating temperatures are automatically lowered so that no energy is wasted.

FEEL-GOOD TEMPERATURES ANYTIME
Room temperature is controlled according to user need: easily via the app – at home or while on the go – using the device or by voice control (via Amazon Alexa or Google Assistant).

MODERN DESIGN AND OPTIMAL OPERATION
A white backlit LED display means set temperatures are very easy to read. The display is on during operation and can be rotated to the left or right depending on installation. The minimalist and elegant housing design makes the high-quality radiator thermostat perfect for any interior look.

QUICK AND EASY TO INSTALL
High-quality metal union nut for secure mounting on all common M30 threaded radiator valves. Installationis quick and easy with no need to interfere with heating system or drain water.

OTHER FEATURES
Very quiet operation for use in bedrooms Boost function for quick room heating Eco mode for energy-saving operation with reducedroom temperatures Valve protection function against calcification Operating lock prevents unintentional operation

LOGISTICAL DATA

  • Product reference 155105A0
  • EAN code 4047976551057
  • Short description HmIP-eTRV-E
  • Packing unit 45
  • Packing dimensions 122 x 112 x 97 mm
  • Weight incl. packaging 359,9 g

REFERENCE

DOWNLOAD MANUALS:

Homematic HmIP-eTRV-E Evo-Radiator Thermostat Product Data Sheet

Homematic HmIP-eTRV-E Evo-Radiator Thermostat Product Data Sheet
