Homematic -105155- Wireless- Radiator -Thermostat  - FEA

Homematic HmIP-eTRV-2 SMART Wired Thermostat Product Data Sheet

Homematic logo

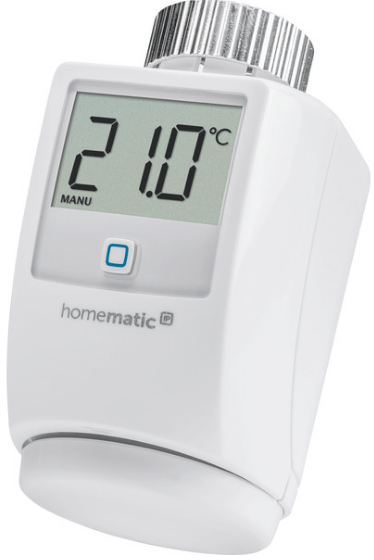

Homematic HmIP-eTRV-2 SMART Wired Thermostat

Homematic -HmIP-eTRV-2- SMART- Wired- Thermostat- pro

Introduction

The smart Homematic IP Radiator Thermostat saves up to 33% on energy thanks to individual heating profiles and connected window contacts. This reduces heating costs, lowers CO2 emissions and provides comfortable temperatures for your smart home

Homematic -HmIP-eTRV-2- SMART- Wired- Thermostat- 1

PACKAGE CONTENTS

  • Homematic IP Radiator Thermostat
  • Adapters Danfoss (RA, RAV and RAVL)
  • Support ring and mounting material
  • 1.5 V LR6/mignon/AA batteries (2x)
  • User manual

DisplayHomematic -HmIP-eTRV-2- SMART- Wired- Thermostat- 2

To enable operation, the device has to be connected with one of the following solutions:

  • Homematic IP Access Point with free smartphone app and free cloud service
  • Third-party solutions of partners

TECHNICAL SPECIFICATIONS

  • Supply voltage 2x 1.5 V LR6/mignon/AA
  • Battery life 2 years (typ.)
  • Degree of protection IP20
  • Ambient temperature 0 to 50 °C
  • Dimensions (W x H x D) 58 x 71 x 97 mm
  • Weight 205 g (incl. batteries)
  • Radio frequency band 868.0-868.6 MHz 869.4-869.65 MHz
  • Typical open area RF range 300 m
  • Threaded connection M30 x 1.5 mm

SAVE HEATING COSTS
Individual temperature profiles are easily created via app – with up to 3 adjustable heating profiles and 13 changes per day. In this way, heating is carried out only if necessary. And during ventilation, the room temperature is automatically lowered thanks to the open-window function.

COMFORT TEMPERATURE AT ALL TIMES
The room temperature is controlled according to the individual needs of the user: simply via app, whether at home or on the road, directly on the device using the control wheel or conveniently via voice control (via  Amazon Alexa or Google Assistant).

OPEN-WINDOW DETECTION
The Homematic IP Window and Door Contact offers exact detection of open windows and doors. The room temperature is automatically reduced to avoid any waste of energy.

SECURE AND EASY INSTALLATION
High-quality metal nut for secure installation to standard radiator valves with M30 thread size. Quick and easy installation without having to drain any water or intervening in the heating system.

MANY ADDITIONAL FUNCTIONS
Whisper mode for quiet operation even in bedrooms Boost function for quick heating of rooms Eco mode for energy-saving operation with reduced room temperature Valve protection function against calcification of the valve To enable operation, the device has to be connected Operating lock against unauthorised operation

LOGISTICAL DATA

  • Product reference 140280A0
  • EAN code 4047976402809
  • Short description HmIP-eTRV-2
  • Packing unit 45
  • Packing dimensions 122 x 112 x 97 mm
  • Weight incl. packaging 338.6 g

REFERENCE
