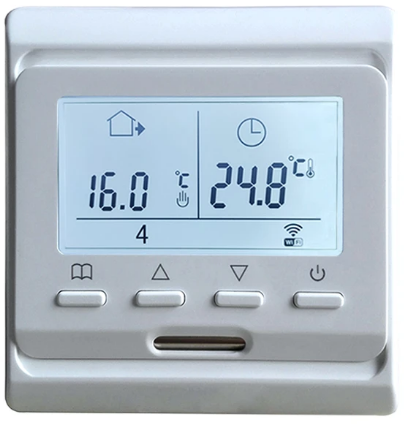

HIWELL M6.716 Programmable Heating Room Thermostat

Specification

• Warranty: 2 years
• Material: Anti-flammable PC +ABS
• Place of Origin: Zhejiang, China
• Model Number: M6.716
• Floor Heating Part Type: Floor Heating Thermostats
• After–sale Service: Online technical support
• Brand Name: HIWELL
• Type: Floor Heating Parts

Introduction

The HIWELL M6.716 Programmable Heating Room Thermostat is a digital thermostat designed for use with heating systems in residential and commercial buildings. It features a large LCD screen that displays the current temperature, as well as the temperature set point and the current time. The HIWELL M6.716 can be programmed to automatically adjust the temperature according to a user-defined schedule, with up to six temperature changes per day. It also has a manual override function that allows users to adjust the temperature as needed. The HIWELL M6.716 is compatible with a variety of heating systems, including gas boilers, electric heating systems, and radiant heating systems. It is easy to install and operate, making it a popular choice for homeowners and building managers looking to improve the energy efficiency of their heating systems. The M6 thermostat is used to manage temperature using an NTC sensor that is either externally or internally mounted and has a 2-position control with an on/off output.
The thermostat measures the actual temperature with a built-in sensor or a floor sensor, and when the room temperature drops below the setpoint, the heating contact will close.

What Is In The Box

• Thermostat
• User manual
• Screws
• External sensor

Application
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…

Features

• 7-day programmable function for energy-saving operation
• On/off control output for the heating device
• Symbol indicator when heating is on
• Mechanical switch key for power supply
• Temperature limitation function for protecting the floor
• 7-day time maintenance in the event of a power failure
• Large-size LCD display for better readout
• Key-lock” function for protecting the setted parameters (especially suitable for Public places)

How To Work

• Press the “MODE” button to select the desired operating mode: “Manual,” “Program,” or “Vacation.”
• In “Manual” mode, use the “TEMP” buttons to adjust the temperature setting up or down as desired.
• In “Program” mode, use the “PROG” button to enter the programming mode, and then use the “DAY” button to select the day of the week you want to program.
• Use the “TIME” button to set the time and use the “TEMP” button to set the temperature for each time period.
• Use the “PROG” button to save each program and move on to the next day, until all days are programmed as desired.
• In “Vacation” mode, use the “TEMP” buttons to set the desired temperature for the duration of your absence.
• Press the “RUN/STOP” button to activate or deactivate the programmed temperature schedule or vacation mode.
• Use the “TEMP” buttons to manually adjust the temperature up or down as desired in any mode.
• The HIWELL M6.716 thermostat has a backlight function that can be activated by pressing any button on the thermostat, making it easy to read in low light conditions.
• Enjoy the benefits of an energy-efficient heating system with the HIWELL M6.716 Programmable Heating Room Thermostat.

Installation

• Turn off the power to your heating system at the circuit breaker.
• Remove the old thermostat from the wall. If there are wires connected to the thermostat, label them with the appropriate terminal letter.
• Install the mounting plate for the HIWELL M6.716 on the wall. Use the screws provided in the package.
• Connect the wires from your heating system to the appropriate terminals on the HIWELL M6.716. Refer to the wiring diagram in the user manual for guidance.
• Snap the HIWELL M6.716 onto the mounting plate.
• Insert two AAA batteries into the battery compartment on the back of the thermostat.
• Turn on the power to your heating system at the circuit breaker.
• Follow the instructions in the user manual to set up the HIWELL M6.716, including setting the date and time, programming the temperature schedule, and adjusting the temperature as needed.
• Test the thermostat by setting the temperature to a desired level and verifying that the heating system turns on and off as expected.
• Enjoy the benefits of an energy-efficient heating system with the HIWELL M6.716 Programmable Heating Room Thermostat.

Technical data

• Voltage: AC230V
• Power consumption: 2W
• Setting range: 5-50 (factory setting: 5-35)
• Limitation range: 4-99 (factory setting: 28-32)
• Switching differential: ‡0.5K
• Ambient temperature: -5-50
• Protective housing: IP20
• Housing material: self-extinguishing PC
• Floor sensor: rubber-thermoplastic NTC sensor, cable length is 3m

FAQS

Q: What is the HIWELL M6.716 programmable heating room thermostat?
A: The HIWELL M6.716 is a digital thermostat designed for use with heating systems in residential and commercial buildings.

Q: What type of screen does the thermostat have?
A: The HIWELL M6.716 features a large LCD screen that displays the current temperature, as well as the temperature set point and the current time.

Q: How many temperature changes can the thermostat make per day?
A: The HIWELL M6.716 can make up to six temperature changes per day, according to a user-defined schedule.

Q: Does the thermostat have a manual override function?
A: Yes, the HIWELL M6.716 has a manual override function that allows users to adjust the temperature as needed.

Q: Is the HIWELL M6.716 programmable for different days of the week?
A: Yes, the HIWELL M6.716 can be programmed for different days of the week, with different schedules for weekdays and weekends.

Q: Is the HIWELL M6.716 compatible with different types of heating systems?
A: Yes, the HIWELL M6.716 is compatible with a variety of heating systems, including gas boilers, electric heating systems, and radiant heating systems.

Q: Is the HIWELL M6.716 easy to install?
A: Yes, the HIWELL M6.716 is easy to install and can be done by the user.

Q: Does the HIWELL M6.716 have a vacation mode?
A: No, the HIWELL M6.716 does not have a specific vacation mode, but the user can set a temperature for the days they are away.

Q: Does the HIWELL M6.716 have a backlight for easy reading in low-light conditions?
A: Yes, the HIWELL M6.716 features a backlight for easy reading in low-light conditions.

Q: Is the HIWELL M6.716 energy-efficient?
A: Yes, the HIWELL M6.716 is designed to improve the energy efficiency of heating systems by allowing users to program temperature changes according to their schedule.

Q: Can the HIWELL M6.716 be locked to prevent unauthorized changes?
A: Yes, the HIWELL M6.716 can be locked to prevent unauthorized changes to temperature settings.

Q: Is the HIWELL M6.716 compatible with a smartphone app?
A: No, the HIWELL M6.716 does not have Wi-Fi connectivity and is not compatible with a smartphone app.

Q: Is the HIWELL M6.716 suitable for use in both residential and commercial buildings?
A: Yes, the HIWELL M6.716 is suitable for use in both residential and commercial buildings.

Q: Does the HIWELL M6.716 come with a user manual?
A: Yes, the HIWELL M6.716 comes with a user manual that provides instructions for installation and operation.

Q: Does the HIWELL M6.716 require batteries?
A: Yes, the HIWELL M6.716 requires two AAA batteries for operation.
