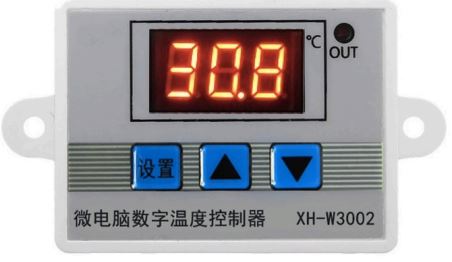

Hexa CONTROL XH-W3002 TEMPERATURE CONTROL THERMOSTAT
SPECIFICATION
| Housing Meterial | Plastic (IP22) |
| Temperature Range | -50 … 110 °C |
| Working Mode | Heating and Cooling |
| Temperature Accuracy | 0.2 °C |
| Measuring Accuracy | 0.1 °C |
| Input Measurement | NTC 10K, 1 meter waterproof probe |
| Input Power Suply | 12V DC / 24V DC / 230V AC |
| Output Power | 120W, Direct 2 point On/Off output |
| Output Current | Max. 10A |
| Size | 60X45X31mm |
| Mounting | DIN-Rail / Wall Surface |
| Models | Power Supply |
| XH-W3002-12 | 12 VDC |
| XH-W3002-24 | 24 VDC |
| XH-W3002-230 | 230 VAC |
SETTING
- When connect to power supply, press the UP and DOWN buttons at the same time more than 3 seconds, display show 888
- If display LLL. means the sensor is fault, need to check the sensor.
- If displat HHH, means the temperature is above the range
- Display always shows the real-time temperature
- Start temperature < Termination temperature will be Heating mode
- Start temperature > Termination temperature will be Cooling mode
P0: Set Start temperature
Press the setting button, enter the internal menu, the default display for the P0, and then click the settings button, use up and down buttons to set the starting temperature.
P1: Set stop temperature
Press the setting button, enter the internal menu, the default display for the P0, use up and down button to change to P1, and then press the settings button, use up and down buttons to set the starting temperature
P2: Set temperature calibration
Press the setting button, enter the internal menu, use up and down buttons to change to P2, press the set button again, use the up and down button to do the calibration.
If the detetion temperature is above the actual temperature of 0.5°C, need to set the calibration temperature is 0.5°C
If the detetion temperature is below the actual tempeature of 1°C, need to set the calibration temperature 1°C
P3: Set delay start
Press the setting button, enter the internal menu, use up and down buttons to change to P3, press the set button again, use the up or down button to set delay time( Minutes ).
To control a water heater, heated water to 65 degrees to stop, when the temperature dropped to 50 degrees to start heating again
The first step: Determine the working mode for the heating mode, start the temperature
The second step: Long press “up” button, start temperature digital flash, set the starting temperature of 50 degrees
The third step: long press the “down” button to terminate the temperature digital flashing, set termination temperature of 65 degrees.
When setting the heating mode, if the set temperature value is set to the opposite, the output indicator will not light, the load will not work. If the above situation occurs after setting, you can check whether the set temperature value has the opposite.

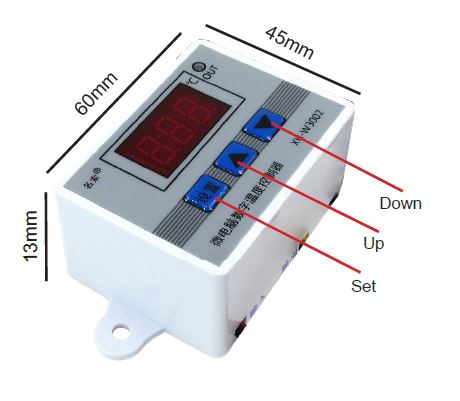

DIMENSION

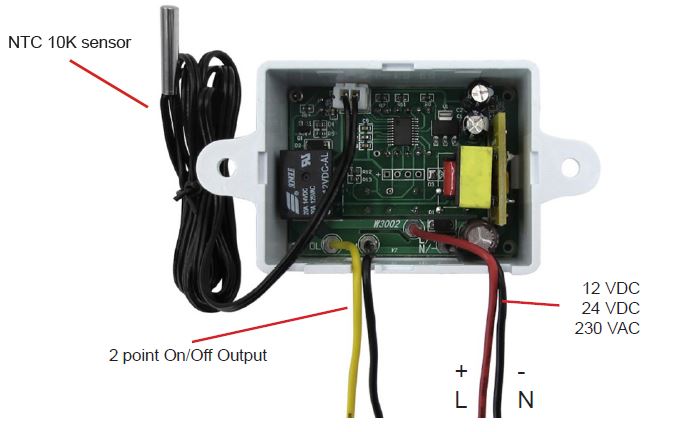

OVERVIEW
