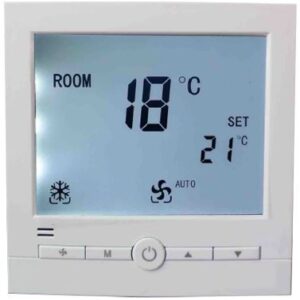

Hexa CONTROL RT226-M22 FAN COIL Thermostat

Features

The “RT226-M” series thermostats are ModBus communication microprocessor-based thermostats with LCD display. The thermostats are designed to on/off control the fans, valves, dampers or in fan coil units, air-conditioners, and heating applications. Models are available for heating/cooling / ventilating control of 2-pipe fan coil units. Fan speed can be manually controlled by the fan speed control push button. It is wired to run high/medium/low speed continuously or to automatically change the fan speed, while with other models there is a choice of running the fan continuously or cycling it with the thermostat.

Specification

• Part Number: RT226-M22
• Power Source :230V AC, 50/60Hz
• Setting Range:10 ~ 35°C
• Accuracy:±1°C
• Load Current:2A (fan output), 0,5A (valve output)
• Valve Control:2-point actuator On/Off control
• Fan Control:3-speed (H/M/L) thermostatic fan control
• Color: White
• Installation: Flush mounting
• Dimensions:86×86×18mm
• Warranty:2 years
• Certificates: CE and ISO9001
• Country of Origin: People’s Republic of China (PRC)

RT226-M32

• Part Number: RT226-M32
• Power Source:230V AC, 50/60Hz
• Setting Range:5 ~ 35°C
• Accuracy:±0,5°C
• Load Current:2A (fan output), 0,5A (valve output)
• Valve Control:2 point actuator On/Off control
• Fan Control:3 speed (H/M/L) thermostatic fan control
• Color: White
• Installation: Flush mounting
• Dimensions:86×86×18mm
• Warranty:2 years
• Certificates:CE and ISO9001
• Country of Origin :People Republic of China (PRC)
