Hexa CONTROL RT226-G22 FAN COIL Thermostat Product Data Sheet

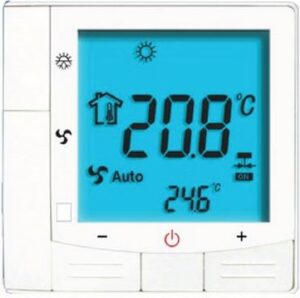

Hexa CONTROL RT226-G22 FAN COIL Thermostat

Features

The “RT226-G” and “RT226-H” series thermostats are ModBus communication microprocessor-based thermostats with LCD displays.
The thermostats are designed to on/off control the fans, valves, dampers or in fan coil units, air-conditioners, and heating applications. Models are available for heating/cooling / ventilating control of 2-pipe or 4-pipe fan coil units. Fan speed can be manually controlled by the fan speed control pushbutton. It is wired to run high/medium/low speed continuously or to automatically change the fan speed, while with other models there is a choice of running the fan continuously or cycling it with the thermostat.

SPECIFICATION

• Model: RT226-G22
• Power Source:230V AC, 50/60Hz
• Setting Range:5 ~ 35 °C (heat / cool mode)
• Accuracy:±0,5 °C
• Load Current:2A (fan output), 0.5A (valve output)
• Valve Control:2 or 3-point actuator On/Off control
• Fan Control:3-speed (H/M/L) thermostatic fan control
• Color: White
• Installation: Flush mounting
• Dimensions:86X86X15mm
• Warranty:2 years
• Certificate: CE and ISO9001
• Country of Origin: People’s Republic of China (PRC)

RT226-H24

• Model: RT226-H24
• Power Source:230V AC, 50/60Hz
• Setting Range:5 ~ 35°C (heat / cool mode)
• Accuracy: speed (H/M/L) thermostatic fan control
• Load Current:±1°C
• Valve Control:2A (fan output), 0.5A (valve output)
• Fan Control:2 point actuator On/Off control
• Color: White
• Installation: Flush mounting
• Dimensions:86X86X15mm
• Warranty:2 years
• Certificates:CE and ISO9001
• Country of Origin: People Republic of China (PRC)
